Levelling foot PA, Ø 83 mm, M20 x 225 mm Stainless steel, Drills, NBR
Discover our durable Levelling Foot made of high-quality Polyamide and Stainless Steel. With an articulated screw for adjustable support, it withstands static loads up to 20,000 N and features anti-slip NBR for enhanced stability. Perfect for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€16.11*
|
| From 5 |
€14.40*
|
| From 15 |
€12.86*
|
| From 50 |
€12.60*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 225 |
| Balancing angle: | 4° |

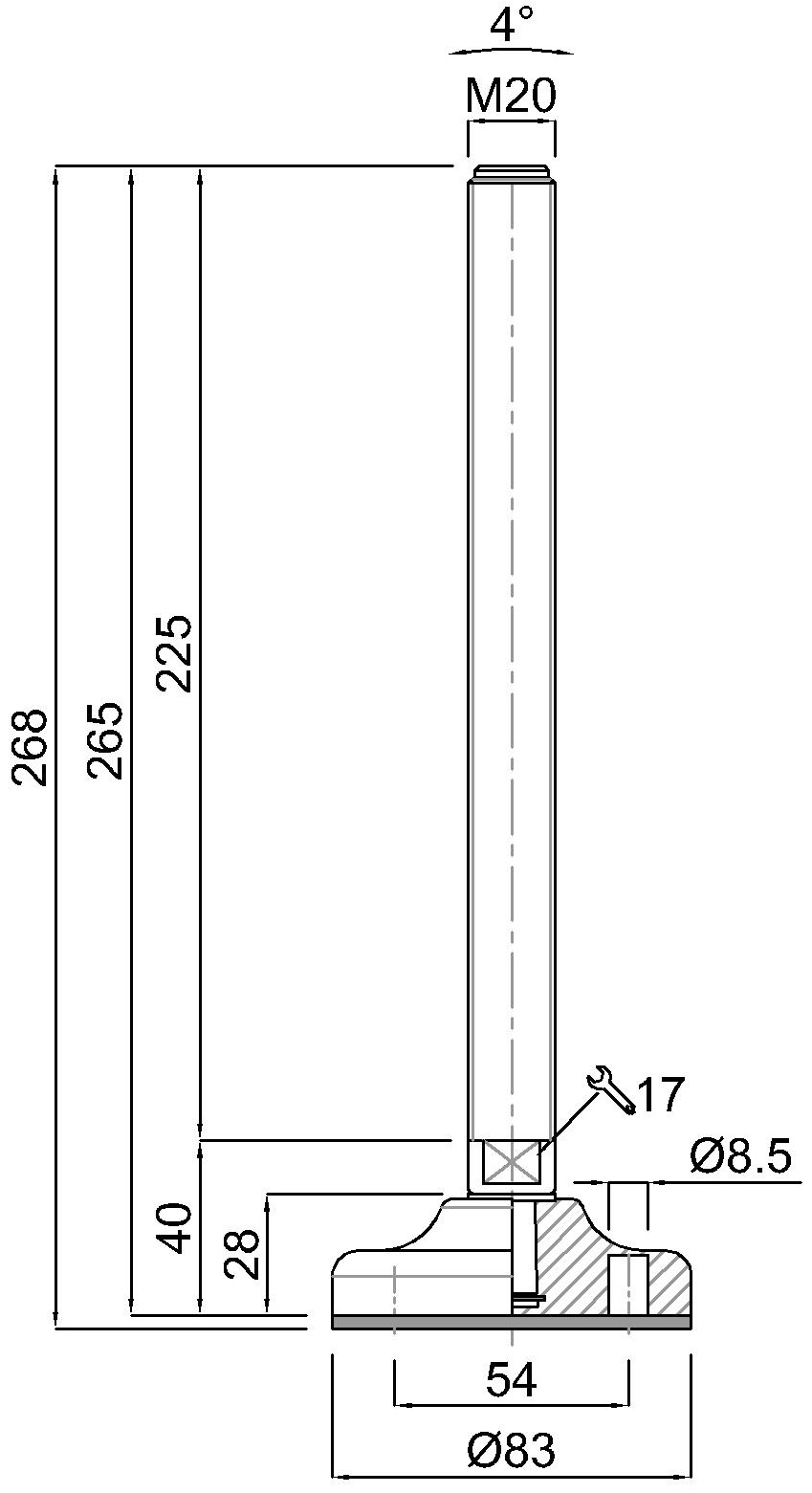

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
