Levelling foot PA, Ø 83 mm, M20 x 200 mm Stainless steel, Drills, NBR
Enhance stability and precision with our 83 mm diameter Levelling Foot. Crafted from stainless steel and durable polyamide, it supports static loads up to 20,000 N, featuring an articulated screw for precise adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€14.59*
|
| From 5 |
€13.04*
|
| From 15 |
€11.64*
|
| From 50 |
€11.41*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 4° |
| Hygiene: | No |

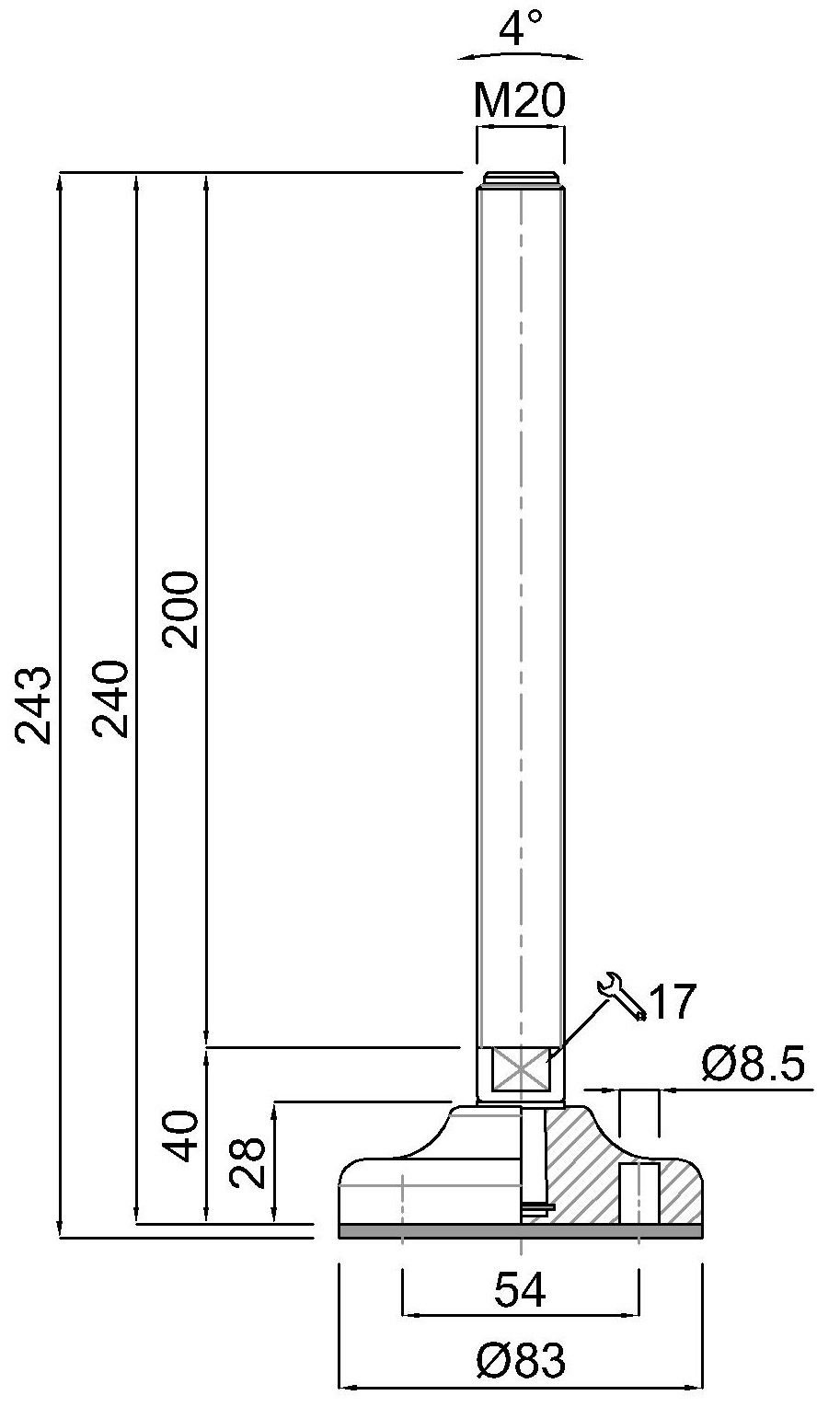

Technical drawing
