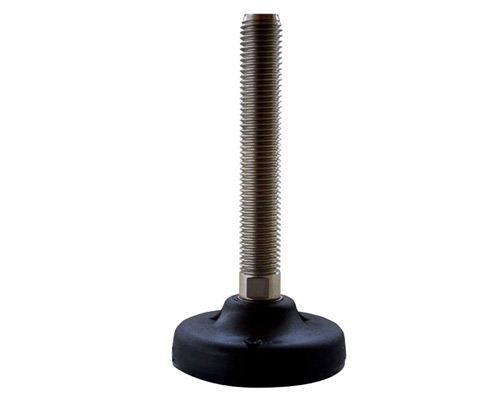

Levelling foot PA, Ø 83 mm, M20 x 100 mm Stainless steel, Drills

4061408105199
45812690

Discover our durable Levelling Foot in polyamide, featuring a stainless steel spindle. With a static load capacity of 20,000 N and articulated adjustment, it's perfect for precision equipment stability.

  • Robust polyamide base plate with a diameter of 83 mm, providing excellent stability and durability under load.
  • Stainless steel spindle measuring M20 x 100 mm, ensuring resistance to corrosion and environmental factors.
  • Total height of 140 mm and adjustable articulated screw for precise leveling at a 4° angle.
  • Capable of supporting a static load of up to 20,000 N, making it ideal for heavy-duty applications.
  • Equipped with two bore holes of Ø 8.5 mm for reliable floor attachment and easy installation.
Quantity Price
From 1
€9.42*
From 5
€8.42*
From 15
€7.52*
From 50
€7.36*

Currently sold out, Refill time: 5 days

€9.42* / piece
Our payment methods:

Product properties


Footplate material: Plastic
Anti-slip: No
Ø range base plate (mm): 71-90
Ground fastening: 2 mounting holes
Vibration damping: No
Material spindle: Stainless steel
Ø spindle (mm): 20
Spindle length (mm): 100
Balancing angle:
Hygiene: No

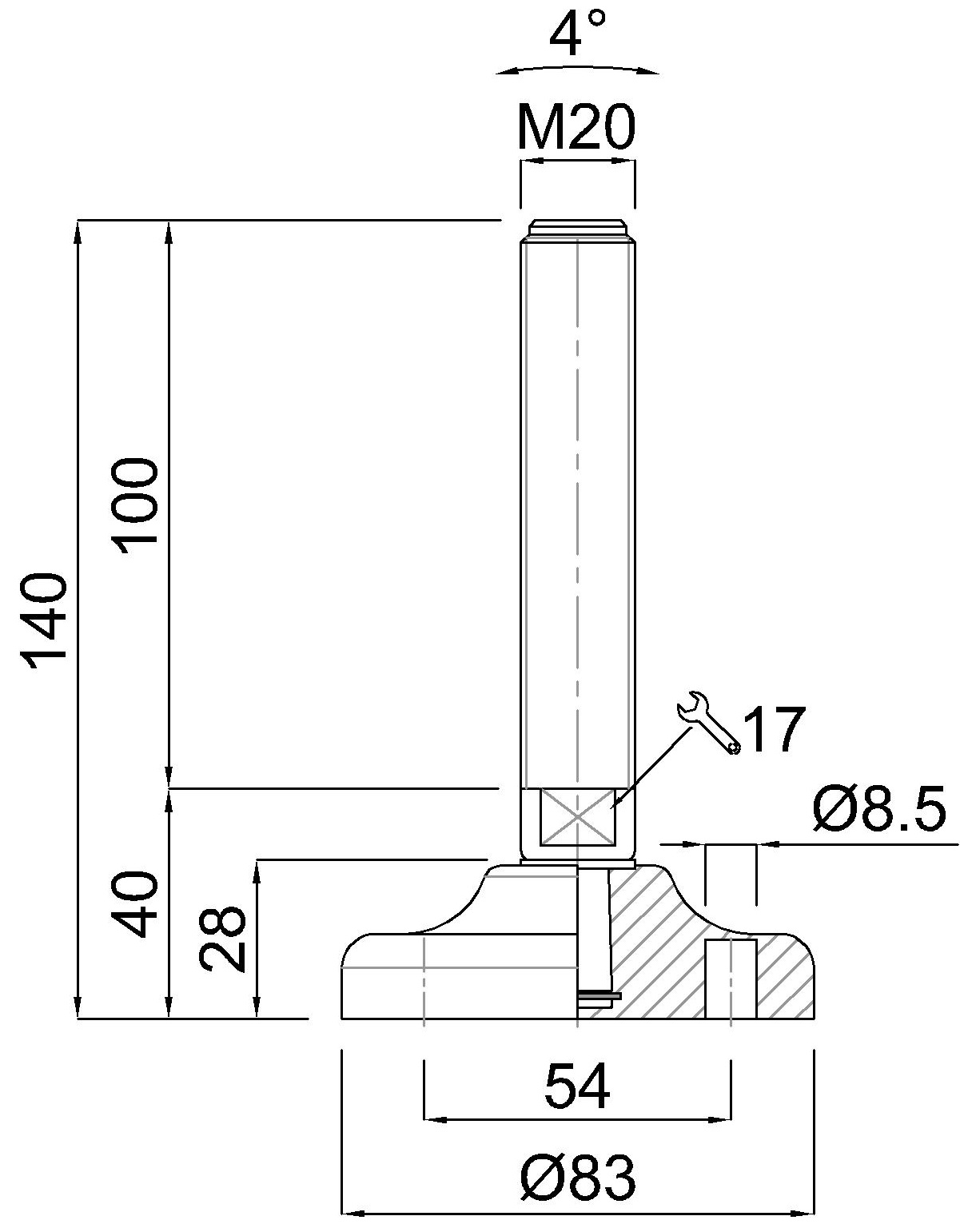

Levelling foot Polyamide, Ø 83 mm, M20 x 100 mm, Stainlees steel, Total height 140 mm, Articulated screw 4°, Bore holes Ø 8,5 mm, Static load 20.000 N
