Levelling foot PA, Ø 83 mm, M20 x 200 mm Stainless steel, Drills

4061408105175
45812698

Enhance your engineering projects with our durable Levelling Foot, featuring a robust stainless steel spindle and polyamide base. Ideal for precise adjustments, it supports a static load of 20,000 N.

  • High load capacity of up to 20,000 N, ensuring stability in demanding environments
  • Robust stainless steel spindle (M20 x 200 mm) for enhanced durability and corrosion resistance
  • Articulated screw design with a 4° adjustment angle, allowing for precise leveling on uneven surfaces
  • Polyamide foot plate (Ø 83 mm) provides excellent wear resistance and can accommodate a diameter range of 71-90 mm
  • Easy installation with two bore holes (Ø 8.5 mm) for secure ground attachment
Quantity Price
From 1
€13.67*
From 5
€12.21*
From 15
€10.91*
From 50
€10.69*

Currently sold out, Refill time: 5 days

€13.67* / piece
Our payment methods:

Product properties


Footplate material: Plastic
Anti-slip: No
Ø range base plate (mm): 71-90
Ground fastening: 2 mounting holes
Vibration damping: No
Material spindle: Stainless steel
Ø spindle (mm): 20
Spindle length (mm): 200
Balancing angle:
Hygiene: No

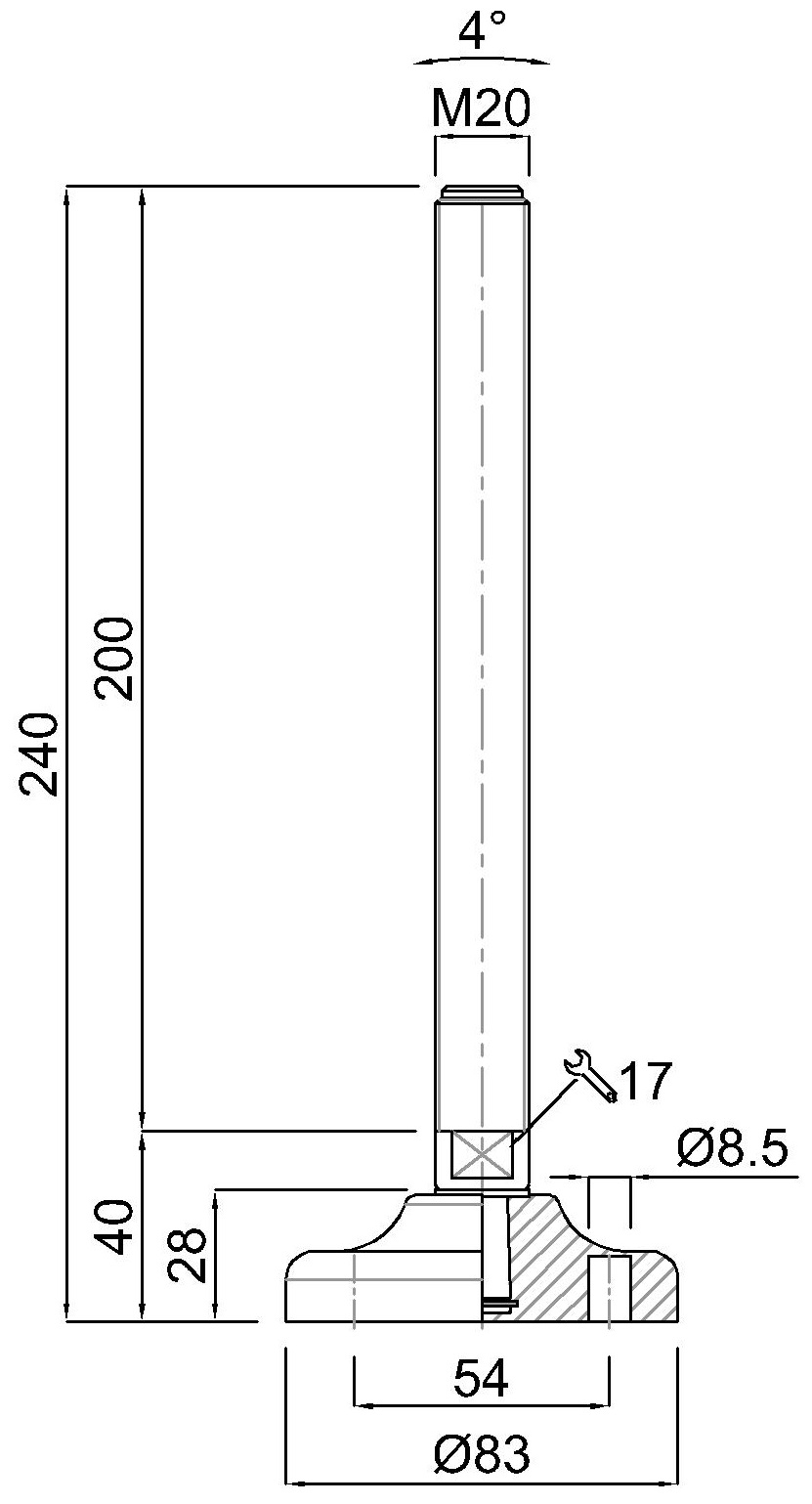

Levelling foot Polyamide, Ø 83 mm, M20 x 200 mm, Stainlees steel, Total height 240 mm, Articulated screw 4°, Bore holes Ø 8,5 mm, Static load 20.000 N
