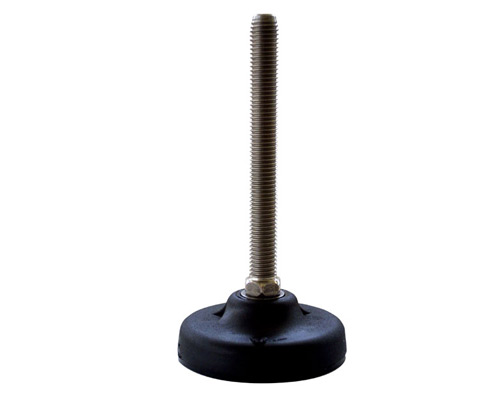

Levelling foot PA, Ø 83 mm, M14 x 50 mm Stainless steel, Drills, NBR

EAN 4061408105076

Type 45812631

Optimize your equipment stability with our 83 mm diametral levelling foot, featuring a durable stainless steel spindle and NBR anti-slip base, supporting static loads up to 20,000 N.

Robust construction with a polyamide base and stainless steel spindle, ensuring durability and resistance to corrosion.
Adjustable levelling foot with a total height of 89 mm, accommodating uneven surfaces with an articulated screw design allowing a 4° angle.
High static load capacity of 20,000 N, making it suitable for heavy-duty applications in industrial environments.
Anti-slip NBR rubber on the base prevents movement and provides stability, enhancing safety and reliability.
Two bore holes (Ø 8.5 mm) for easy ground mounting, facilitating straightforward installation and optimal securing.

Quantity	Price
From 1	€7.48*
From 5	€6.69*
From 15	€5.97*
From 50	€5.85*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€7.48* / piece

Our payment methods:

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	14
Spindle length (mm):	50
Balancing angle:	4°

Product description

Levelling foot Polyamide, Ø 83 mm, M14 x 50 mm, Stainlees steel, Total height 89 mm, Articulated screw 4°, Bore holes Ø 8,5 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
