Levelling foot PA, Ø 123 mm, M20 x 200 mm Stainless steel, Drills, NBR

EAN 4061408075461

Type 45812859/20

Optimize your applications with our high-performance Levelling Foot, featuring a durable stainless steel spindle and NBR anti-slip base, capable of withstanding static loads up to 40,000 N.

High load capacity of 40,000 N, ensuring robust support for various applications
Constructed from durable polyamide and stainless steel for maximum longevity and corrosion resistance
Adjustable screw angle of 4° allows for precise leveling on uneven surfaces
Features two bore holes with a diameter of 12.5 mm for secure ground attachment
Antislip NBR material provides stability and prevents slippage during operation

Quantity	Price
From 1	€18.93*
From 5	€16.92*
From 15	€15.11*
From 50	€14.80*

Currently sold out, Refill time: 5 days

€18.93* / piece

Our payment methods:

Accessories

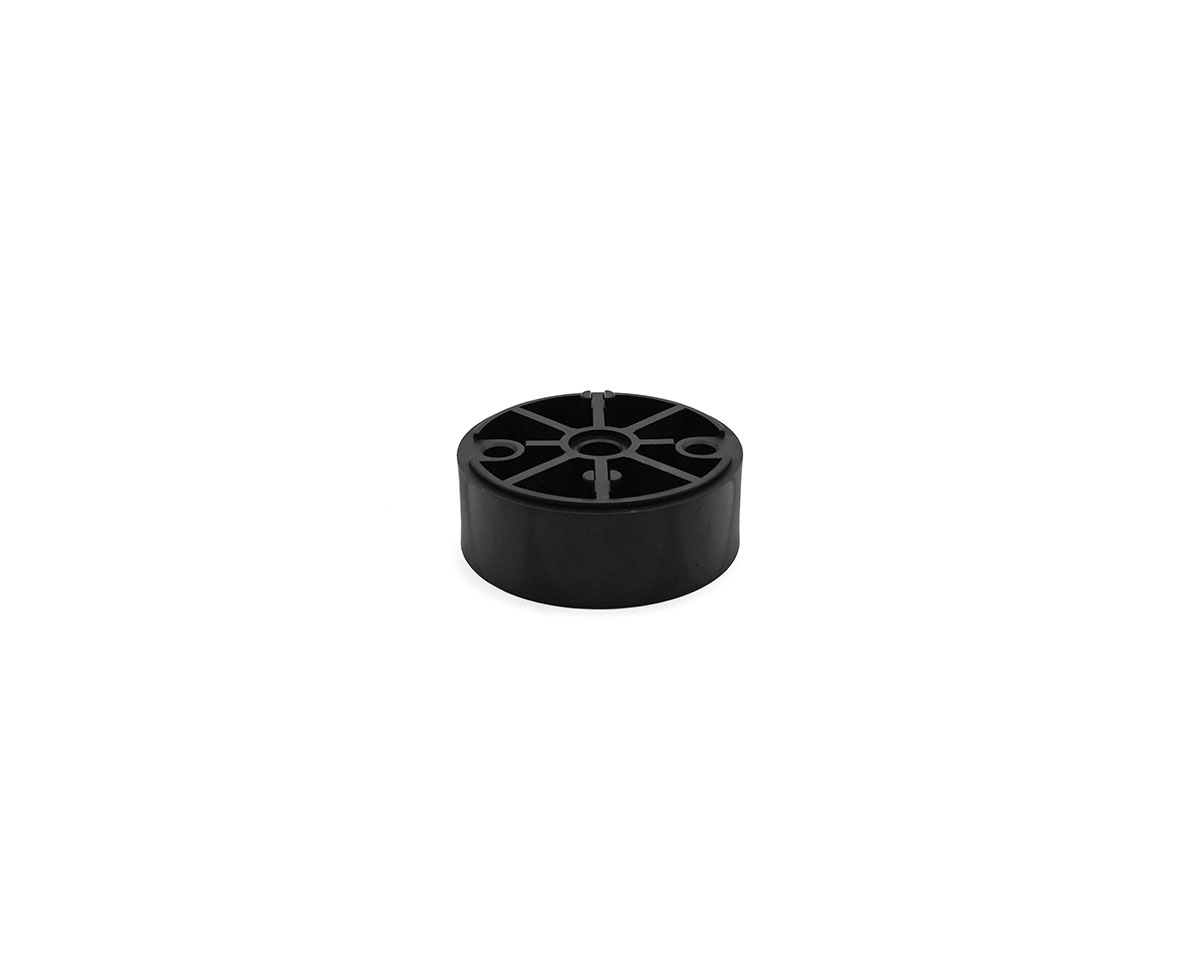

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	200
Balancing angle:	4°

Product description

Levelling foot Polyamide, Ø 123 mm, M20 x 200 mm, Stainlees steel, Total height 253 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 40.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
