Levelling foot PA, Ø 65 mm, M16 x 100 mm Stainless steel, NBR
Ensure stability with our 65 mm diameter levelling foot, crafted from durable polyamide and stainless steel. Features an articulated screw for up to 30° adjustment and a static load capacity of 15,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€7.05*
|
| From 5 |
€6.30*
|
| From 15 |
€5.63*
|
| From 50 |
€5.51*
|
59 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

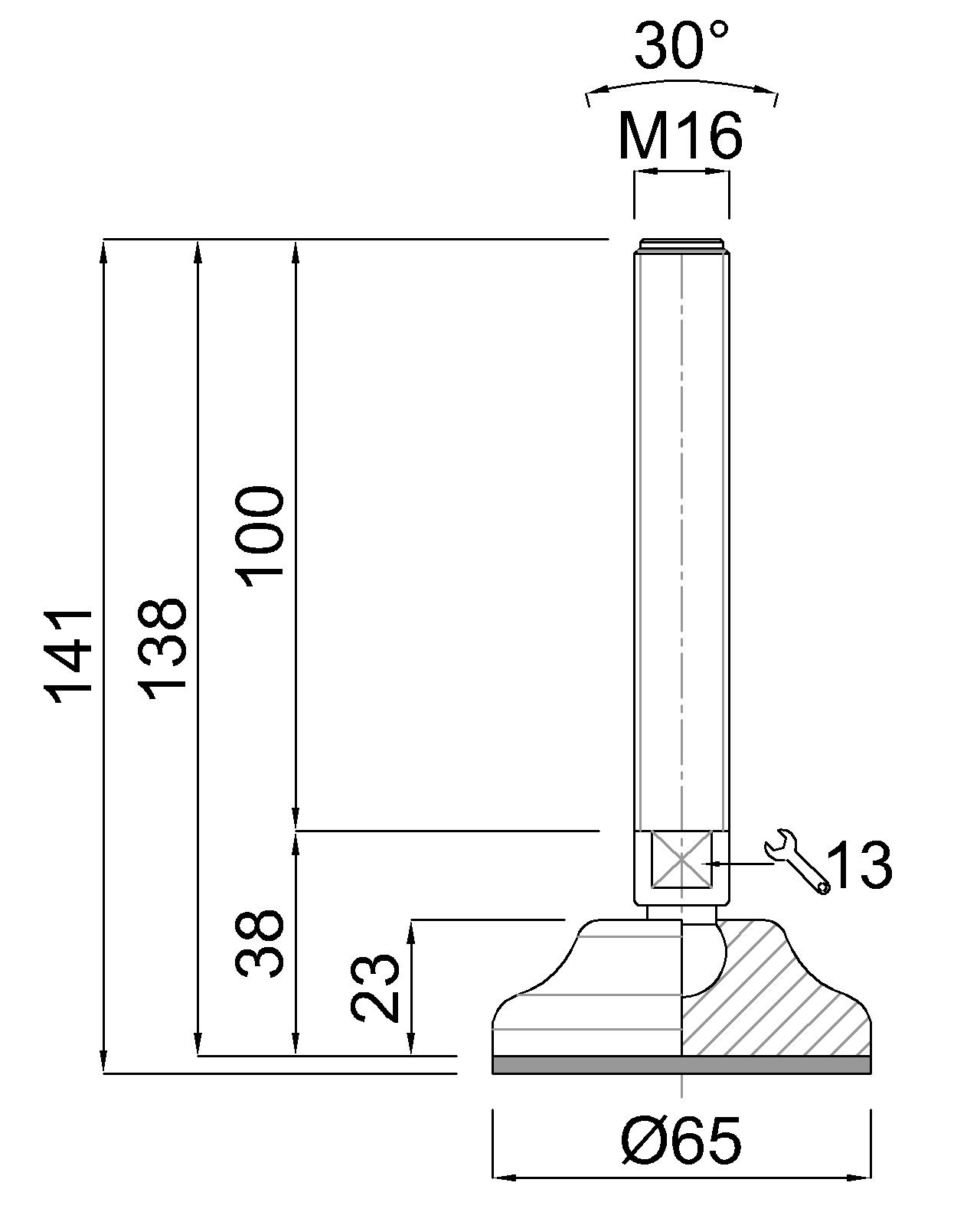

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
