Levelling foot PA, Ø 83 mm, M12 x 100 mm Stainless steel, Drills, NBR

EAN 4061408014750

Type 45810079/12

Optimize your equipment stability with our Ø 83 mm Levelling Foot, crafted from durable polyamide and stainless steel. Ideal for heavy loads, featuring an articulated screw for precision adjustments and anti-slip NBR base.

Durable polyamide construction for enhanced stability and longevity
Stainless steel spindle with a diameter of 12 mm ensures excellent strength and corrosion resistance
Adjustable height with a maximum total height of 141 mm, accommodating various applications
Anti-slip NBR base provides superior grip and minimizes movement, supporting a static load of up to 15,000 N
Articulated screw design with a 30° adjustment angle for precise leveling in uneven surfaces

Quantity	Price
From 1	€7.60*
From 5	€6.79*
From 15	€6.06*
From 50	€5.94*

*Prices excl. VAT plus shipping costs

35 on stock, Refill time: 5 days

€7.60* / piece

Our payment methods:

Accessories

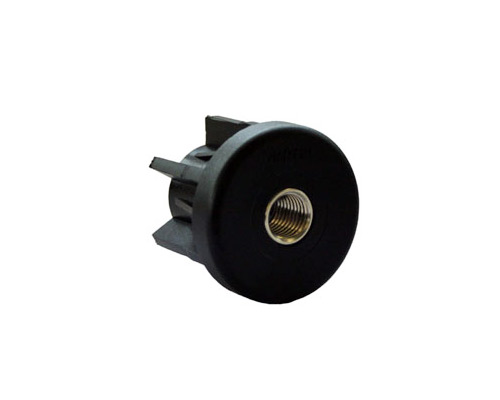

Round plug polyamide Ø 42, M12, stainless steel insert

Type No.: 45817009I

From €5.21*

Square plug polyamide 40 x 40, M12, stainless steel insert

Type No.: 45817044I

From €5.21*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	12
Spindle length (mm):	100
Balancing angle:	30°

Product description

Levelling foot Polyamide, Ø 83 mm, M12 x 100 mm, Stainlees steel, Total height 141 mm, Articulated screw 30°, Bore holes Ø 8,5 mm, Antislip NBR black, Static load 15.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
