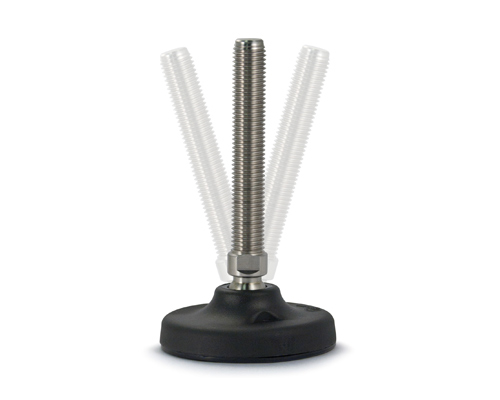

Levelling foot PA, Ø 83 mm, M20 x 150 mm Stainless steel, Drills
Optimize your equipment stability with our robust Levelling Foot made of durable Polyamide and stainless steel. With a static load capacity of 20,000 N and articulated screw adjustment, it’s perfect for precision applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.55*
|
| From 5 |
€8.53*
|
| From 15 |
€7.62*
|
| From 50 |
€7.47*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |
| Hygiene: | No |

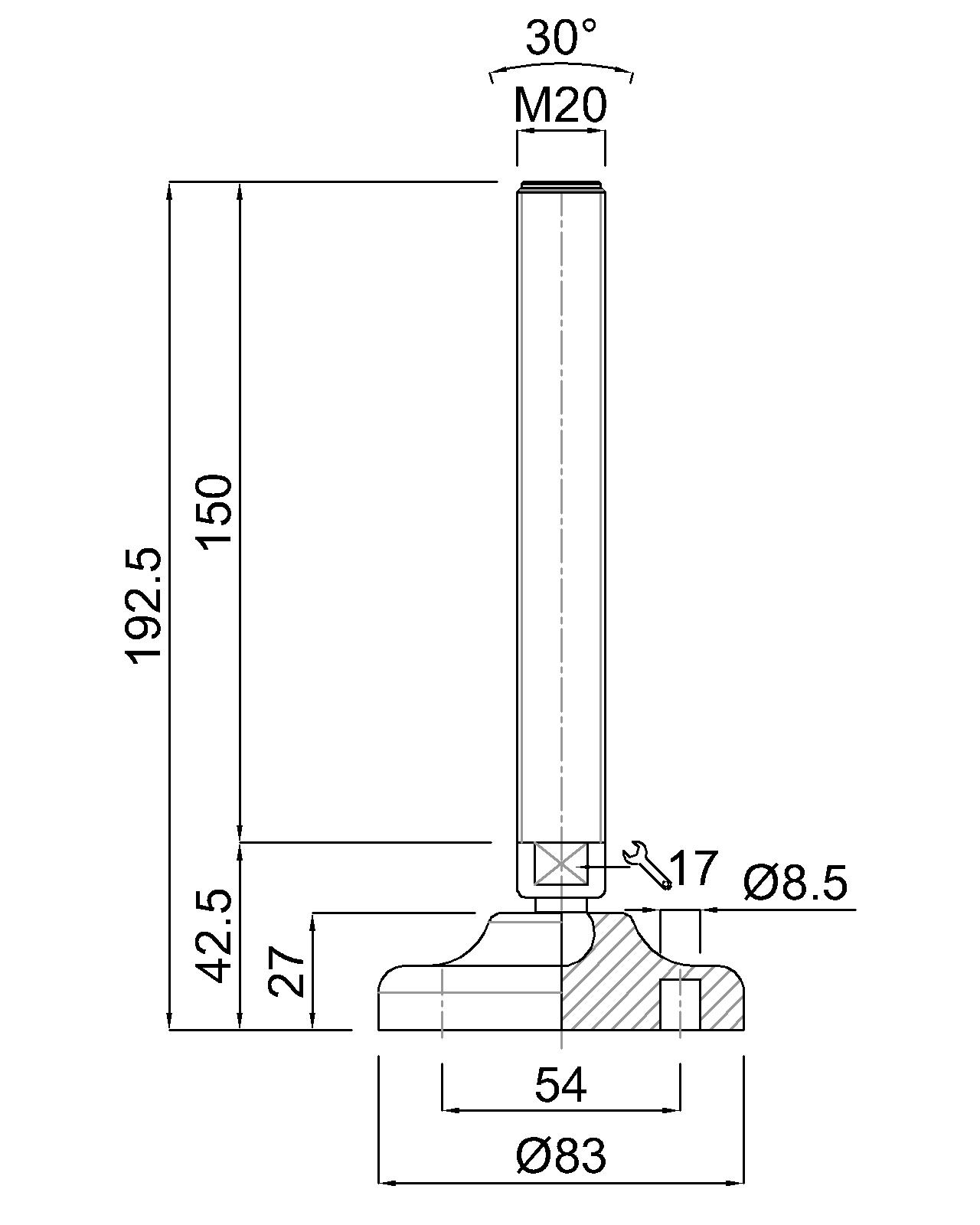

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
