Levelling foot PA, Ø 83 mm, M16 x 125 mm Stainless steel, Drills, NBR

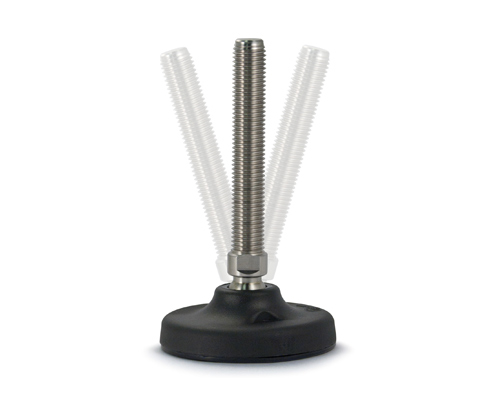

Optimize your machinery stability with our stainless steel levelling foot, featuring a durable polyamide base and an articulated screw for 30° adjustments. Static load capacity of 20,000 N ensures robust support in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.40*
|
| From 5 |
€7.51*
|
| From 15 |
€6.71*
|
| From 50 |
€6.57*
|
24 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

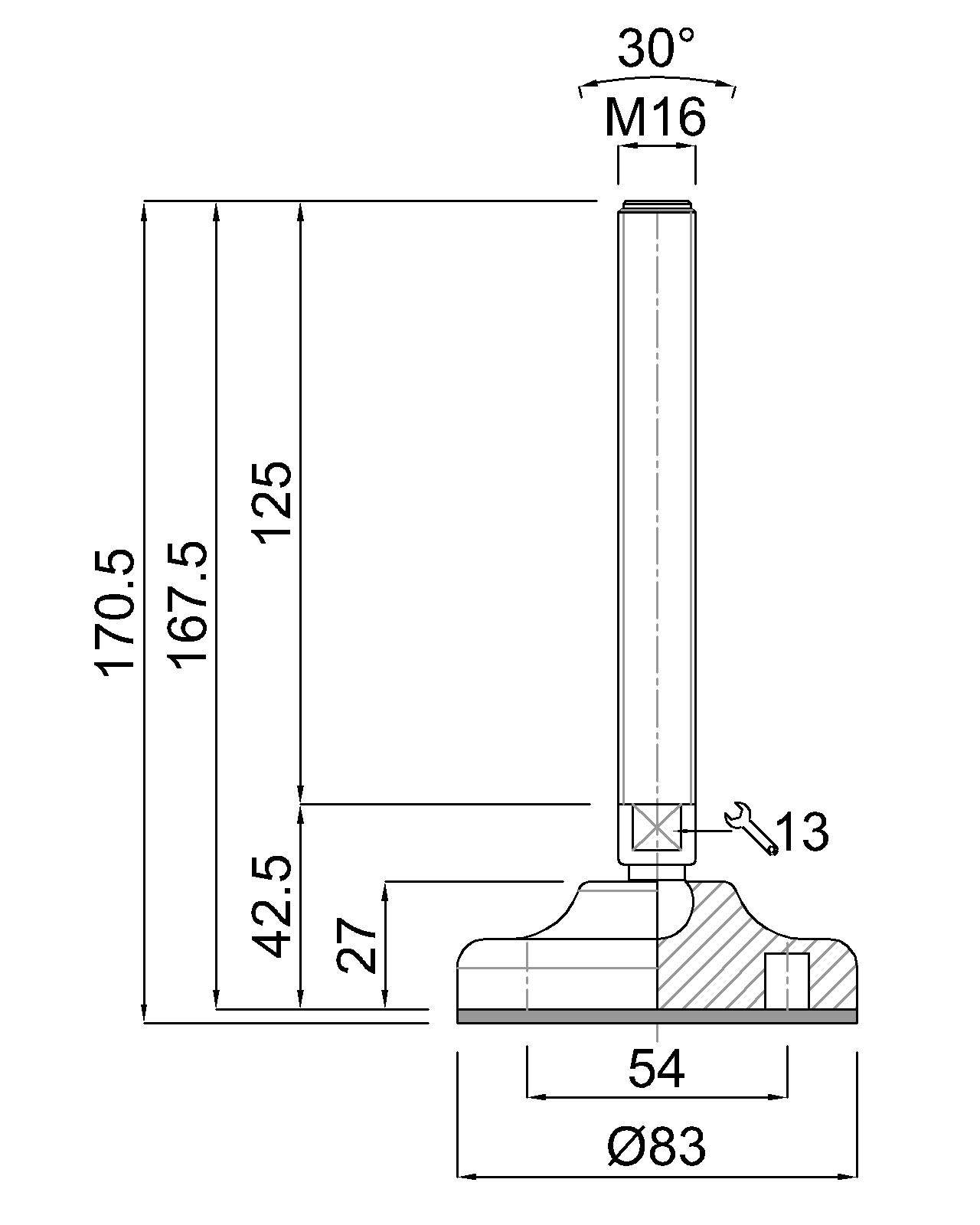

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
