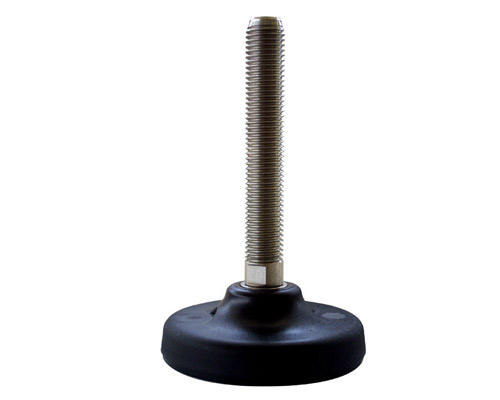

Levelling foot PA, Ø 103 mm, M20 x 150 mm Stainless steel, Drills
Enhance stability and precision with our 103 mm polyamide levelling foot. Engineered for high static loads up to 35,000 N, its stainless steel spindle ensures durability and reliability in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€17.84*
|
| From 5 |
€15.94*
|
| From 15 |
€14.24*
|
| From 50 |
€13.95*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 4° |
| Hygiene: | No |

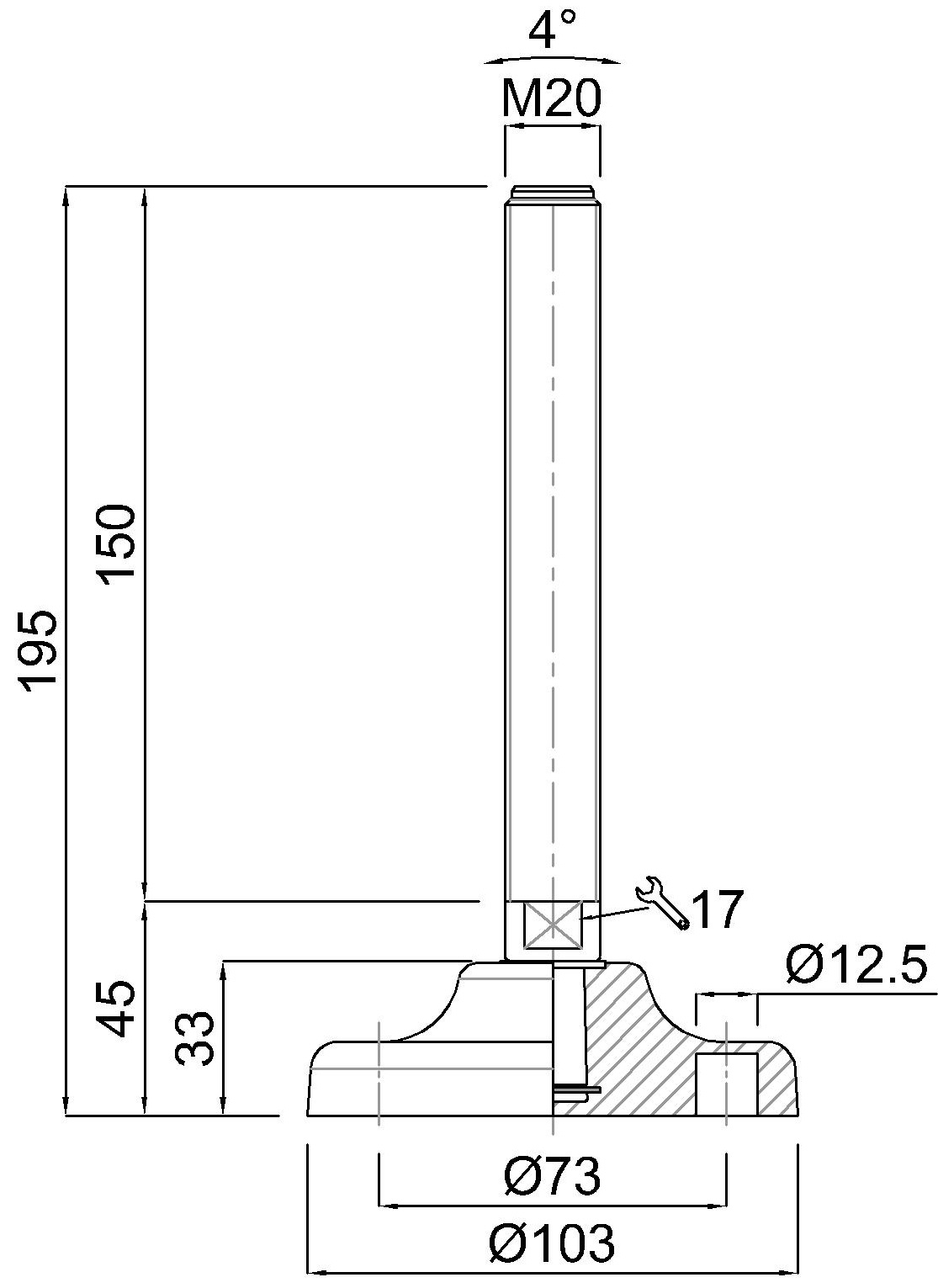

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
