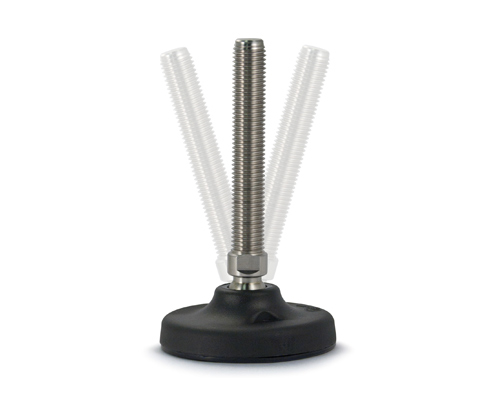

Levelling foot PA, Ø 83 mm, M16 x 75 mm Stainless steel, Drills

4061408010738
45810076

Optimize your equipment with our durable Levelling Foot made of Polyamide and stainless steel. Featuring a 30° articulated screw, it supports static loads up to 20,000 N and ensures stability.

  • Durable construction with a polyamide footplate and stainless steel spindle, ensuring high resistance to wear and corrosion.
  • Large base diameter of 83 mm provides excellent stability and load distribution, with a static load capacity of 20,000 N.
  • Articulated design with a leveling angle of 30° accommodates uneven surfaces, enhancing adaptability in various applications.
  • Convenient installation with two bore holes of Ø 8.5 mm for secure mounting, suitable for diverse floor types.
  • Total height of 117 mm allows for effective height adjustment while maintaining a compact form factor for limited spaces.
Quantity Price
From 1
€5.88*
From 5
€5.26*
From 15
€4.70*
From 50
€4.60*

25 on stock, Refill time: 5 days

€5.88* / piece
Our payment methods:

Product properties


Footplate material: Plastic
Anti-slip: No
Ø range base plate (mm): 71-90
Ground fastening: 2 mounting holes
Vibration damping: No
Material spindle: Stainless steel
Ø spindle (mm): 16
Spindle length (mm): 75
Balancing angle: 30°
Hygiene: No
Levelling foot Polyamide, Ø 83 mm, M16 x 75 mm, Stainlees steel, Total height 117 mm, Articulated screw 30°, Bore holes Ø 8,5 mm, Static load 20.000 N
