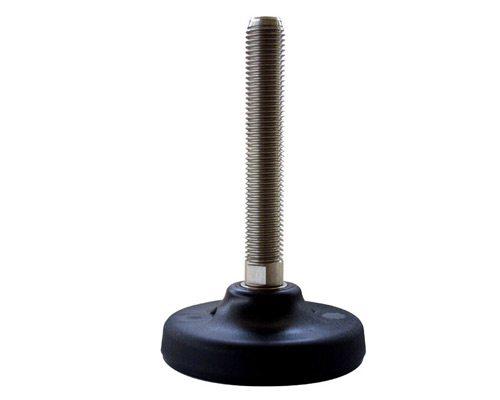

Levelling foot PA, Ø 103 mm, M24 x 225 mm Stainless steel, Drills
Optimize your equipment stability with our 103 mm Ø Levelling Foot, featuring a durable stainless steel spindle and a robust polyamide base. Supports static loads up to 35,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€23.22*
|
| From 5 |
€20.75*
|
| From 15 |
€18.53*
|
| From 50 |
€18.15*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 225 |
| Balancing angle: | 4° |
| Hygiene: | No |

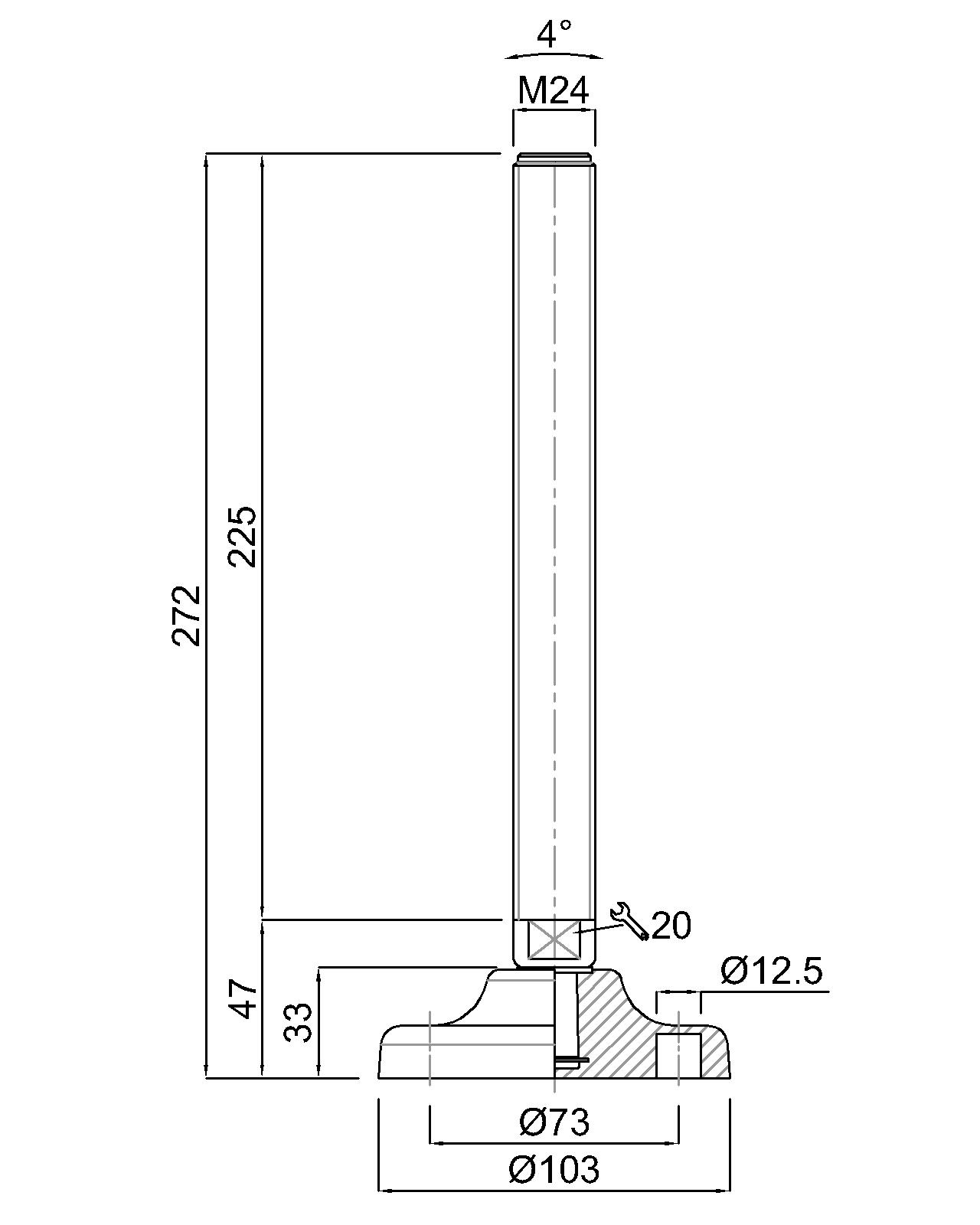

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
