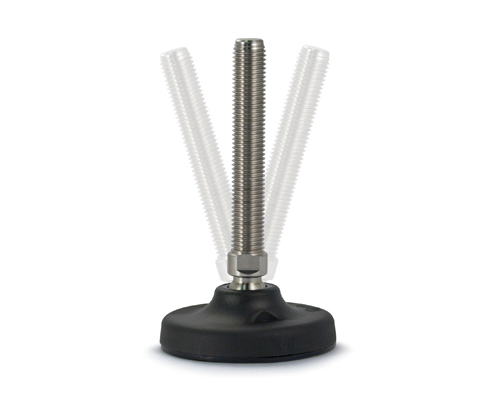

Levelling foot PA, Ø 83 mm, M16 x 100 mm Stainless steel, Drills

EAN 4061408010325

Type 45810078

Optimize your equipment stability with our durable levelling foot made from high-quality polyamide and stainless steel. Ideal for static loads up to 20,000 N, featuring adjustable angles and dual mounting holes.

Made from durable polyamide for superior resistance to wear and corrosion, ensuring long-lasting performance.
Stainless steel spindle with a diameter of 16 mm provides robust support and stability.
Total height of 142 mm allows for versatile applications while accommodating a static load of up to 20,000 N.
Adjustable with an articulated screw design, enabling compensation for uneven surfaces at an angle of 30°.
Easy installation with two bore holes (Ø 8.5 mm) for secure mounting.

Quantity	Price
From 1	€6.58*
From 5	€5.88*
From 15	€5.25*
From 50	€5.15*

*Prices excl. VAT plus shipping costs

102 on stock, Refill time: 5 days

€6.58* / piece

Our payment methods:

Accessories

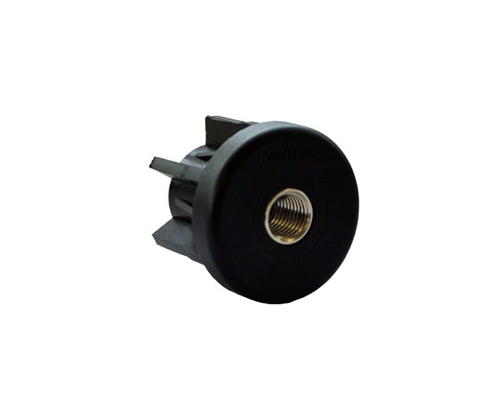

Round plug polyamide Ø 50, M16, stainless steel insert

Type No.: 45817020I

From €5.76*

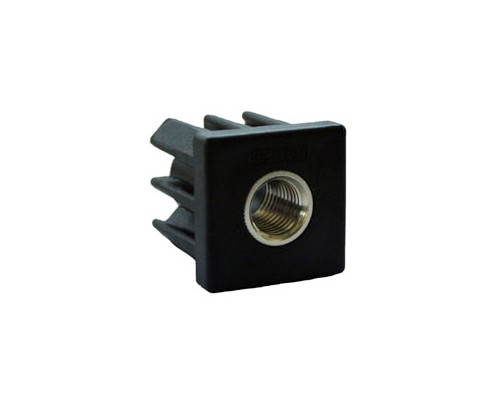

Square plug polyamide 50x50, M16, stainless steel insert

Type No.: 45817055I

From €5.21*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	71-90
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	100
Balancing angle:	30°
Hygiene:	No

Product description

Levelling foot Polyamide, Ø 83 mm, M16 x 100 mm, Stainlees steel, Total height 142 mm, Articulated screw 30°, Bore holes Ø 8,5 mm, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
