Levelling foot PA, Ø 83 mm, M16 x 100 mm Stainless steel, Drills
Enhance stability with our Polyamide Levelling Foot, featuring a 83 mm diameter and M16 x 100 mm stainless steel spindle. Supports up to 20,000 N static load with adjustable tilt.
| Quantity | Price |
|---|---|
| From 1 |
€7.80*
|
| From 5 |
€6.97*
|
| From 15 |
€6.23*
|
| From 50 |
€6.10*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 4° |
| Hygiene: | No |

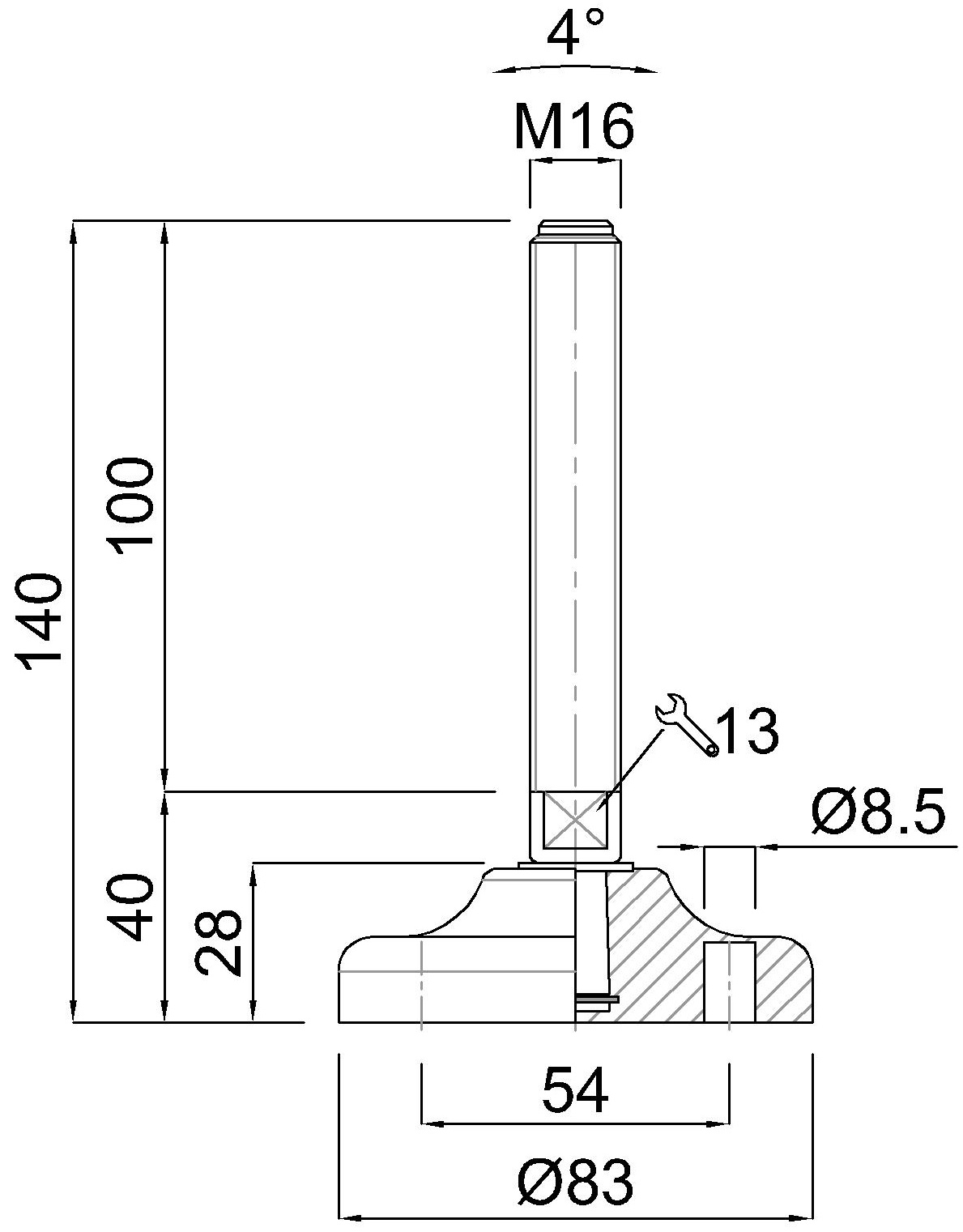

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
