Levelling foot PA, Ø 83 mm, M20 x 125 mm Stainless steel, Drills
Enhance stability and precision in your projects with our PA Levelling Foot. Featuring a Ø 83 mm base, M20 x 125 mm stainless steel spindle, and a static load capacity of 20,000 N, it ensures robust support and easy installation.
| Quantity | Price |
|---|---|
| From 1 |
€10.42*
|
| From 5 |
€9.31*
|
| From 15 |
€8.31*
|
| From 50 |
€8.14*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 4° |
| Hygiene: | No |

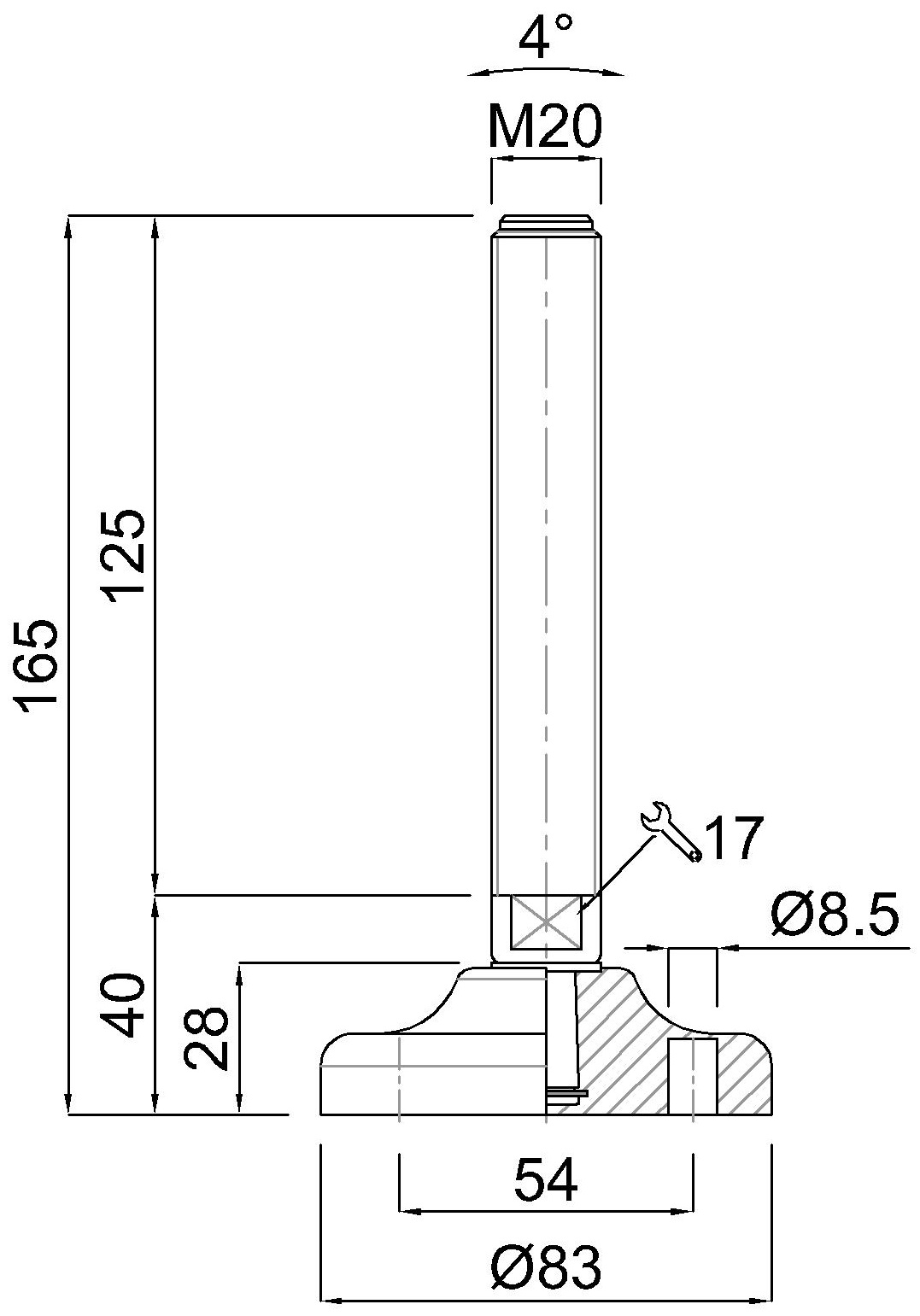

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
