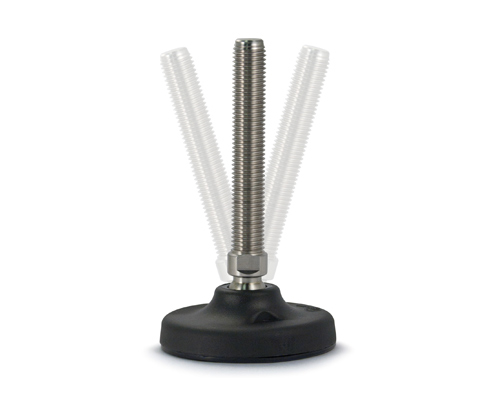

Levelling foot PA, Ø 83 mm, M16 x 150 mm Stainless steel, Drills
Enhance stability with our durable Levelling Foot PA. Crafted from stainless steel and polyamide, it supports static loads up to 20,000 N, ensuring precision alignment in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€7.84*
|
| From 5 |
€7.01*
|
| From 15 |
€6.26*
|
| From 50 |
€6.13*
|
45 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |
| Hygiene: | No |

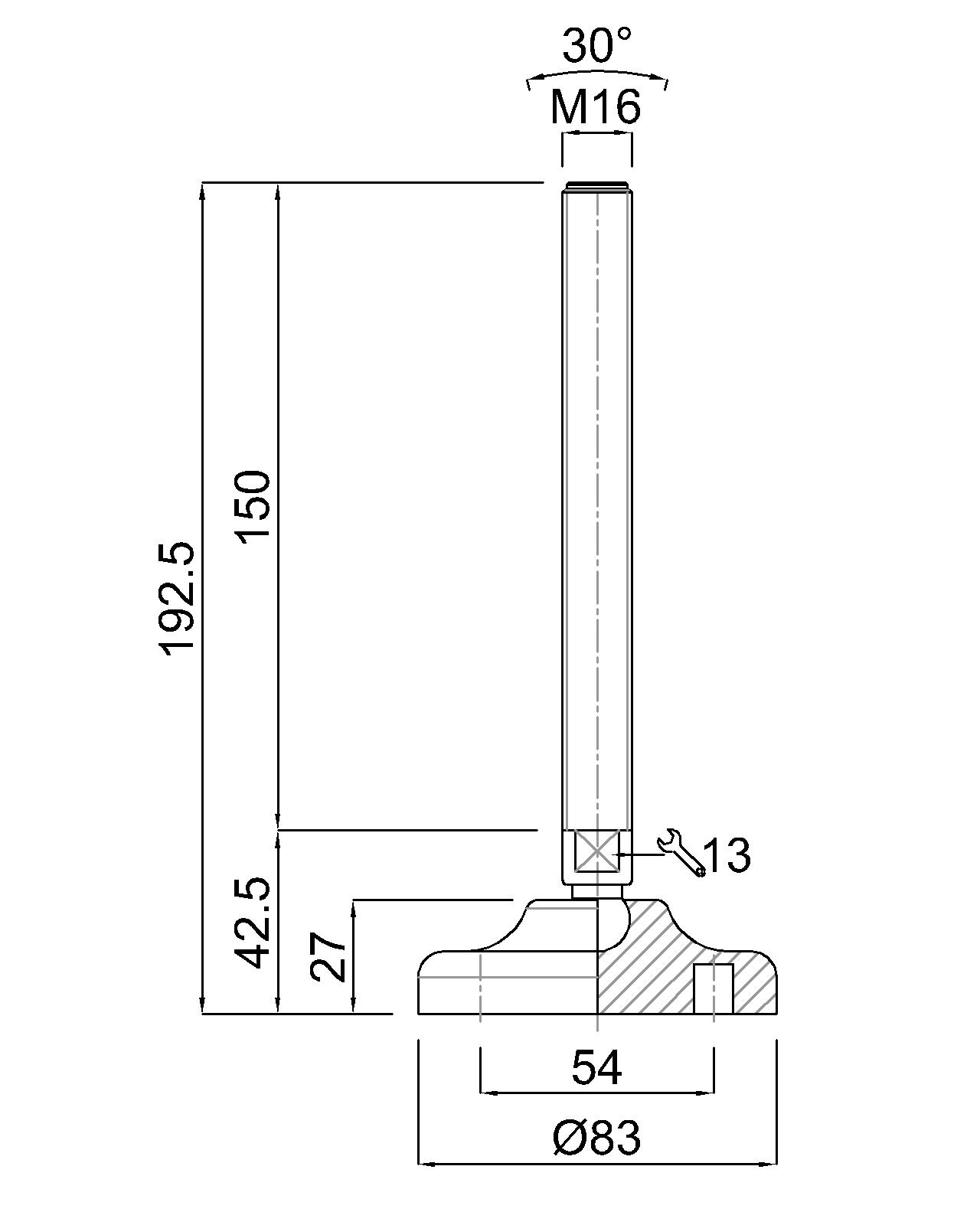

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
