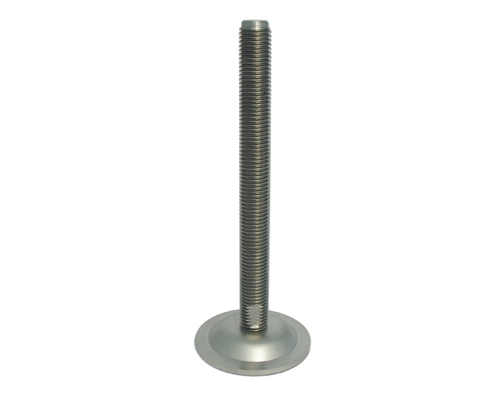

Levelling foot PRESSED stainless steel, Ø 65 mm, M16 x 100 mm
Optimize your machinery setup with our pressed stainless steel leveling foot, featuring a 65 mm diameter and M16 x 100 mm spindle. With a total height of 122 mm and an articulated screw angle of 8°, it supports static loads up to 20,000 N, ensuring stability and precision in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.42*
|
| From 13 |
€8.85*
|
| From 25 |
€8.28*
|
| From 50 |
€7.88*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 8° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
