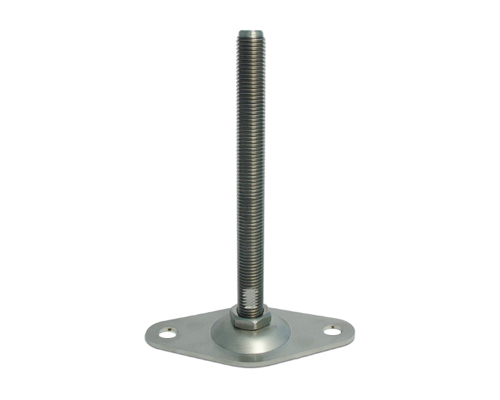

Levelling foot PRESSED stainless steel, oval Ø 65 mm, M12 x 100 mm, Drills
Optimize your machinery's stability with our Pressed Stainless Steel Levelling Foot. Engineered for static loads up to 15,000 N, it features an articulated screw and precise bore holes for enhanced reliability.
| Quantity | Price |
|---|---|
| From 1 |
€9.85*
|
| From 13 |
€9.25*
|
| From 25 |
€8.66*
|
| From 50 |
€8.24*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 8° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
