Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 200 mm, NBR
EAN
4061408040704
Type
45810655
Discover the MASSIV Stainless Steel Levelling Foot, designed for robust stability with a 120 mm diameter base and a load capacity of 65,000 N. Engineered for precision, it features a 30° articulated screw and durable NBR anti-slip material, ensuring optimal performance in demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€75.39*
|
| From 13 |
€70.82*
|
| From 25 |
€66.25*
|
| From 50 |
€63.05*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |

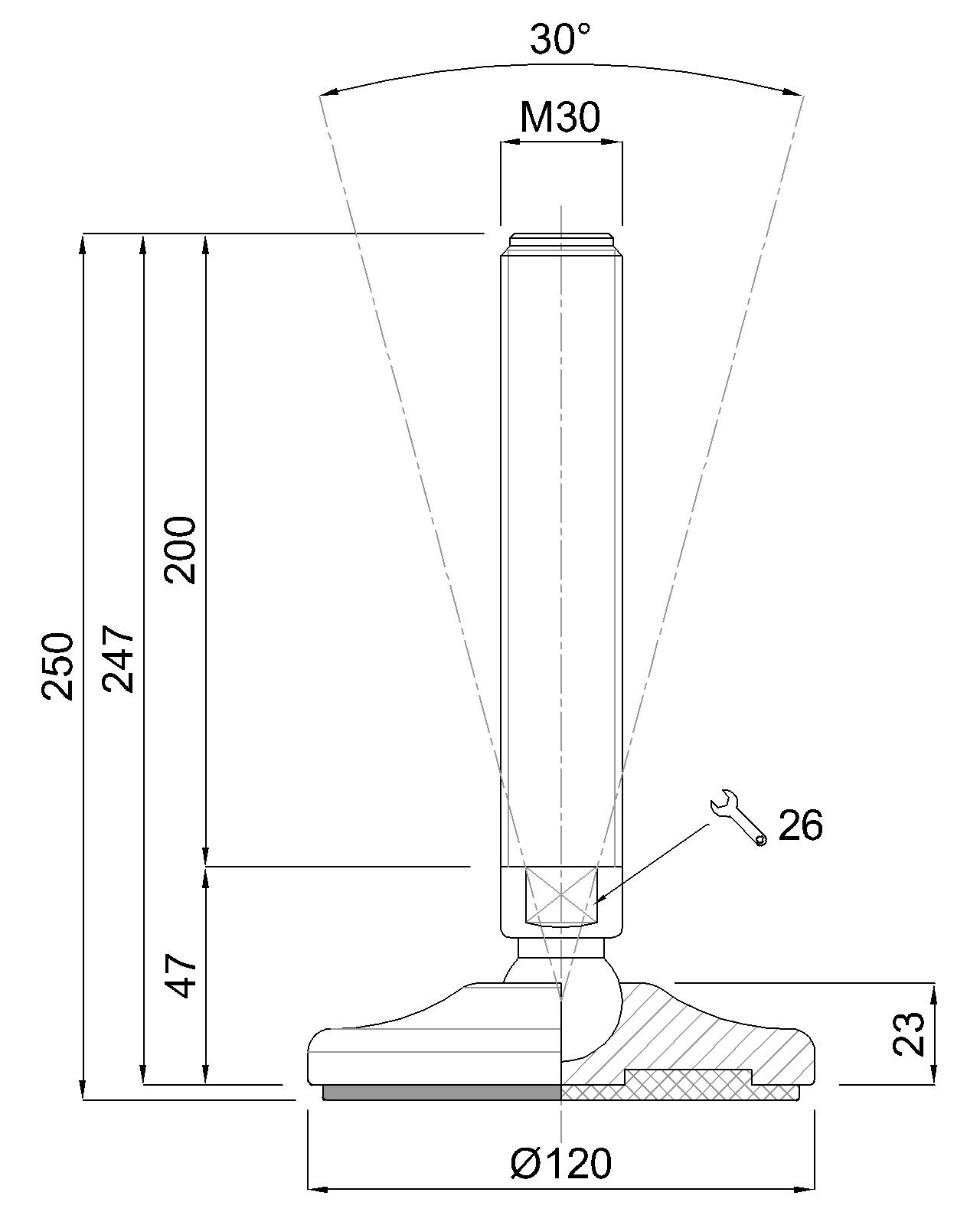

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 200 mm, Stainlees steel, Total height 250 mm, Articulated screw 30°, Antislip NBR black, Static load 65.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
