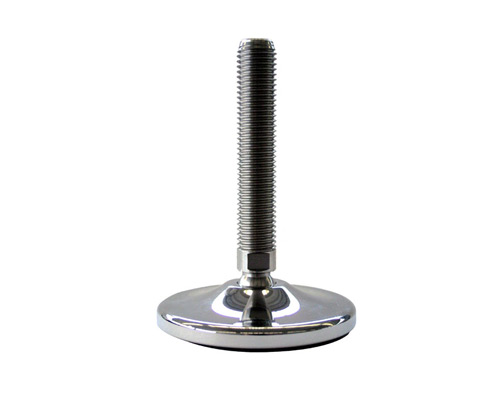

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 200 mm
The MASSIV Stainless Steel Levelling Foot combines durability and precision with a 120 mm diameter base, 200 mm spindle length, and a static load capacity of 65,000 N, ensuring robust stability for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€74.00*
|
| From 13 |
€69.52*
|
| From 25 |
€65.03*
|
| From 50 |
€61.89*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |
| Hygiene: | No |

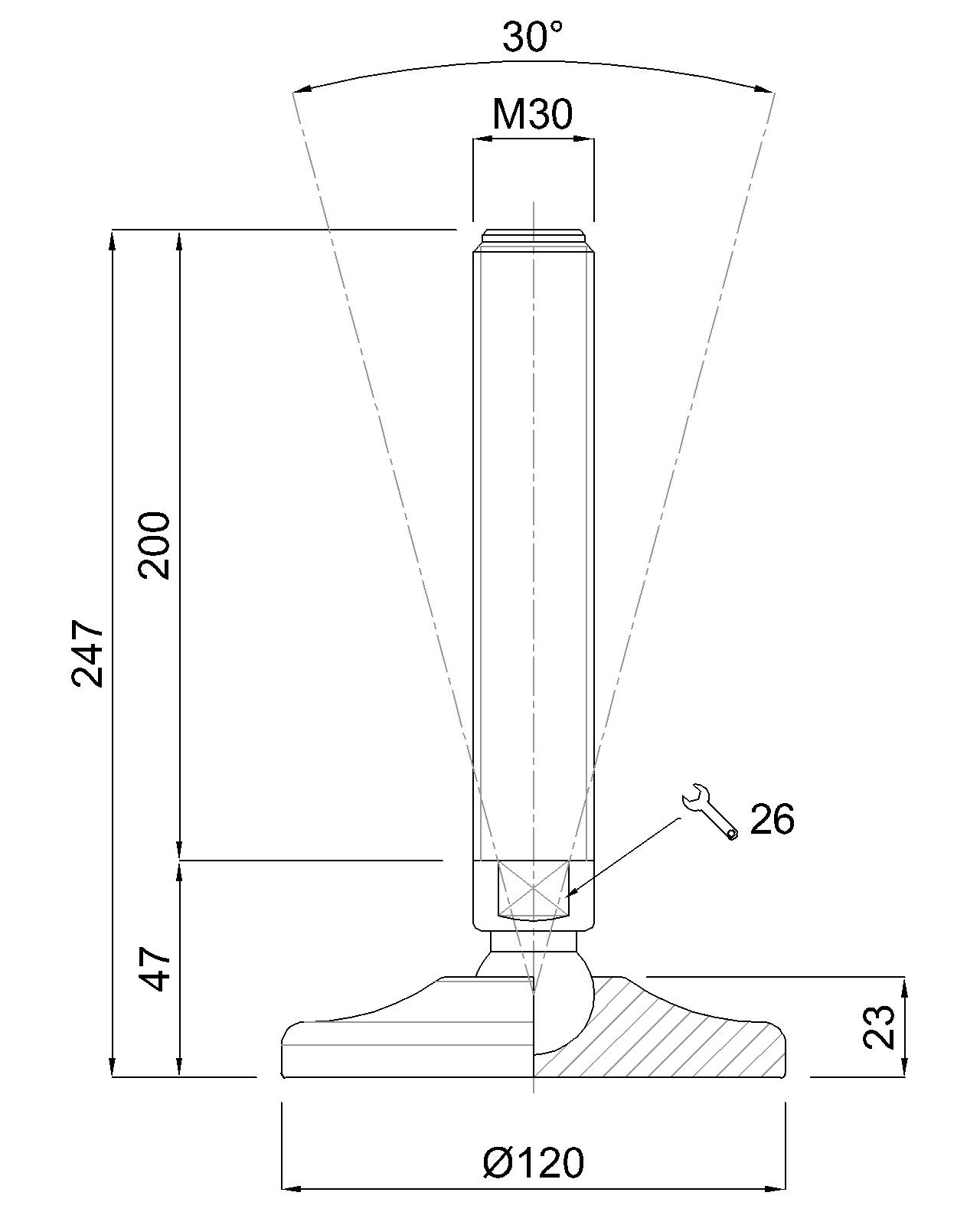

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
