Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 125 mm, NBR
EAN
4061408040643
Type
45810649
Introducing the MASSIV Levelling Foot in Stainless Steel: engineered for durability with a 120 mm base and a 125 mm spindle. Capable of supporting up to 65,000 N, it features an anti-slip NBR black surface and a 30° articulated screw, ensuring optimal stability in demanding conditions.
| Quantity | Price |
|---|---|
| From 1 |
€69.55*
|
| From 13 |
€65.33*
|
| From 25 |
€61.12*
|
| From 50 |
€58.17*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

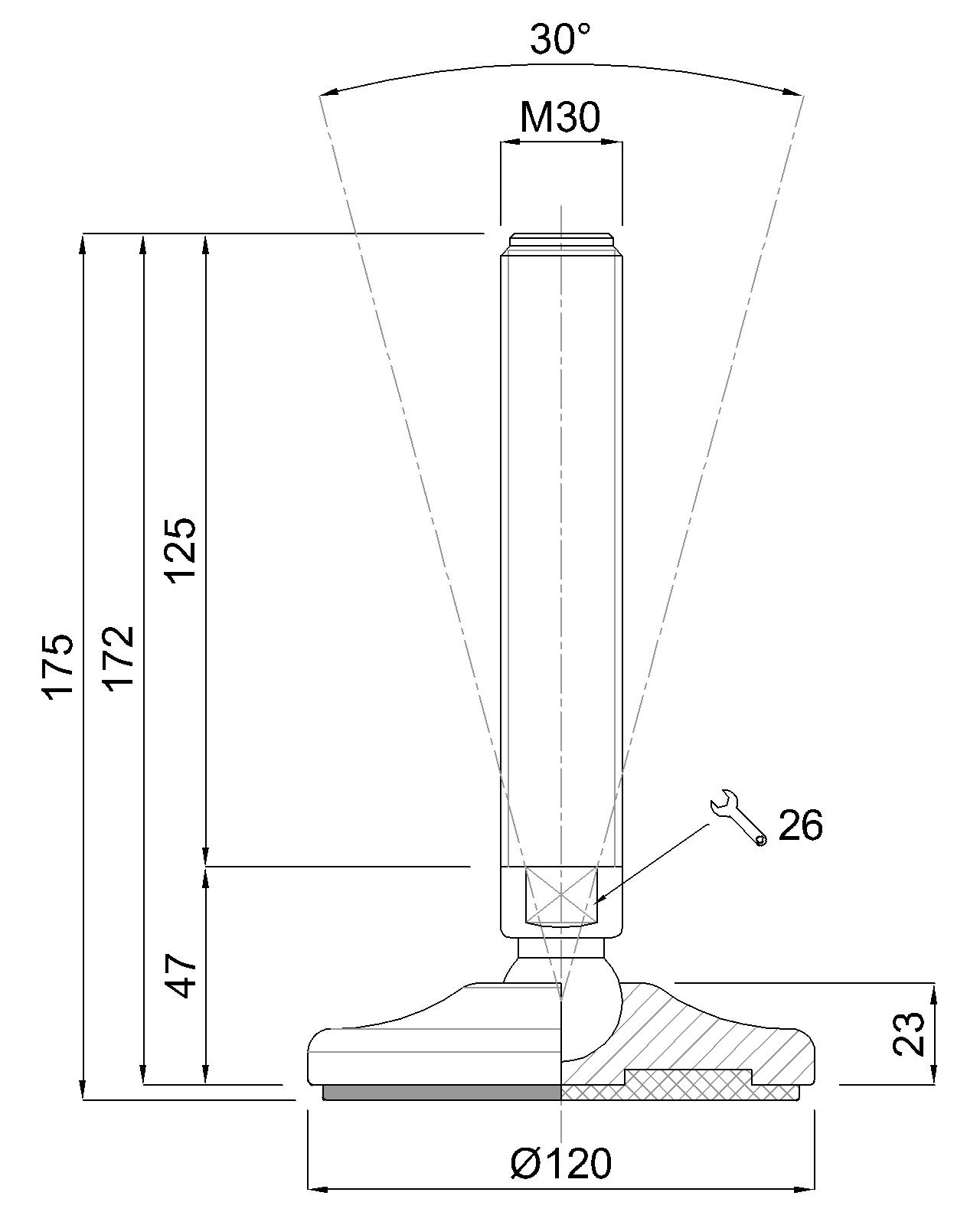

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 125 mm, Stainlees steel, Total height 175 mm, Articulated screw 30°, Antislip NBR black, Static load 65.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
