Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 125 mm
EAN
4061408040254
Type
45810600
The MASSIV Stainless Steel Levelling Foot features a robust 120 mm diameter and adjustable height of 171 mm, supporting a static load of 35,000 N with a 30° articulated screw. Ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€65.27*
|
| From 13 |
€61.32*
|
| From 25 |
€57.36*
|
| From 50 |
€54.59*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

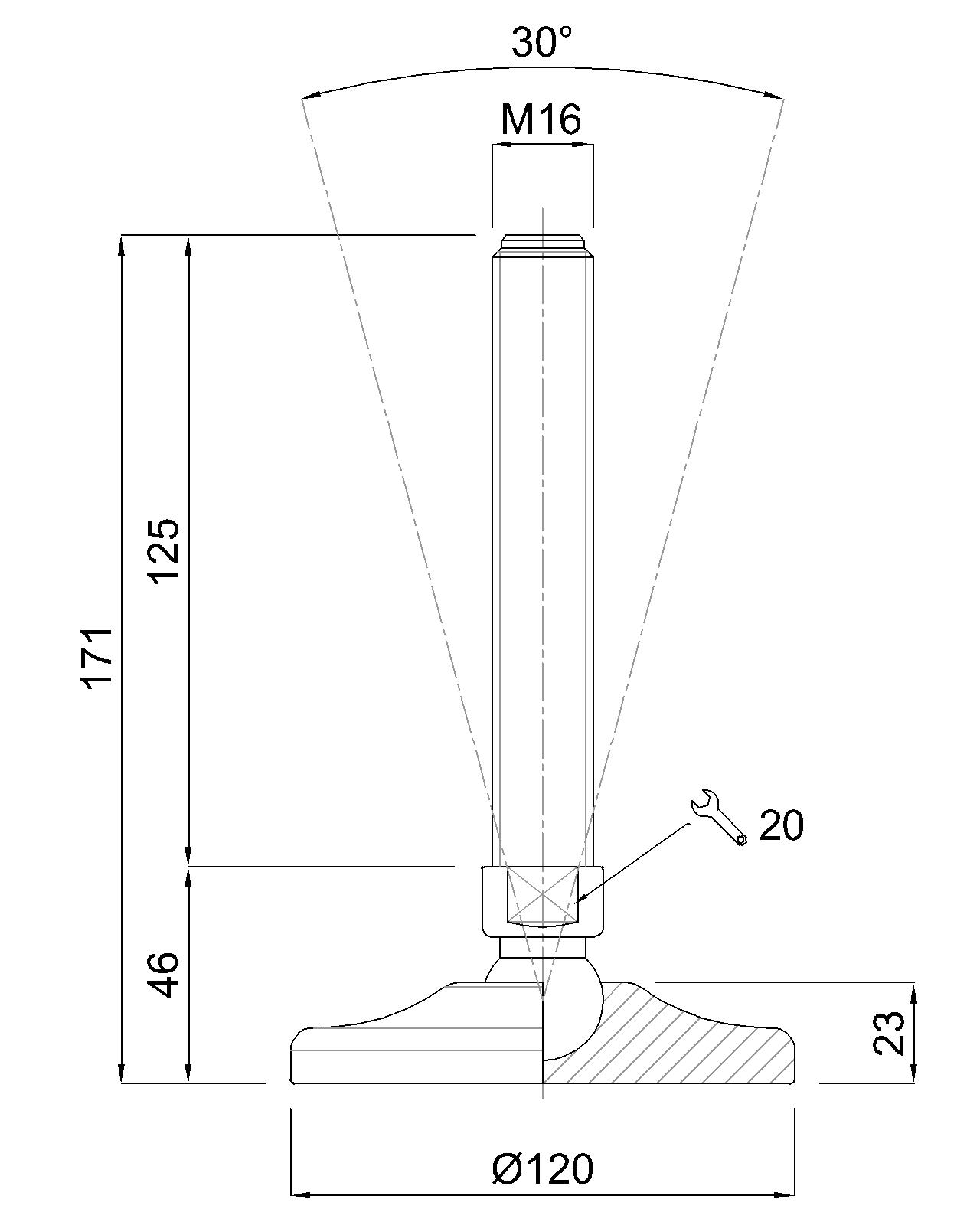

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 125 mm, Stainlees steel, Total height 171 mm, Articulated screw 30°, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
