Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 100 mm, NBR
EAN
4061408040247
Type
45810599
Discover the MASSIV Stainless Steel Levelling Foot: engineered for stability with a 120 mm diameter, 30° articulation, and a robust static load capacity of 35,000 N. Ideal for precise adjustments in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€65.70*
|
| From 13 |
€61.72*
|
| From 25 |
€57.74*
|
| From 50 |
€54.95*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

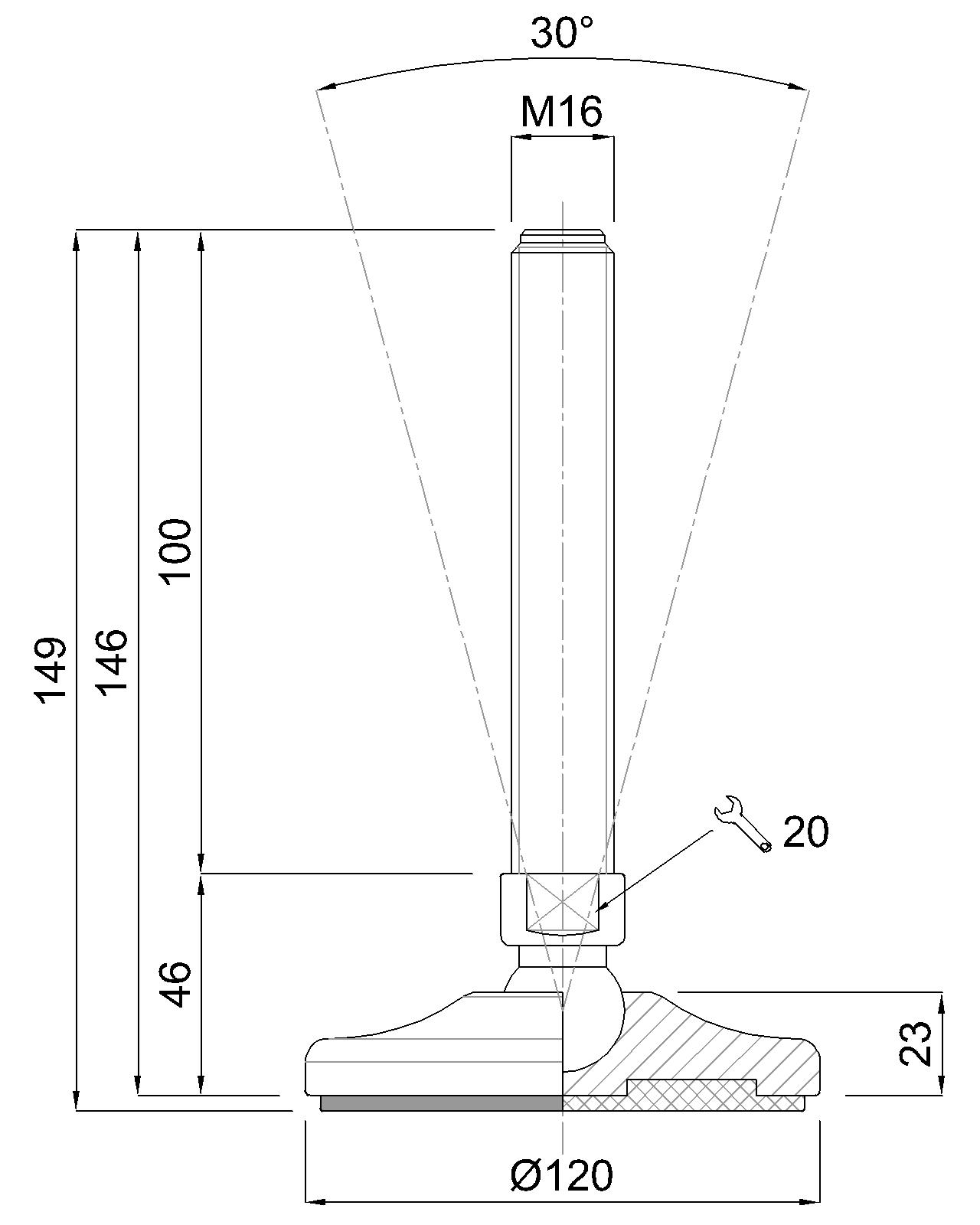

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 100 mm, Stainlees steel, Total height 149 mm, Articulated screw 30°, Antislip NBR black, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
