Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 100 mm
EAN
4061408040230
Type
45810598
Enhance stability with the MASSIV Stainless Steel Levelling Foot. Boasting a Ø 120 mm base, M16 x 100 mm spindle, and 35,000 N static load capacity, it ensures robust support in diverse applications.
| Quantity | Price |
|---|---|
| From 1 |
€64.68*
|
| From 13 |
€60.76*
|
| From 25 |
€56.84*
|
| From 50 |
€54.10*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |

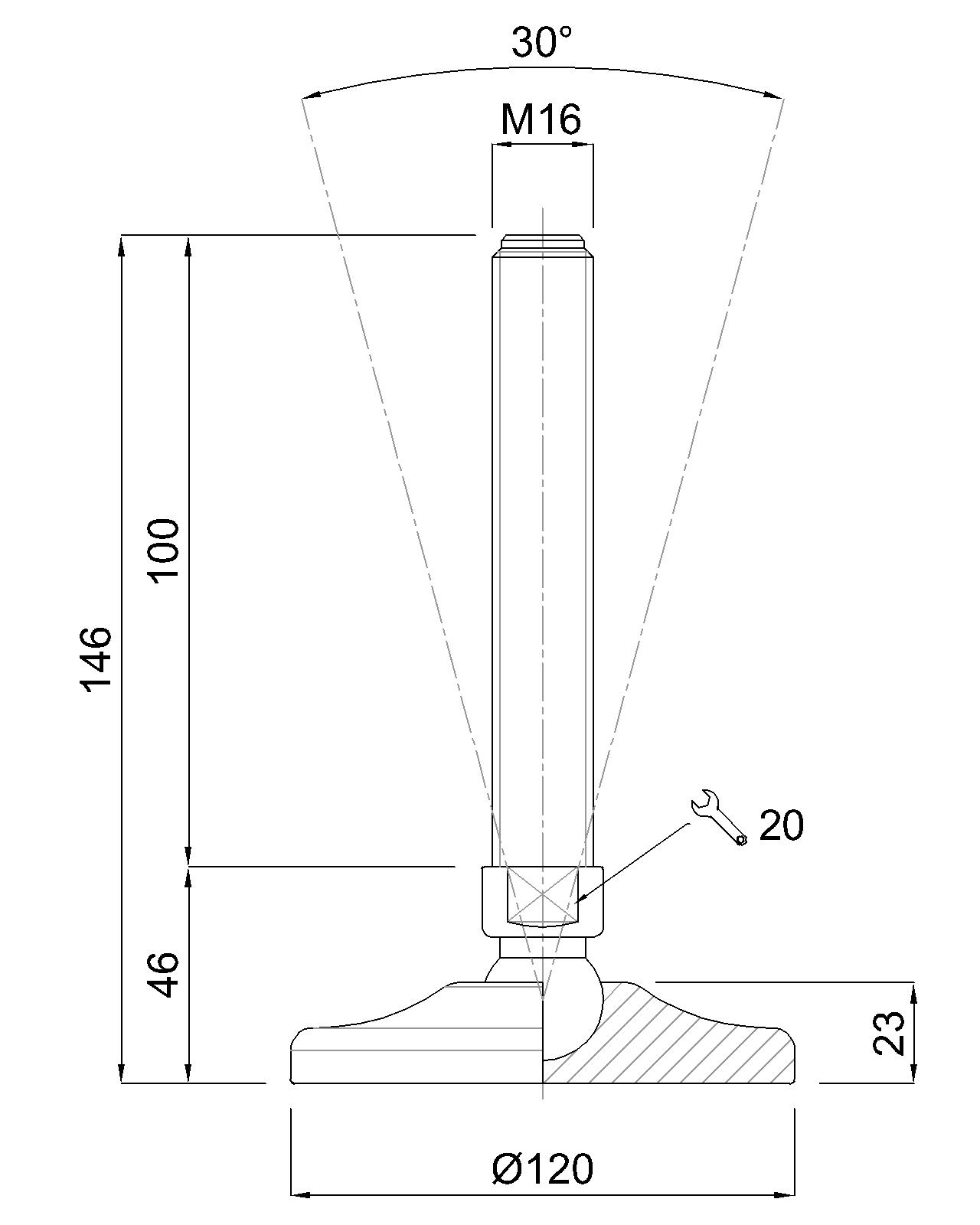

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 100 mm, Stainlees steel, Total height 146 mm, Articulated screw 30°, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
