Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 75 mm, Drills, NBR
EAN
4061408116973
Type
45815233/G
Enhance stability with our MASSIV Stainless Steel Leveling Foot, featuring a robust 150 mm base, M20x75 mm spindle, and 5° articulation for precise adjustments. Static load capacity of 50,000 N ensures reliable performance.
| Quantity | Price |
|---|---|
| From 1 |
€79.76*
|
| From 13 |
€74.93*
|
| From 25 |
€70.09*
|
| From 50 |
€66.71*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 75 |
| Balancing angle: | 5° |

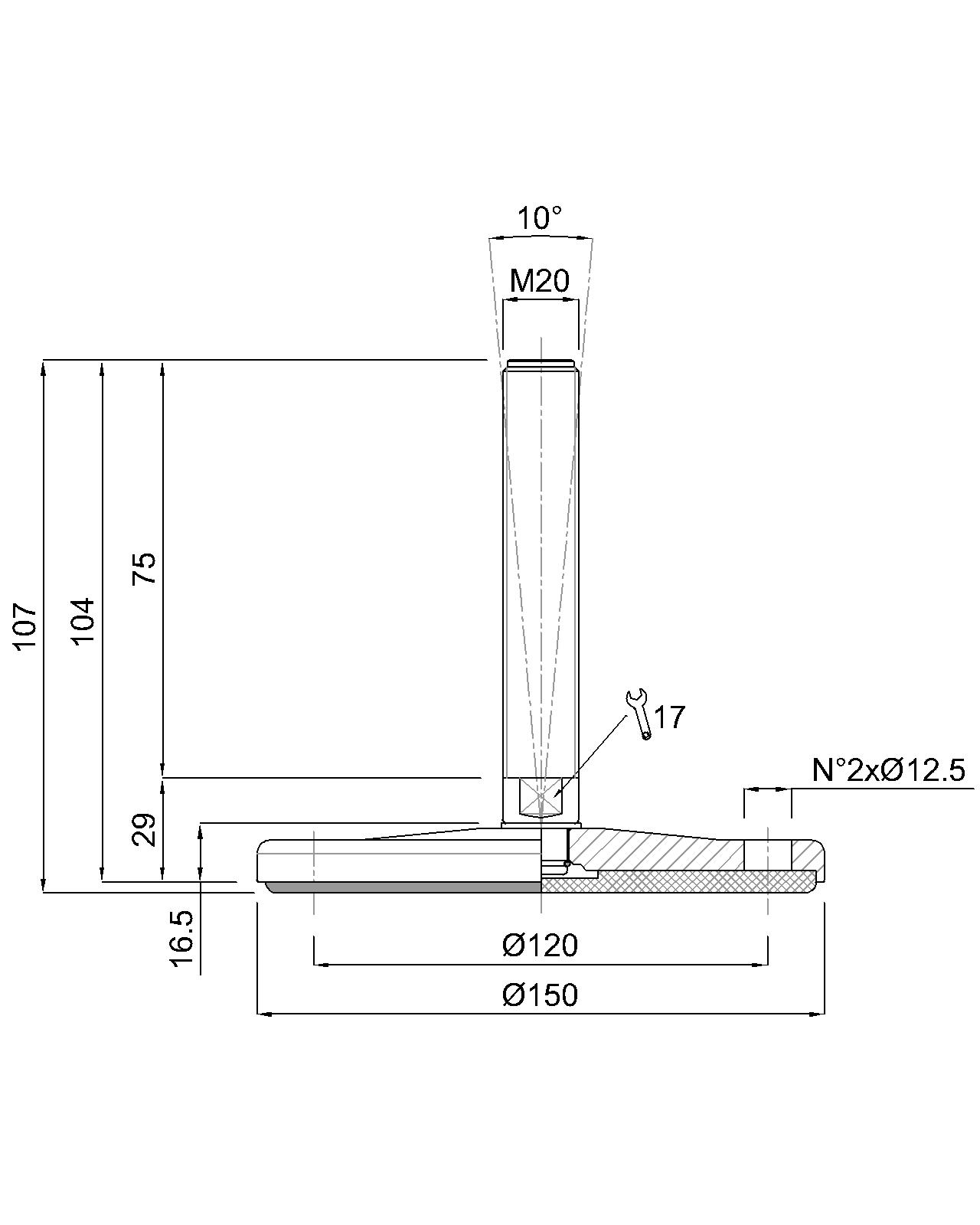

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 75 mm, Stainlees steel, Total height 107 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
