Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 225 mm, Drills, NBR
EAN
4061408116966
Type
45815232/G
Introducing the MASSIV Stainless Steel Levelling Foot: engineered for durability with a 120 mm diameter and M30 x 225 mm spindle, supporting static loads up to 45,000 N. Features include an articulated screw with 5° adjustment and NBR anti-slip for superior stability.
| Quantity | Price |
|---|---|
| From 1 |
€78.18*
|
| From 13 |
€73.44*
|
| From 25 |
€68.70*
|
| From 50 |
€65.38*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 225 |
| Balancing angle: | 5° |

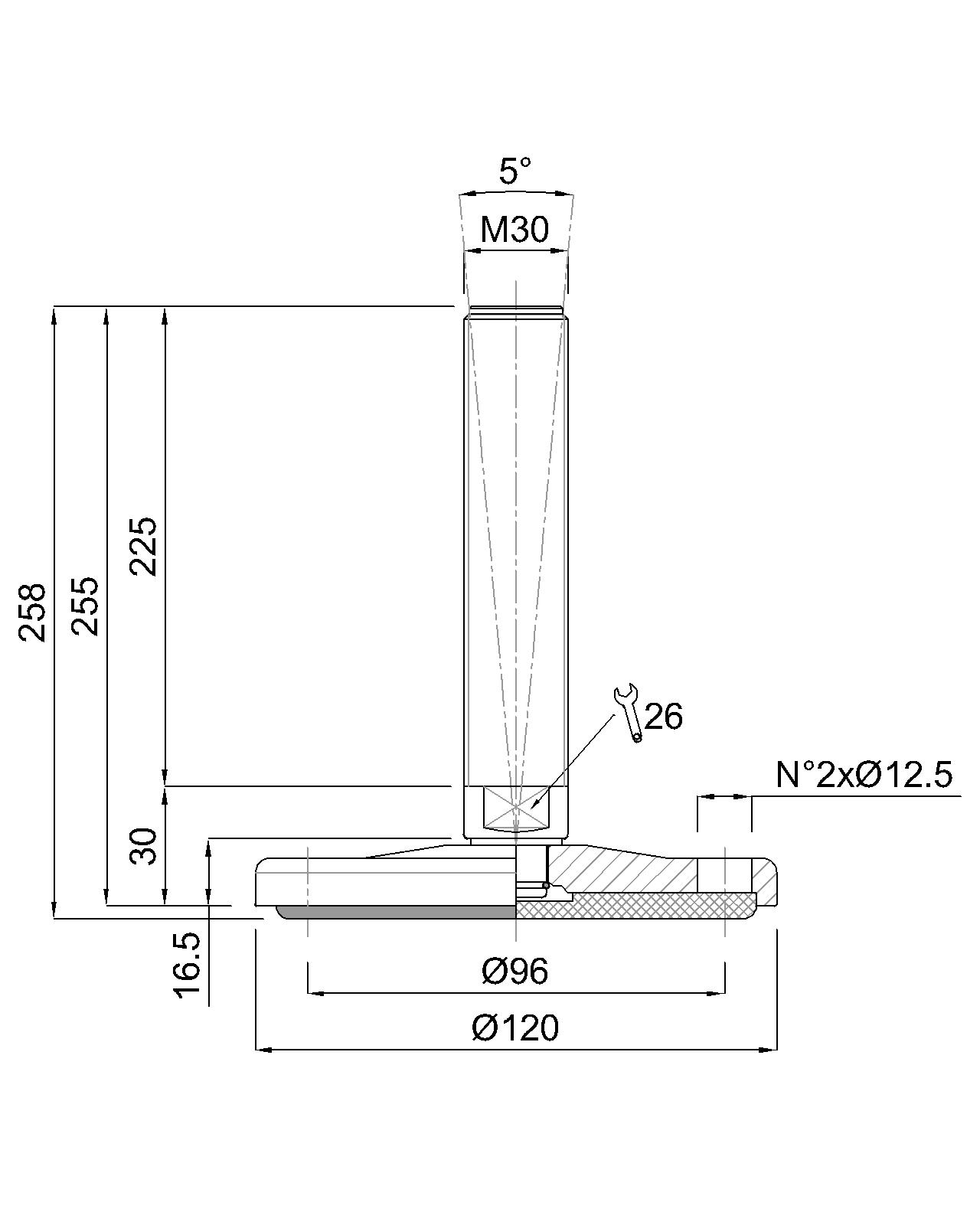

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 225 mm, Stainlees steel, Total height 258 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
