Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 100 mm, Drills, NBR
EAN
4061408116959
Type
45815227/G
Discover the MASSIV Stainless Steel Levelling Foot, designed for durability and precision. With a 120 mm base and a static load capacity of 45,000 N, it ensures stability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€58.89*
|
| From 13 |
€55.32*
|
| From 25 |
€51.75*
|
| From 50 |
€49.25*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |

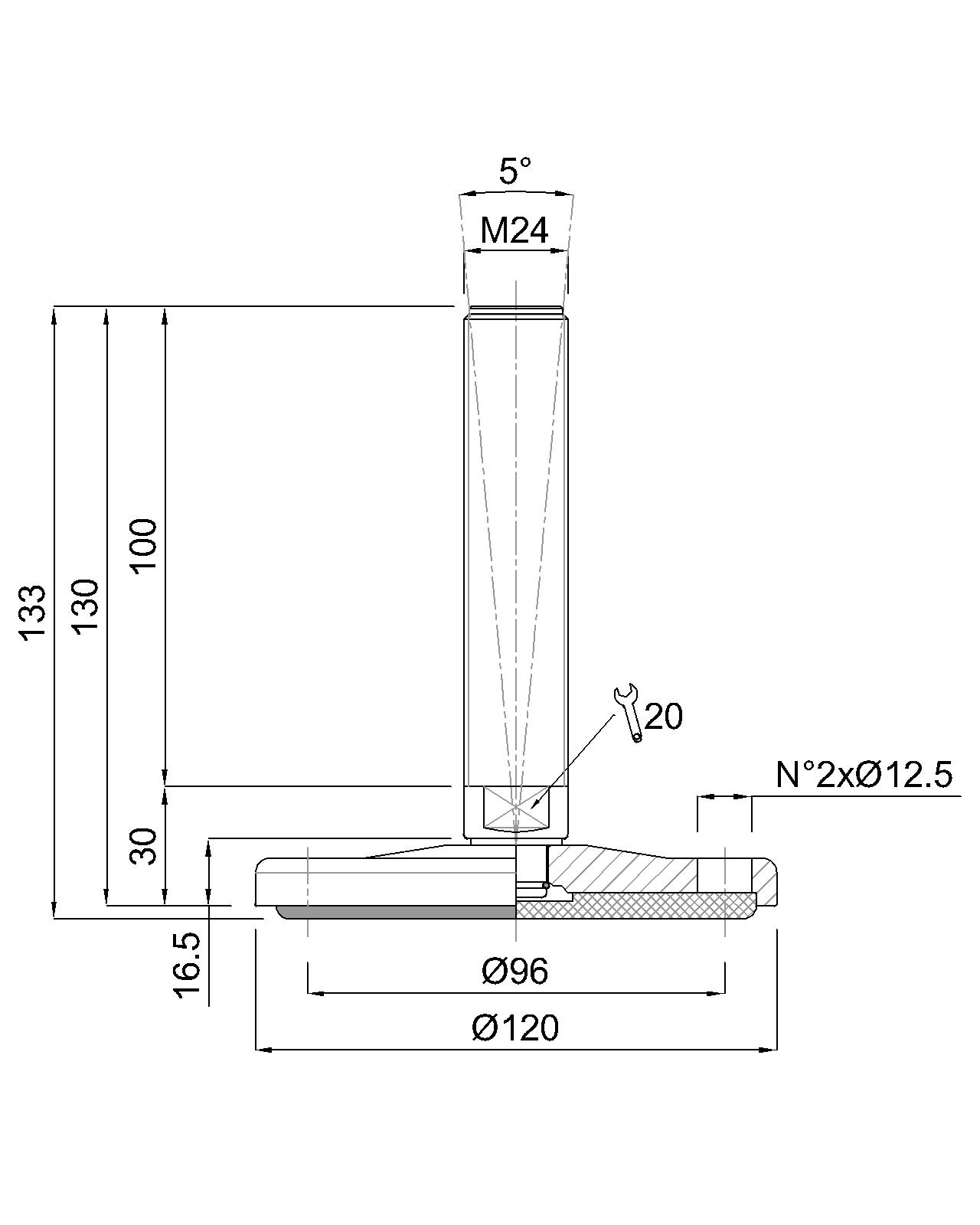

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 100 mm, Stainlees steel, Total height 133 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
