Levelling foot MASSIV Stainless Steel, Ø 150 mm, M24 x 100 mm, Drills, NBR
EAN
4061408116898
Type
45815236/G
Discover the MASSIV leveling foot crafted from durable stainless steel. With a 150 mm diameter and articulated screw for a 5° adjustment, it ensures stability under static loads up to 55,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€85.97*
|
| From 13 |
€80.76*
|
| From 25 |
€75.55*
|
| From 50 |
€71.90*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |

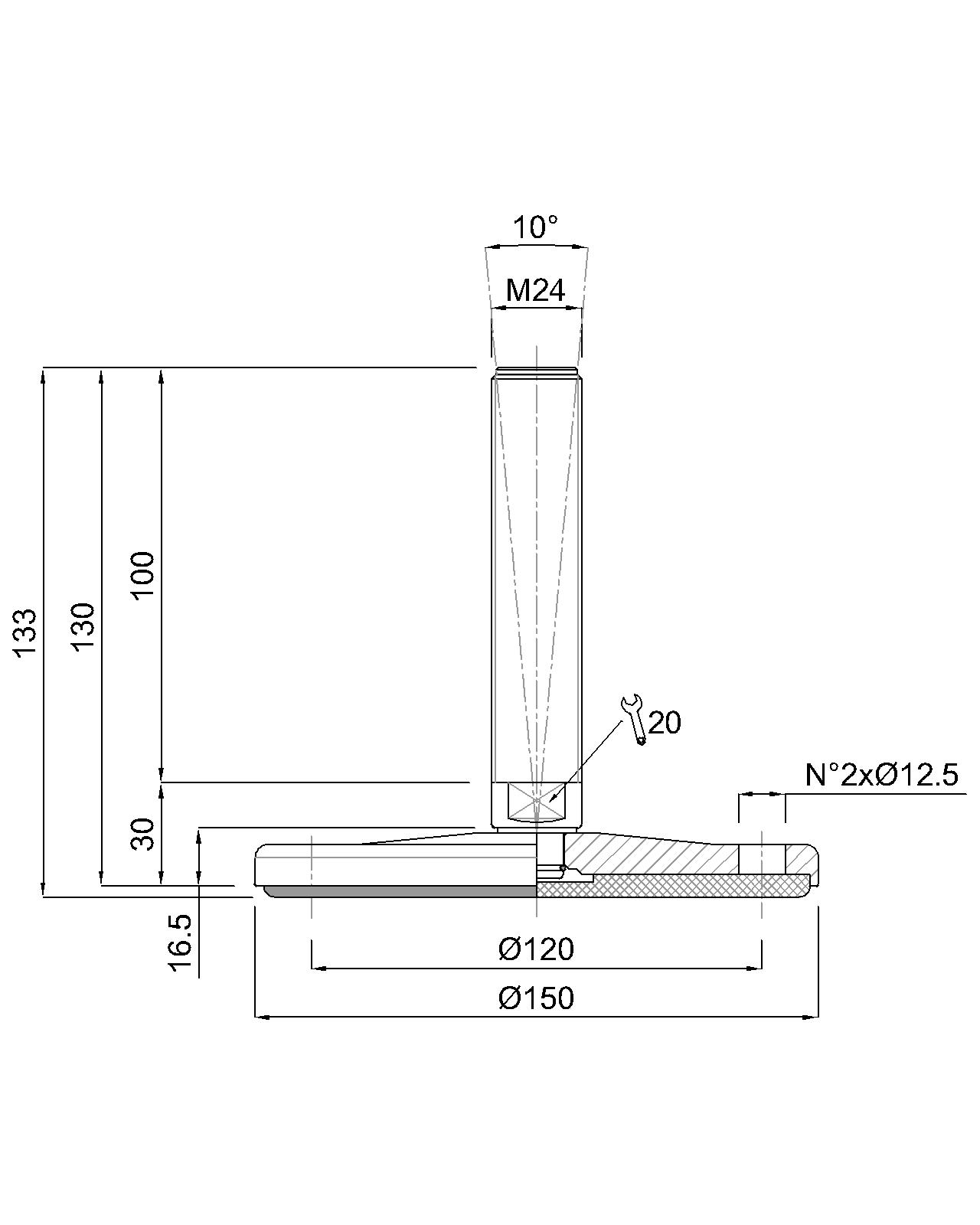

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M24 x 100 mm, Stainlees steel, Total height 133 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
