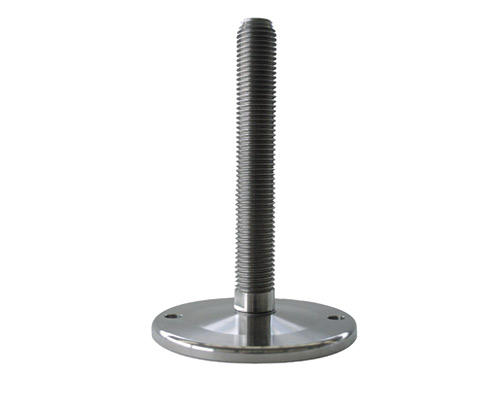

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M24 x 150 mm, Drills, NBR
Elevate your engineering projects with our MASSIV Stainless Steel Levelling Foot. Featuring a 150 mm diameter plate and a robust M24 x 150 mm spindle, it supports static loads up to 55,000 N with articulate adjustment for optimal stability.
| Quantity | Price |
|---|---|
| From 1 |
€91.25*
|
| From 13 |
€85.72*
|
| From 25 |
€80.19*
|
| From 50 |
€76.31*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |

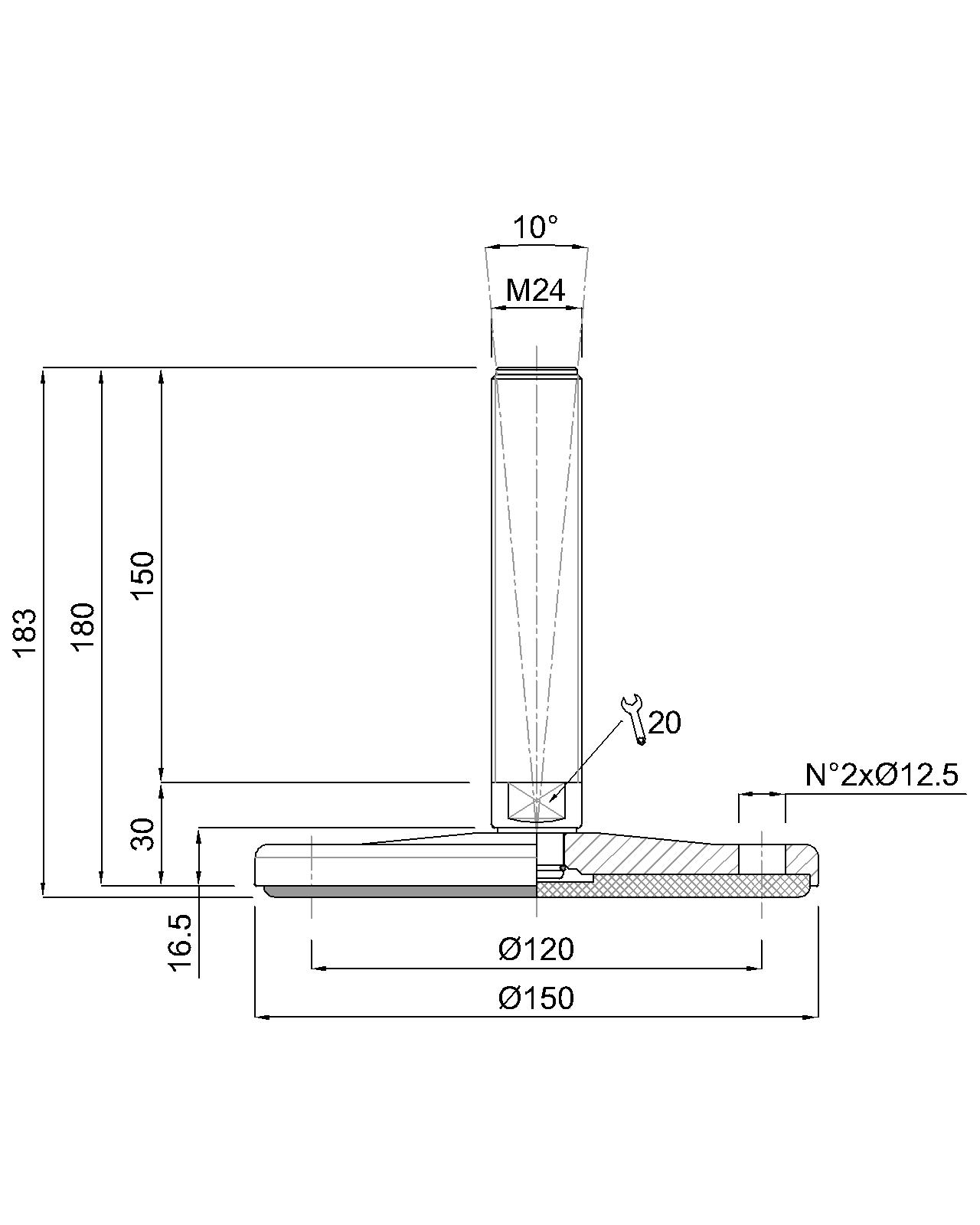

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
