Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 150 mm, Drills
EAN
4061408099511
Type
45812584
Discover the MASSIV Stainless Steel Levelling Foot, engineered for superior stability with a static load capacity of 70,000 N. Ideal for precise adjustments in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€87.02*
|
| From 13 |
€81.75*
|
| From 25 |
€76.47*
|
| From 50 |
€72.78*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 0° |
| Hygiene: | No |

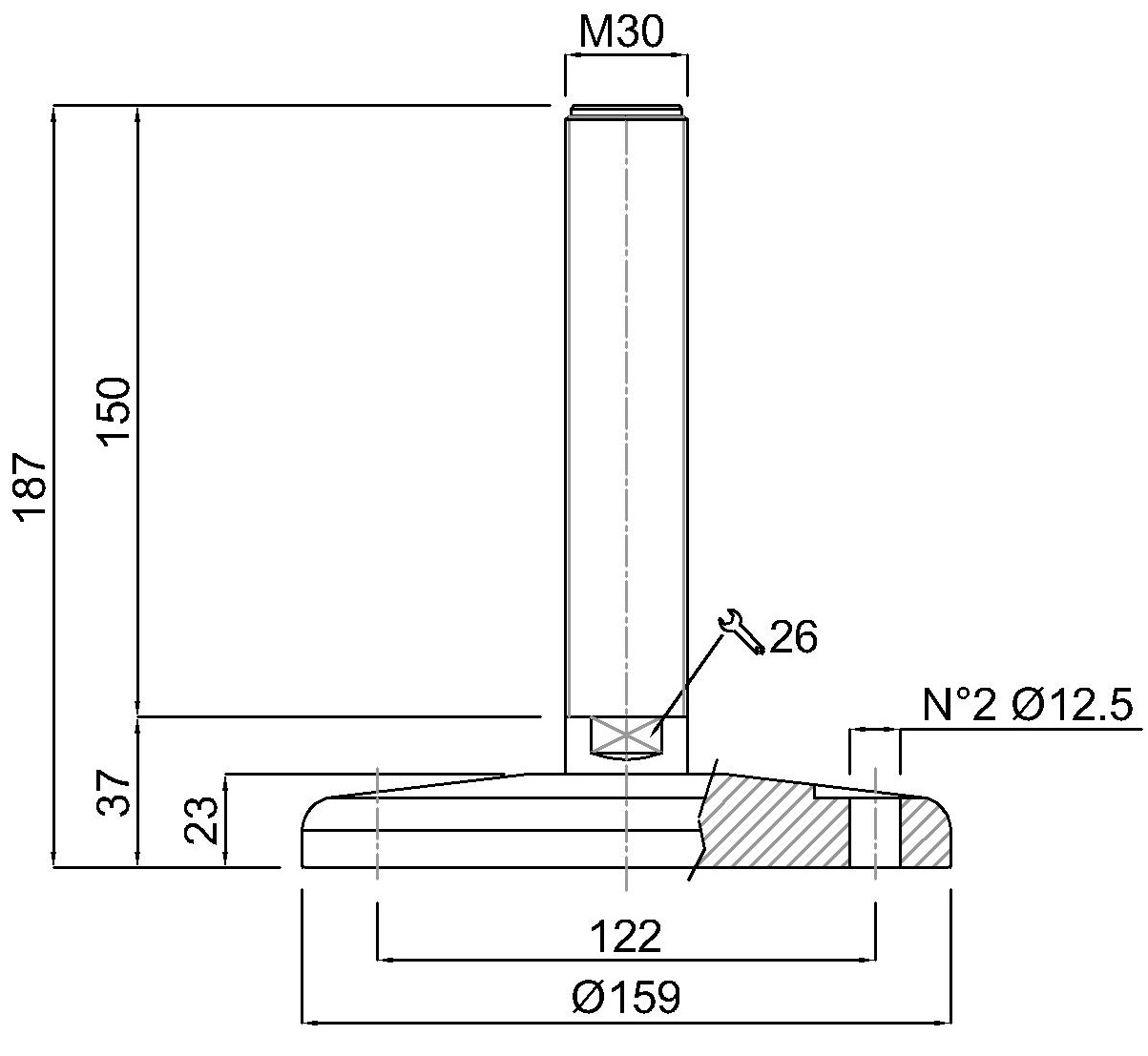

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 150 mm, Stainlees steel, Total height 187 mm, Bore holes Ø 12,5 mm, Static load 70.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
