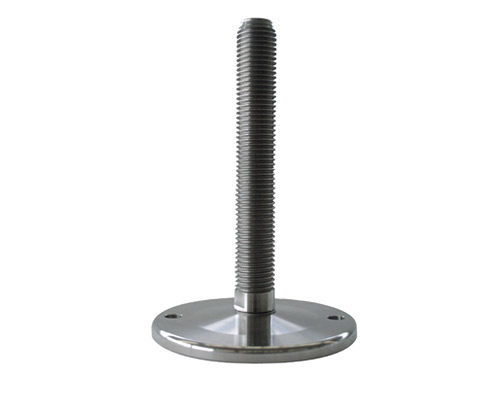

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 175 mm, Drills, NBR
EAN
4061408099474
Type
45815240/G
Maximize stability with our MASSIV Levelling Foot made of stainless steel, featuring a 150 mm diameter base and M30 x 175 mm spindle. Engineered for heavy loads up to 55,000 N, it offers precise adjustment within a 5° range.
| Quantity | Price |
|---|---|
| From 1 |
€106.01*
|
| From 13 |
€99.59*
|
| From 25 |
€93.16*
|
| From 50 |
€88.67*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 175 |
| Balancing angle: | 5° |

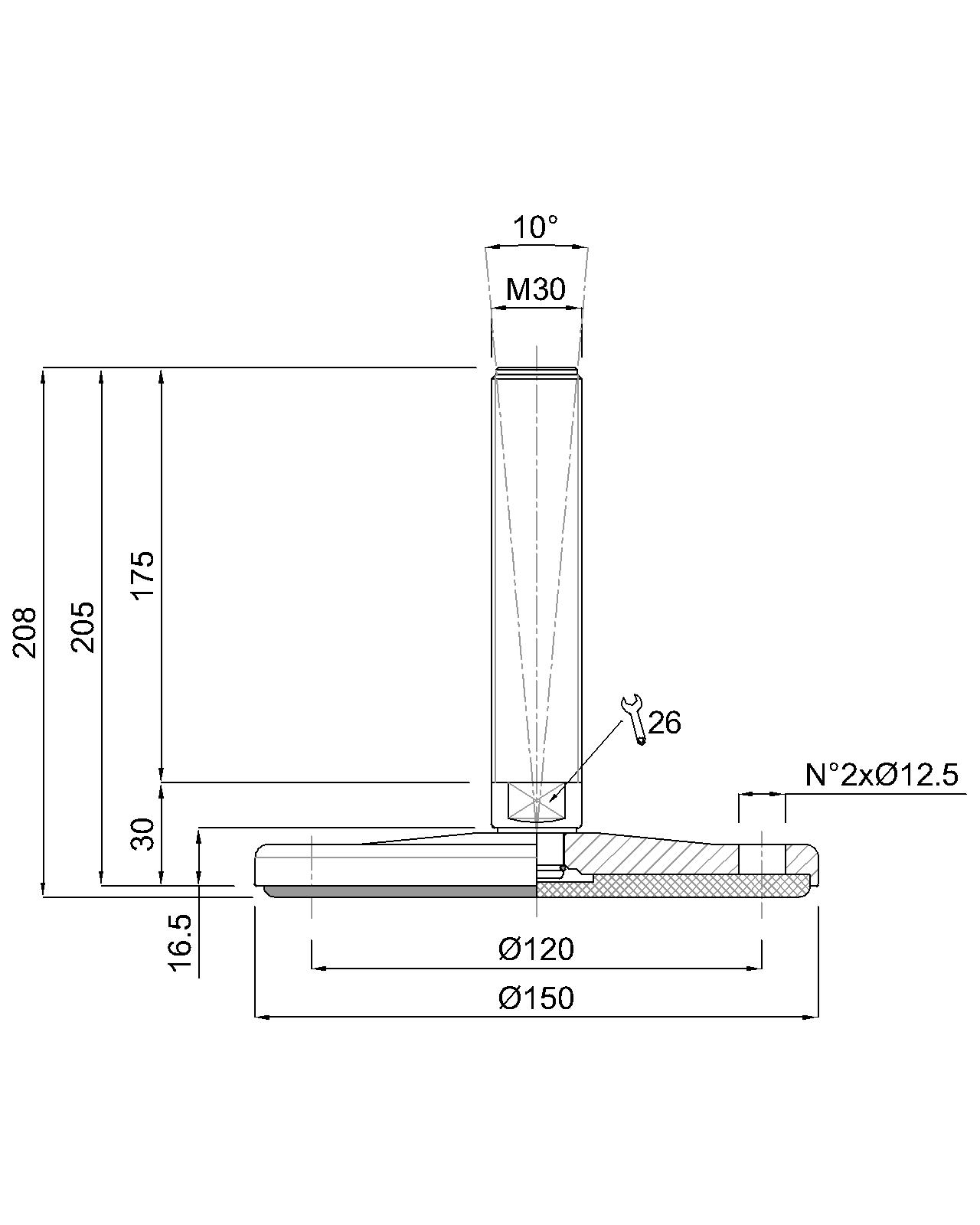

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 175 mm, Stainlees steel, Total height 208 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
