Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 125 mm, Drills
EAN
4061408099467
Type
45815230
Introducing the MASSIV Stainless Steel Levelling Foot, featuring a robust Ø 120 mm base and M30 x 125 mm spindle. Designed for static loads up to 45,000 N, it ensures optimal stability with a 5° articulating screw for precise adjustments. Ideal for engineers and technical professionals seeking durability and reliability in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€62.32*
|
| From 13 |
€58.54*
|
| From 25 |
€54.77*
|
| From 50 |
€52.12*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |
| Hygiene: | No |

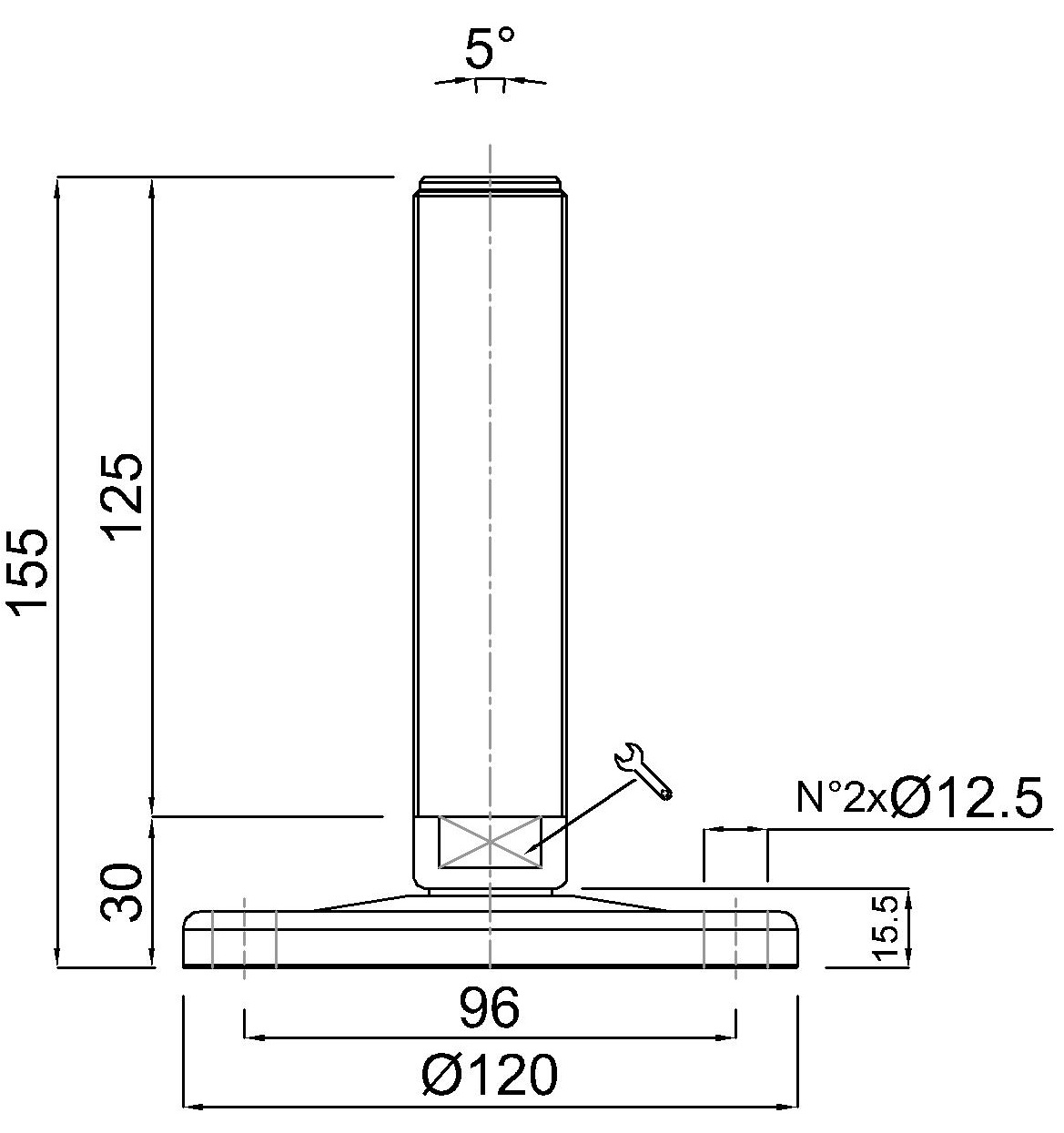

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 125 mm, Stainlees steel, Total height 155 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
