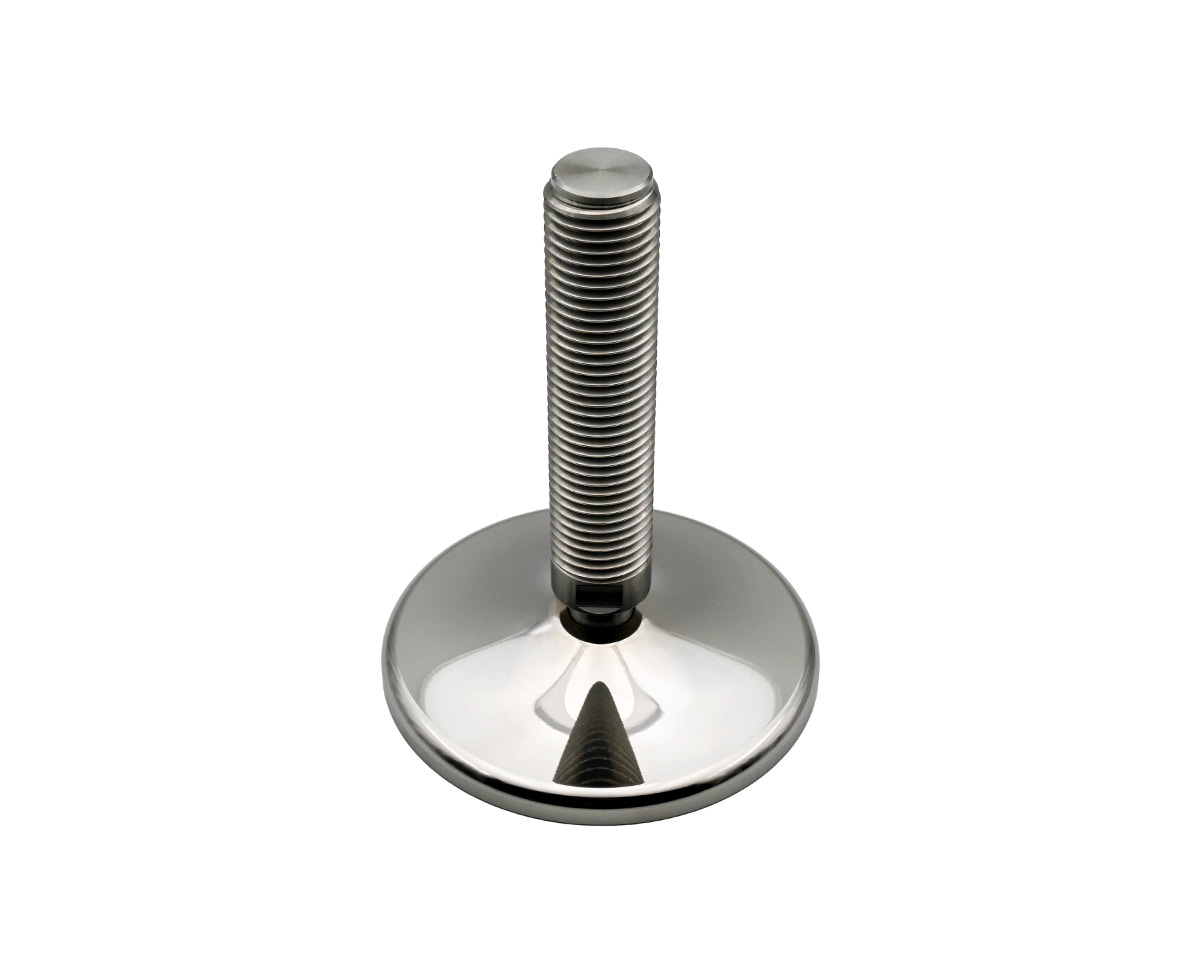

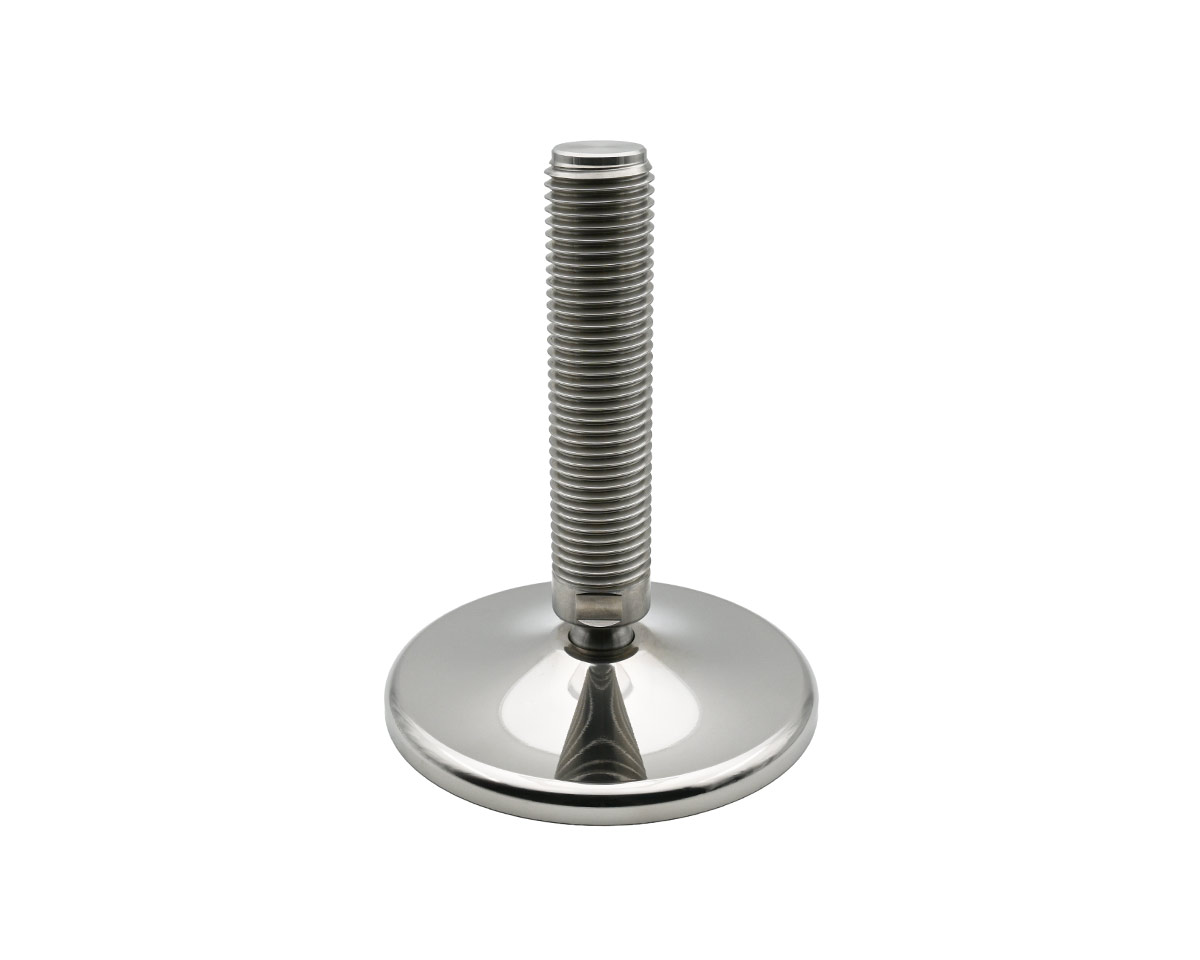

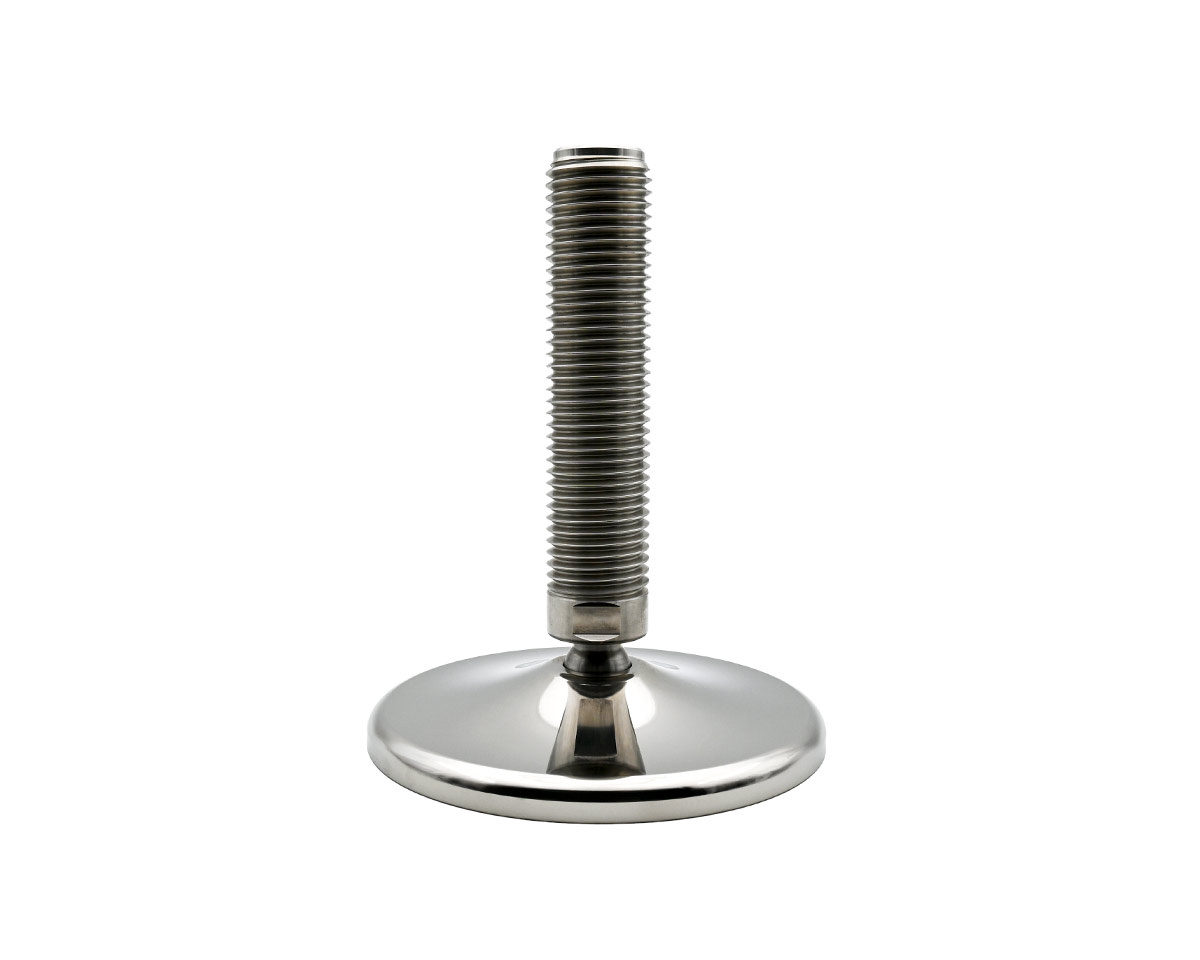

Levelling foot MASSIV Stainless Steel, Ø 159 mm, M36 x 200 mm
Discover the MASSIV Stainless Steel Levelling Foot, featuring a 159 mm diameter and M36 x 200 mm spindle. Engineered for durability with an 80,000 N static load capacity, it ensures precise adjustments within a 30° articulation range. Perfect for professional applications requiring robust support and stability.
| Quantity | Price |
|---|---|
| From 1 |
€106.71*
|
| From 13 |
€100.24*
|
| From 25 |
€93.77*
|
| From 50 |
€89.24*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 36 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |
| Hygiene: | No |

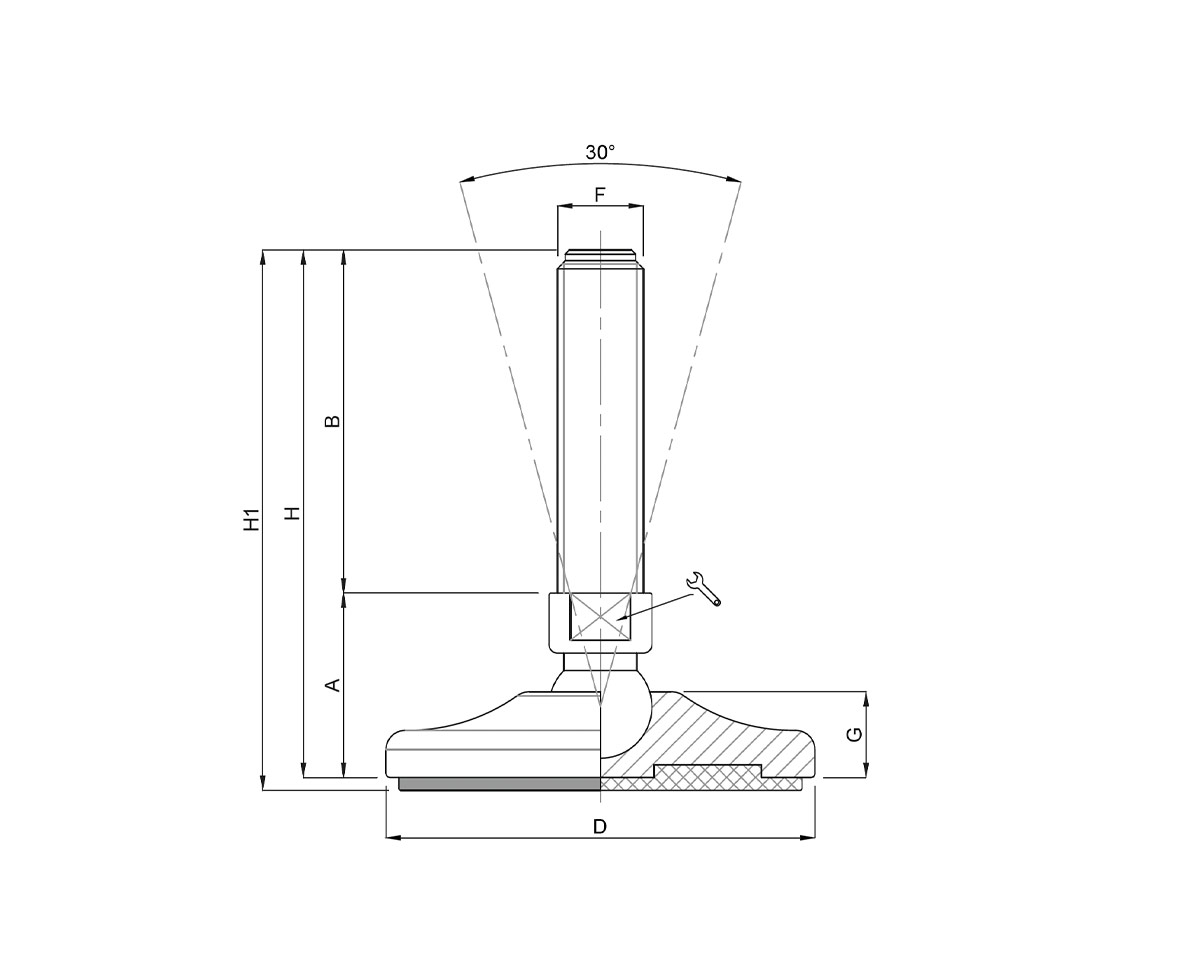

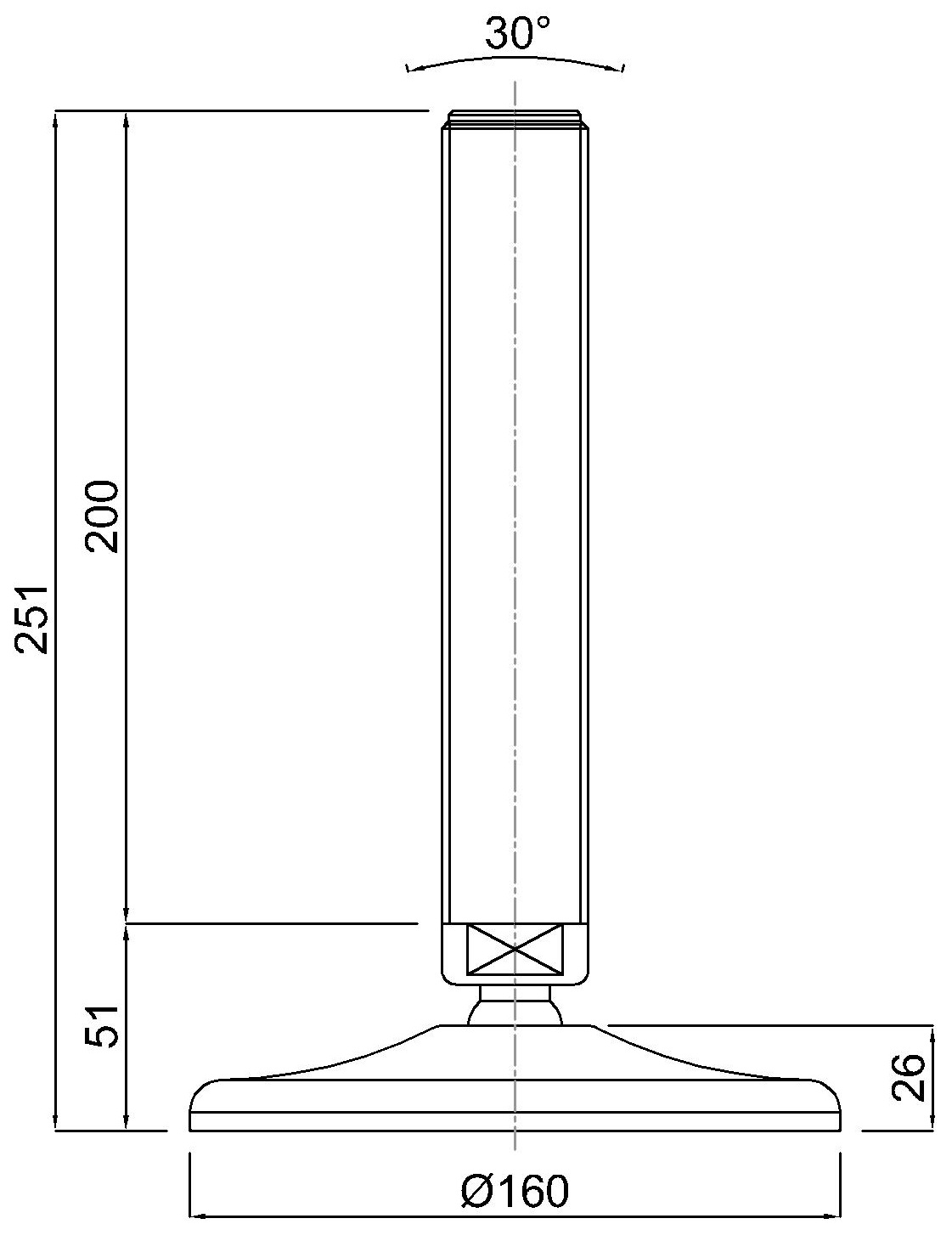

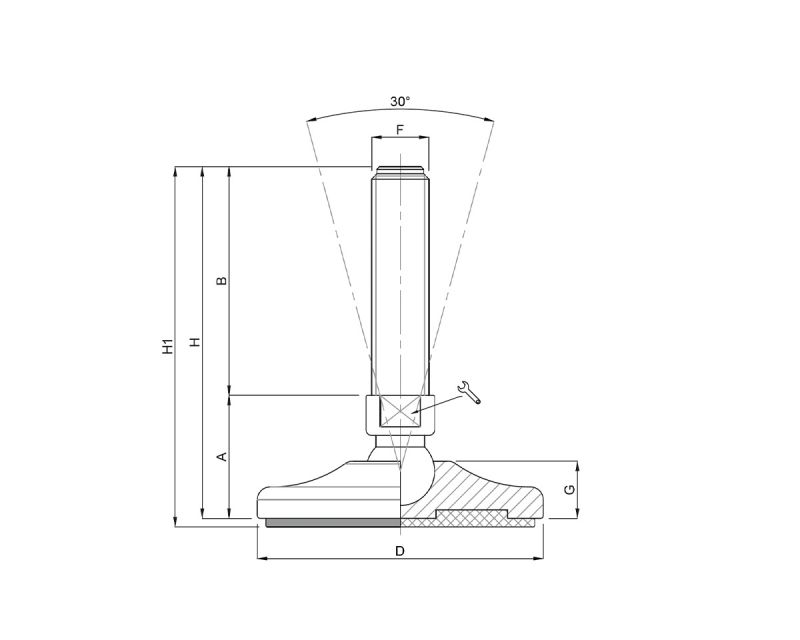

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
