Levelling foot MASSIV Stainless Steel, Ø 159 mm, M36 x 150 mm, NBR
Ensuring stability and support, the MASSIV Stainless Steel Levelling Foot features a robust design with a 159 mm diameter and a static load capacity of 80,000 N. Ideal for heavy-duty applications.
| Quantity | Price |
|---|---|
| From 1 |
€107.07*
|
| From 13 |
€100.58*
|
| From 25 |
€94.09*
|
| From 50 |
€89.55*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 36 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

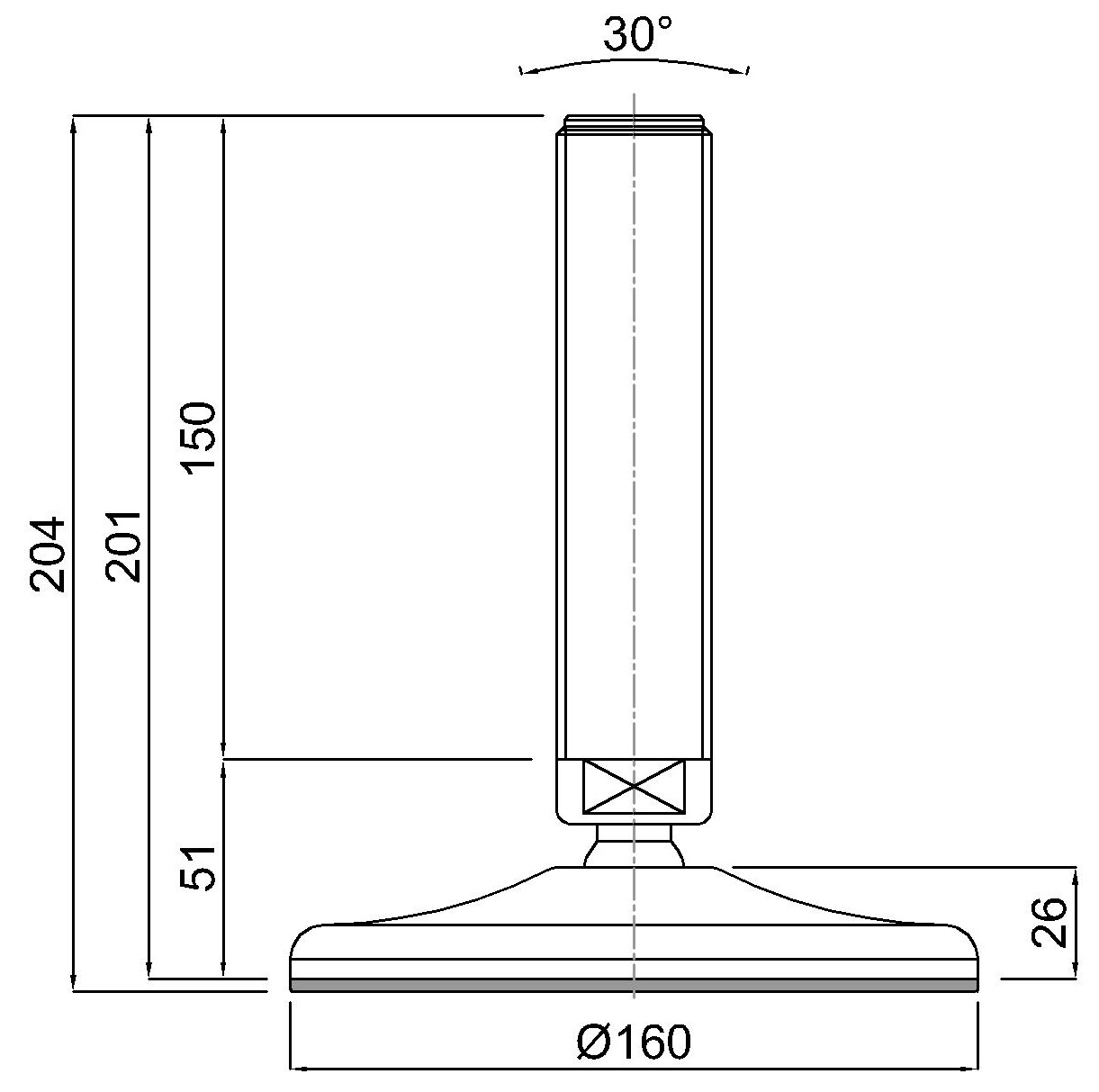

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
