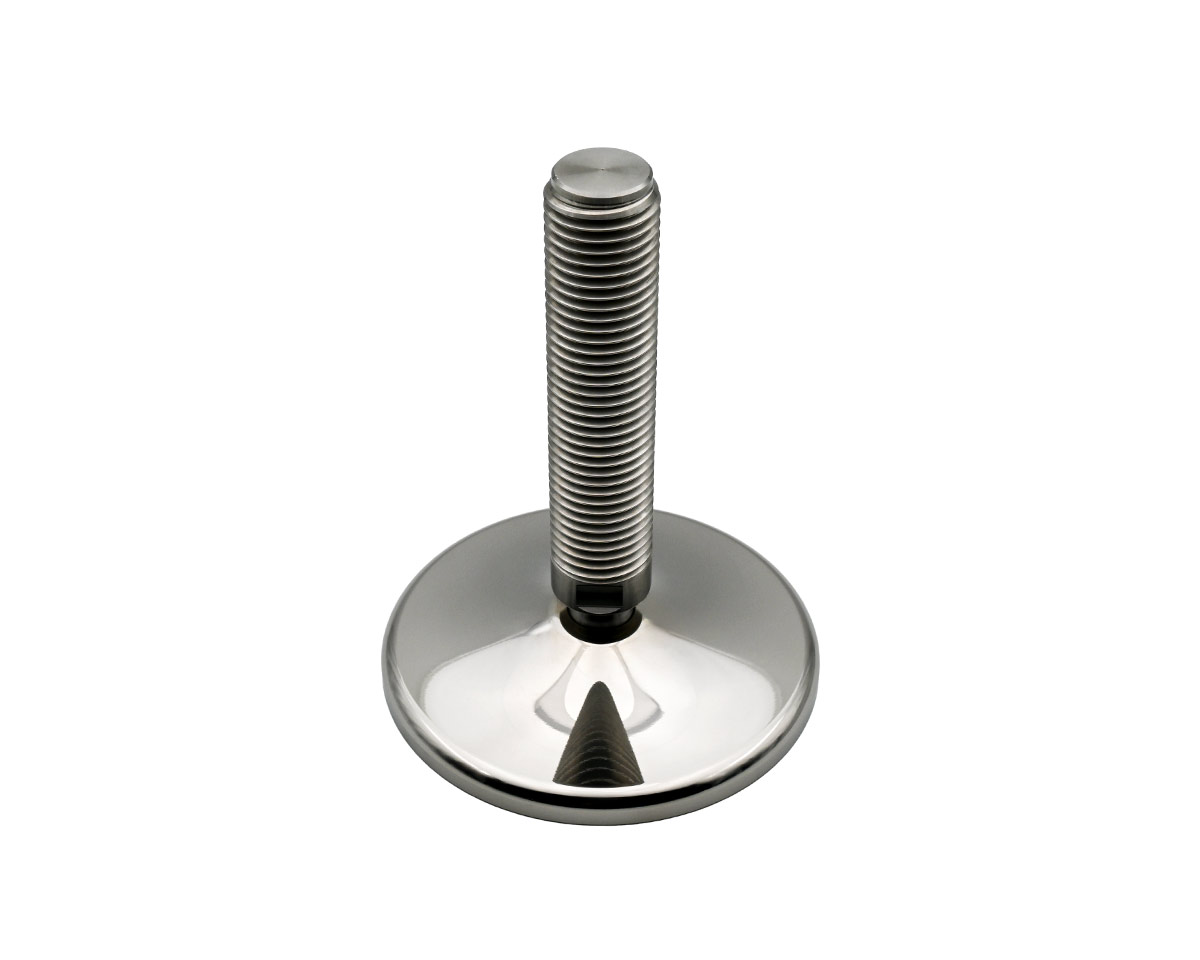

Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 250 mm
EAN
4061408098804
Type
45810970
The MASSIV Stainless Steel Levelling Foot offers exceptional stability with a 159 mm base diameter and a robust M30 spindle, supporting static loads up to 70,000 N. Ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€105.37*
|
| From 13 |
€98.98*
|
| From 25 |
€92.60*
|
| From 50 |
€88.13*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 250 |
| Balancing angle: | 30° |
| Hygiene: | No |

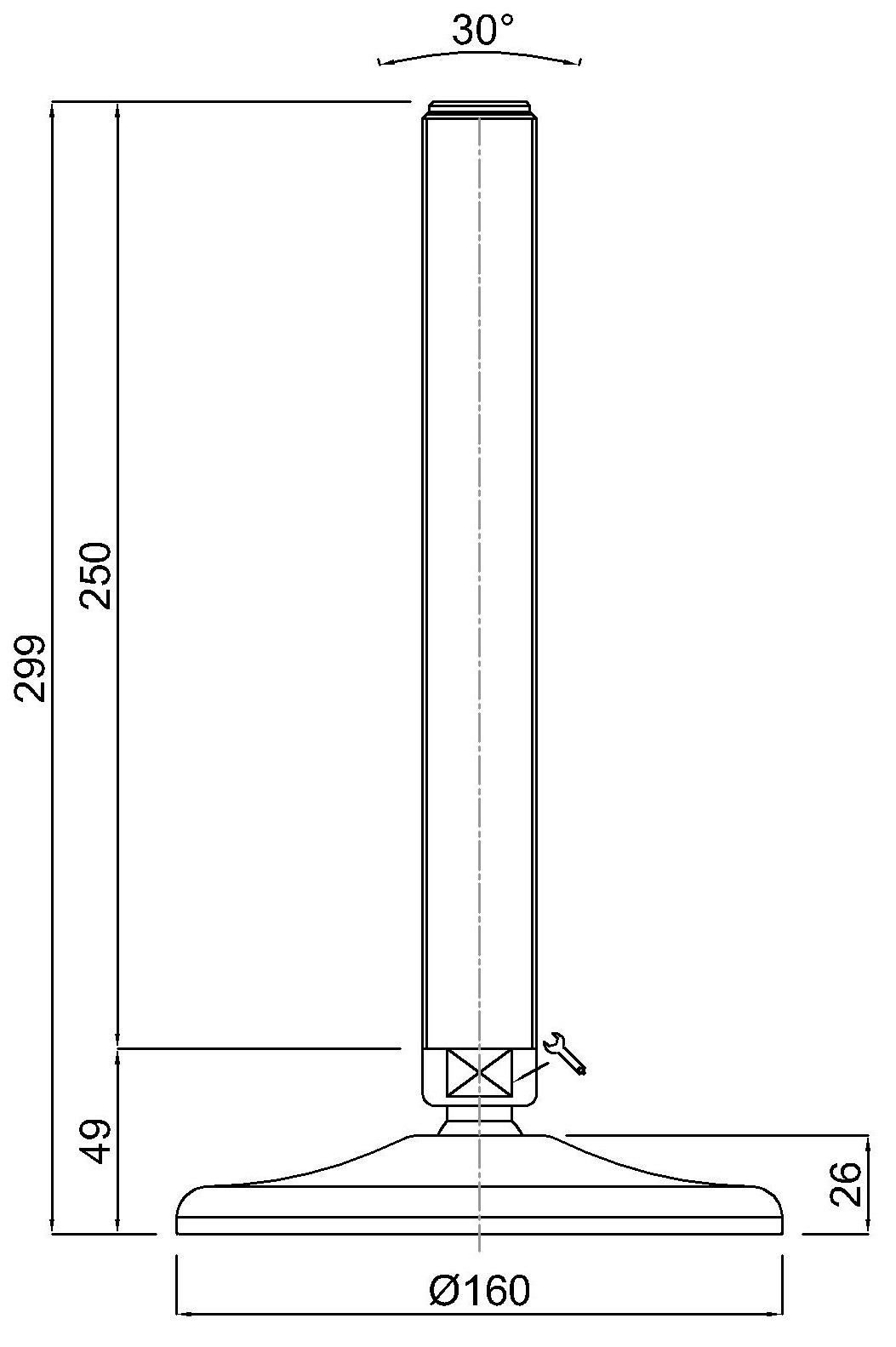

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 250 mm, Stainlees steel, Total height 299 mm, Articulated screw 30°, Static load 70.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
