Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 225 mm, NBR
EAN
4061408098774
Type
45810969
Discover the MASSIV Stainless Steel Levelling Foot, designed for high static loads up to 70,000 N. Featuring a 159 mm diameter base and 30° articulated screw, it ensures stability and precision in industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€108.06*
|
| From 13 |
€101.51*
|
| From 25 |
€94.96*
|
| From 50 |
€90.38*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 225 |
| Balancing angle: | 30° |

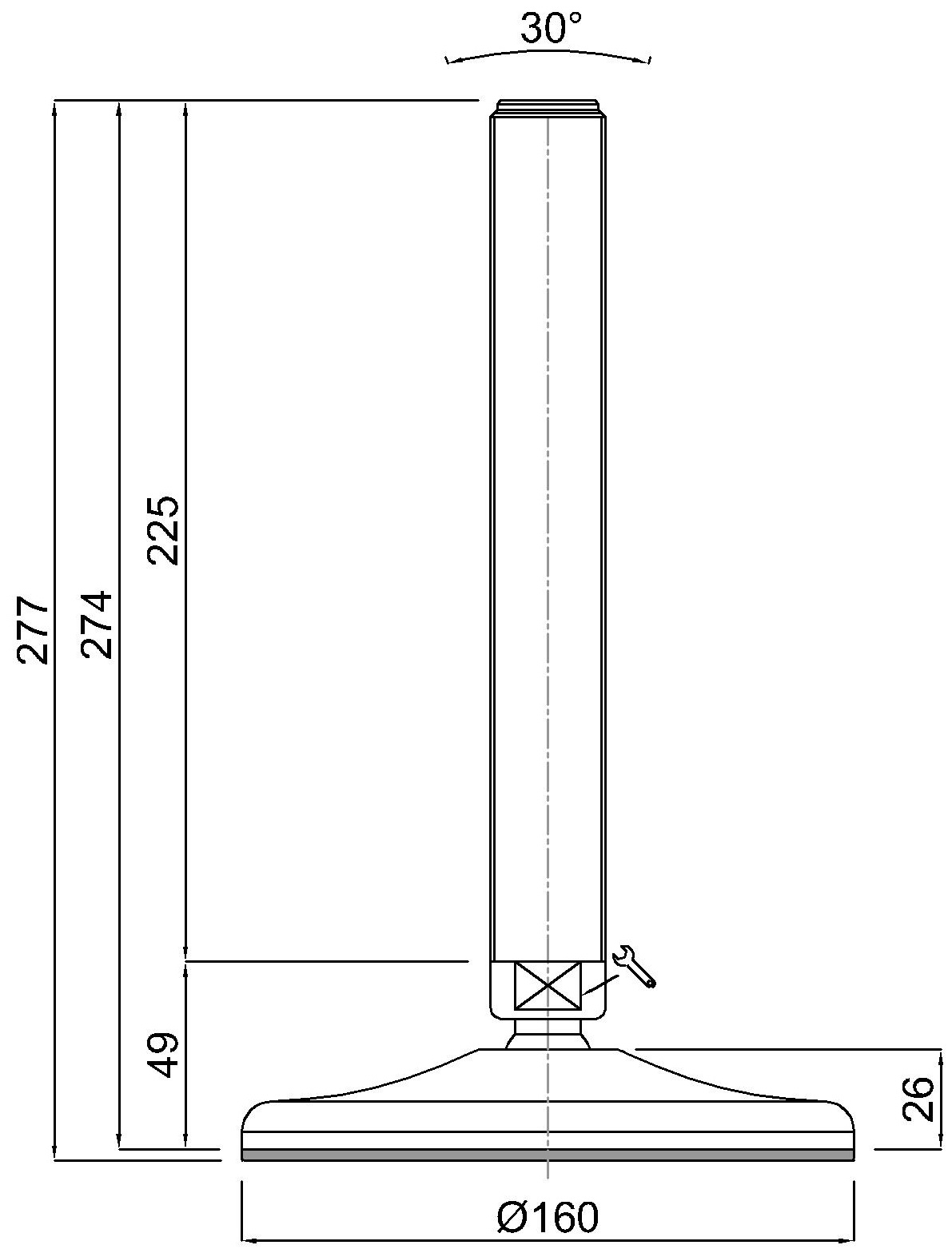

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 225 mm, Stainlees steel, Total height 277 mm, Articulated screw 30°, Antislip NBR black, Static load 70.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
