Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 200 mm, NBR
EAN
4061408098750
Type
45810967
Discover the MASSIV Leveling Foot, crafted from durable stainless steel with a 159 mm diameter. Equipped with a 30° articulated screw and NBR anti-slip pad, it supports static loads up to 70,000 N, ensuring stability in any engineering application.
| Quantity | Price |
|---|---|
| From 1 |
€106.08*
|
| From 13 |
€99.65*
|
| From 25 |
€93.22*
|
| From 50 |
€88.72*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |

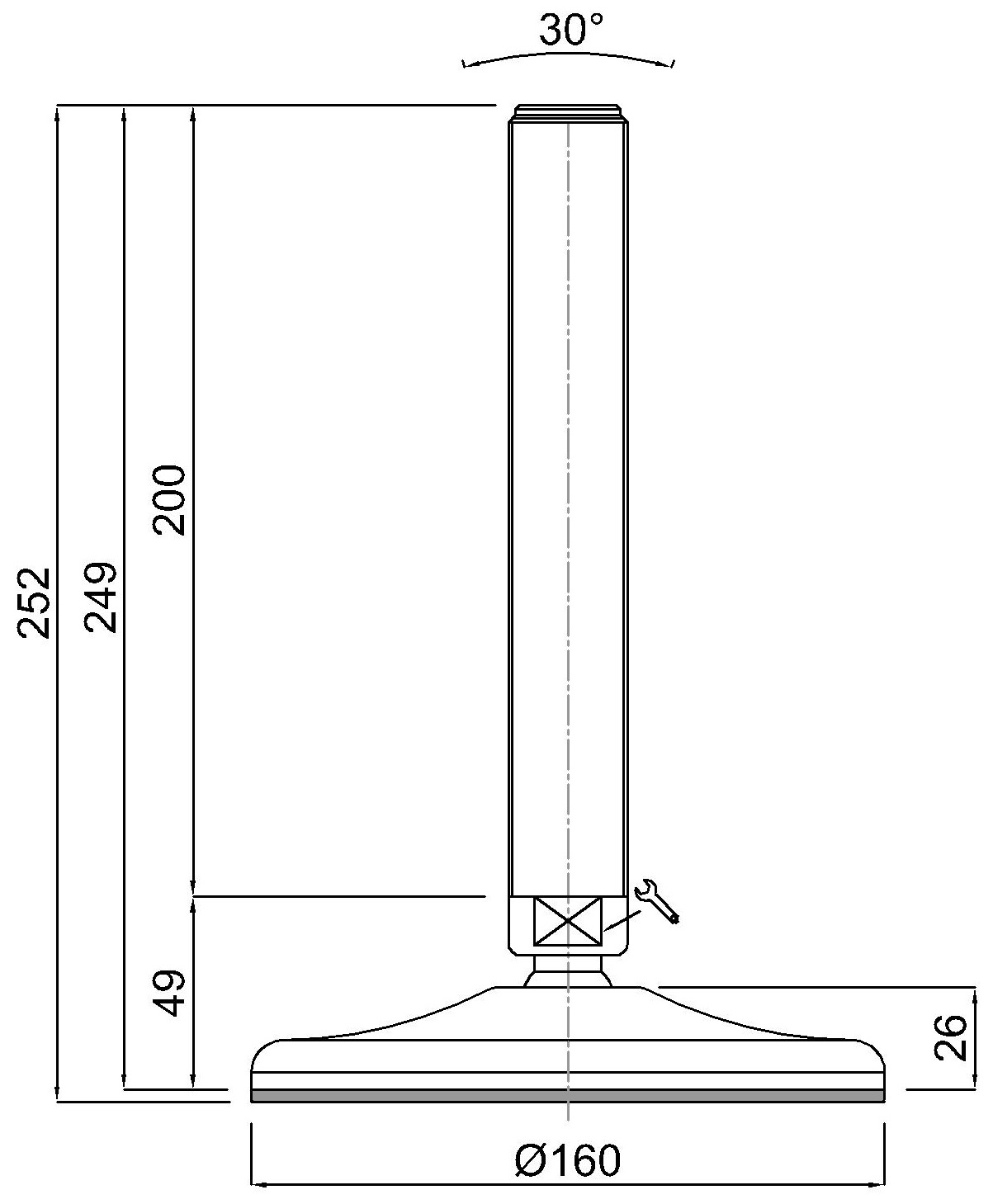

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 200 mm, Stainlees steel, Total height 252 mm, Articulated screw 30°, Antislip NBR black, Static load 70.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
