Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 175 mm, NBR
EAN
4061408098736
Type
45810965
Introducing the MASSIV Stainless Steel Leveling Foot: engineered for superior stability with a static load capacity of 70,000 N, featuring an articulated screw for optimal adjustment and a durable NBR anti-slip surface.
| Quantity | Price |
|---|---|
| From 1 |
€104.63*
|
| From 13 |
€98.29*
|
| From 25 |
€91.94*
|
| From 50 |
€87.51*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |

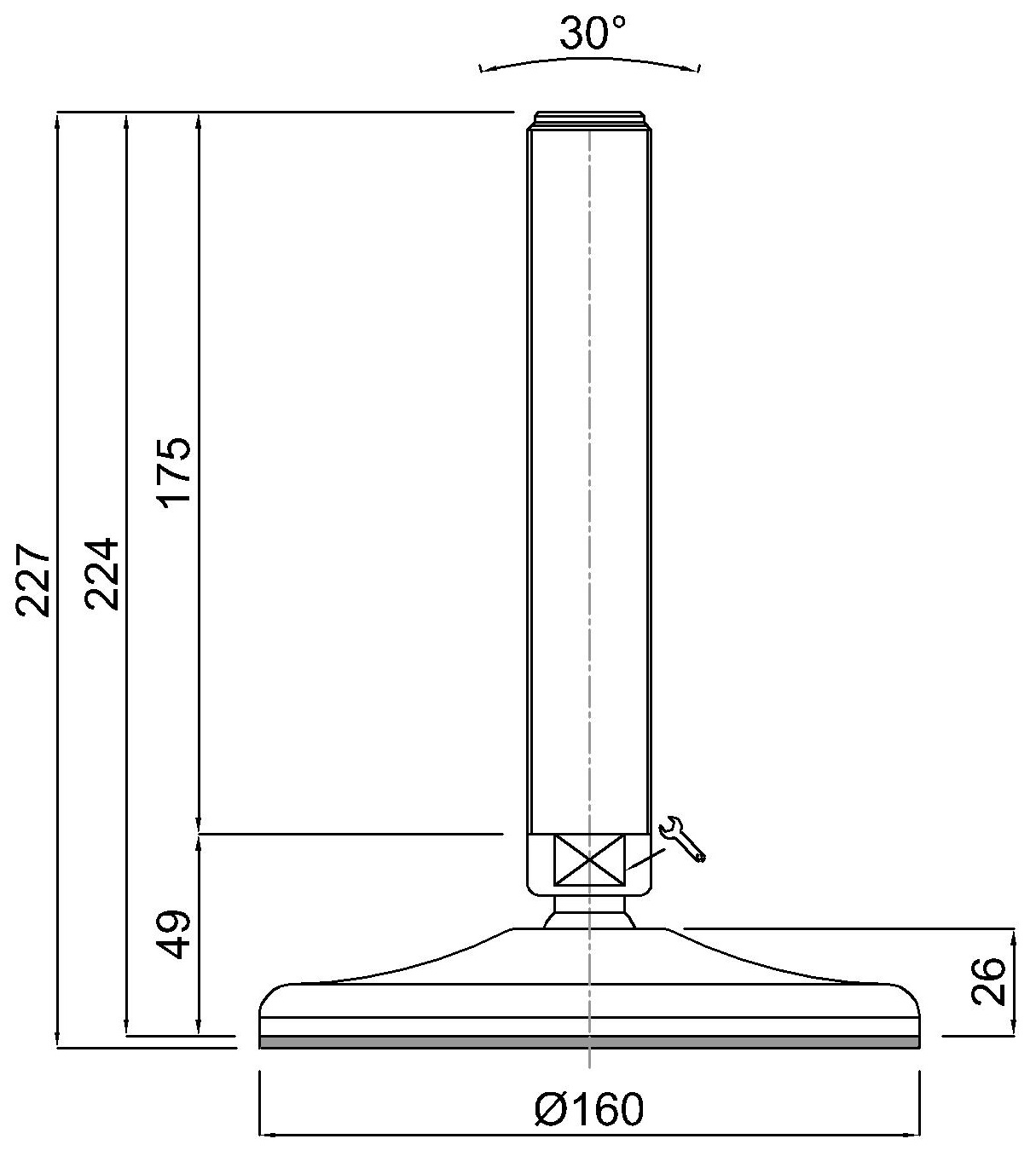

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M30 x 175 mm, Stainlees steel, Total height 227 mm, Articulated screw 30°, Antislip NBR black, Static load 70.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
