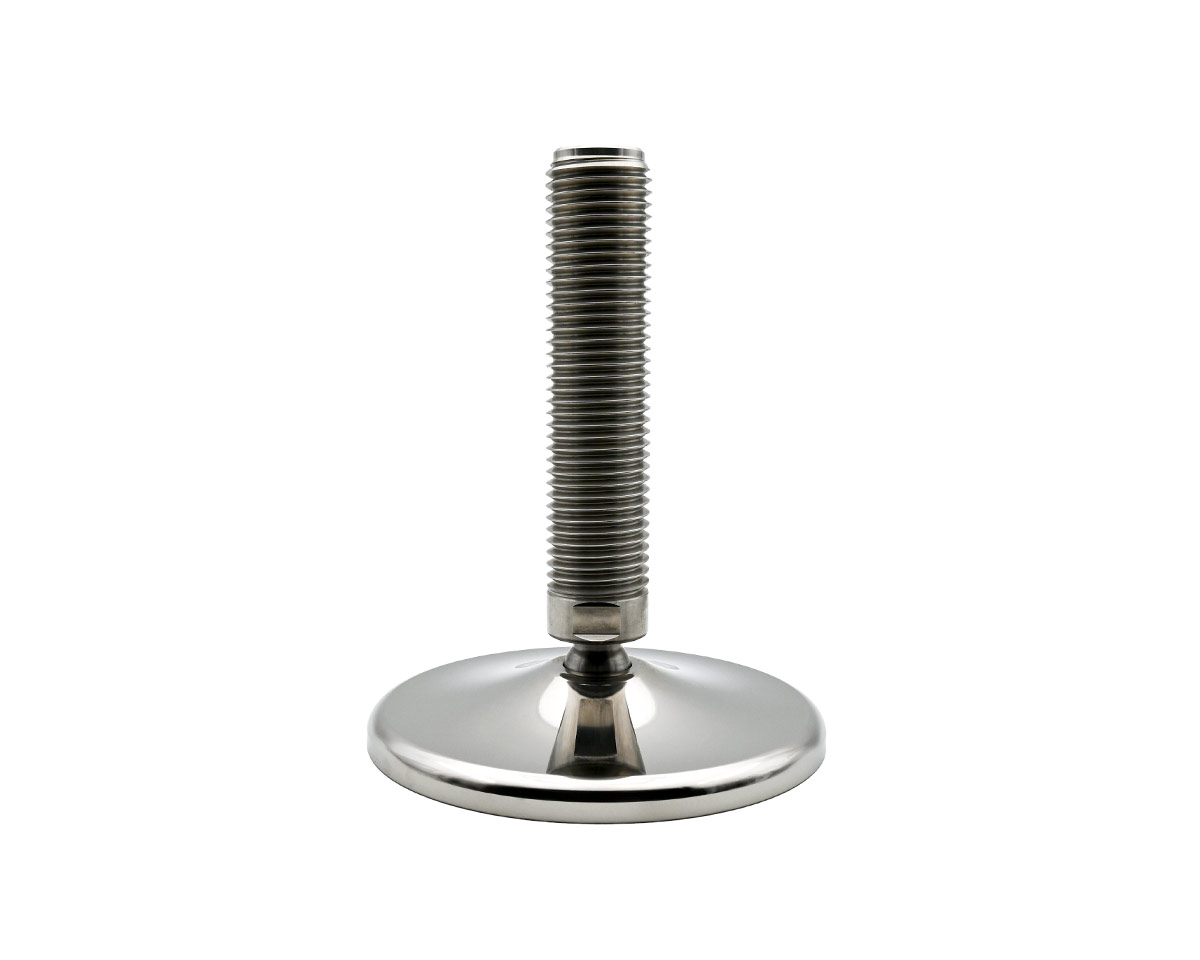

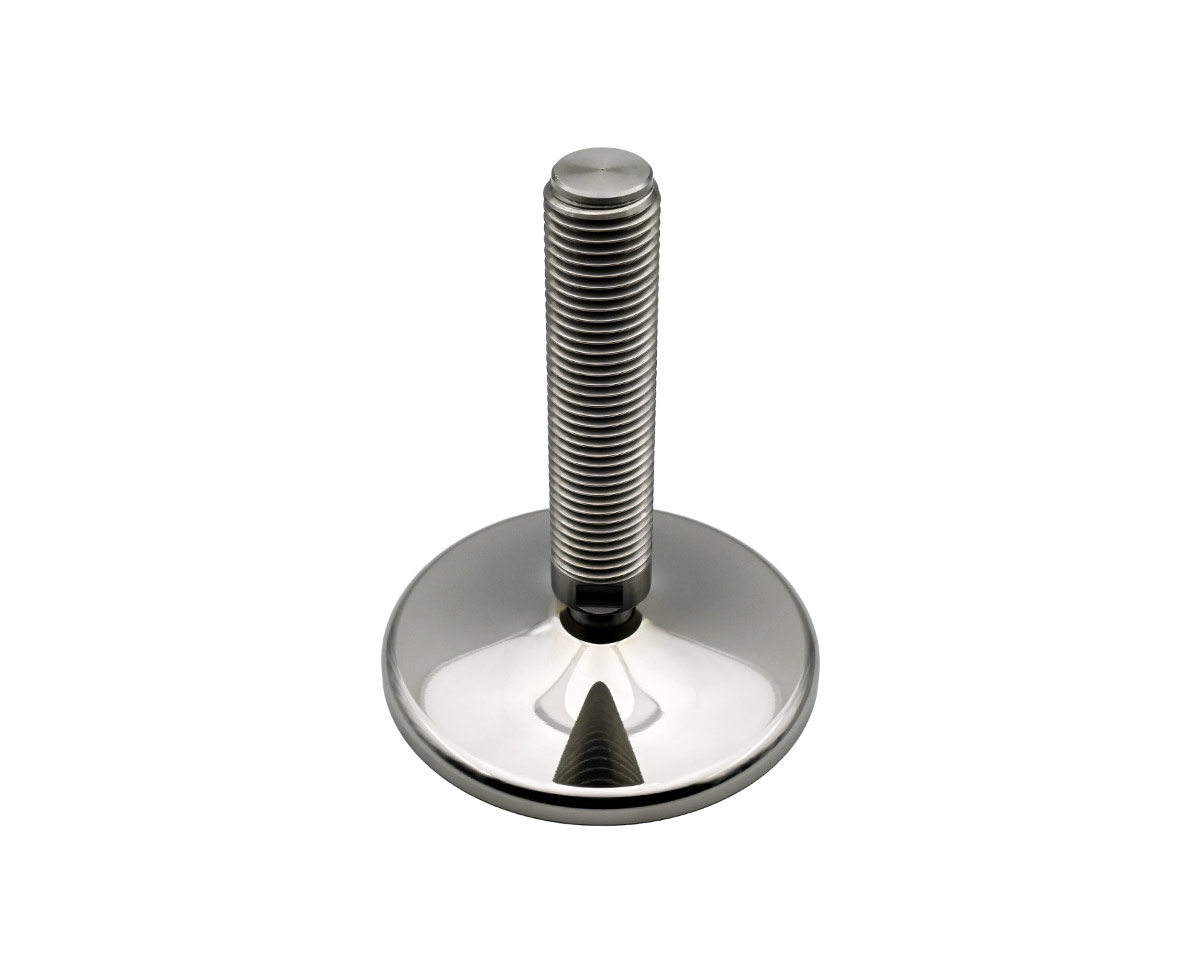

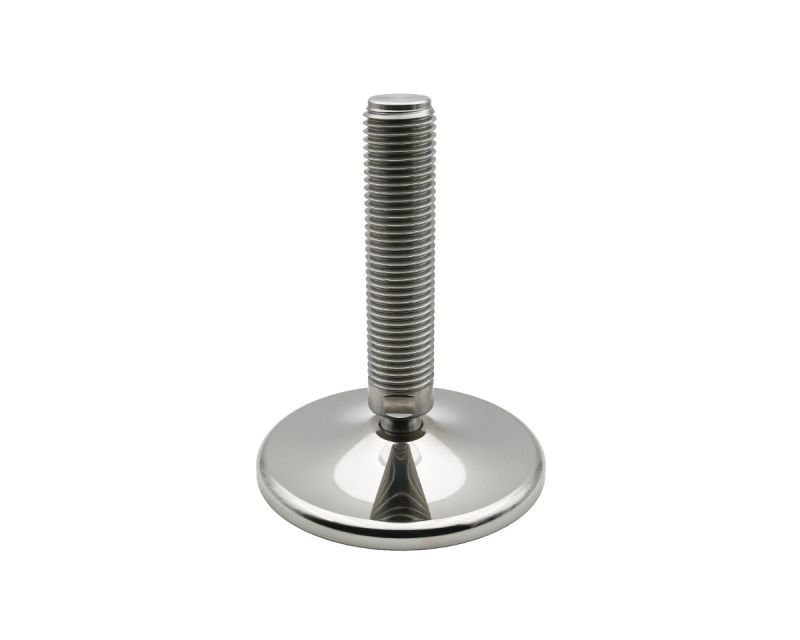

Levelling foot MASSIV Stainless Steel, Ø 159 mm, M24 x 100 mm
Discover the MASSIV Stainless Steel Levelling Foot, designed for robust stability and precise adjustments. With a diameter of 159 mm and a static load capacity of 60,000 N, it features a 30° articulated screw for optimal leveling.
| Quantity | Price |
|---|---|
| From 1 |
€93.52*
|
| From 13 |
€87.85*
|
| From 25 |
€82.19*
|
| From 50 |
€78.22*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |

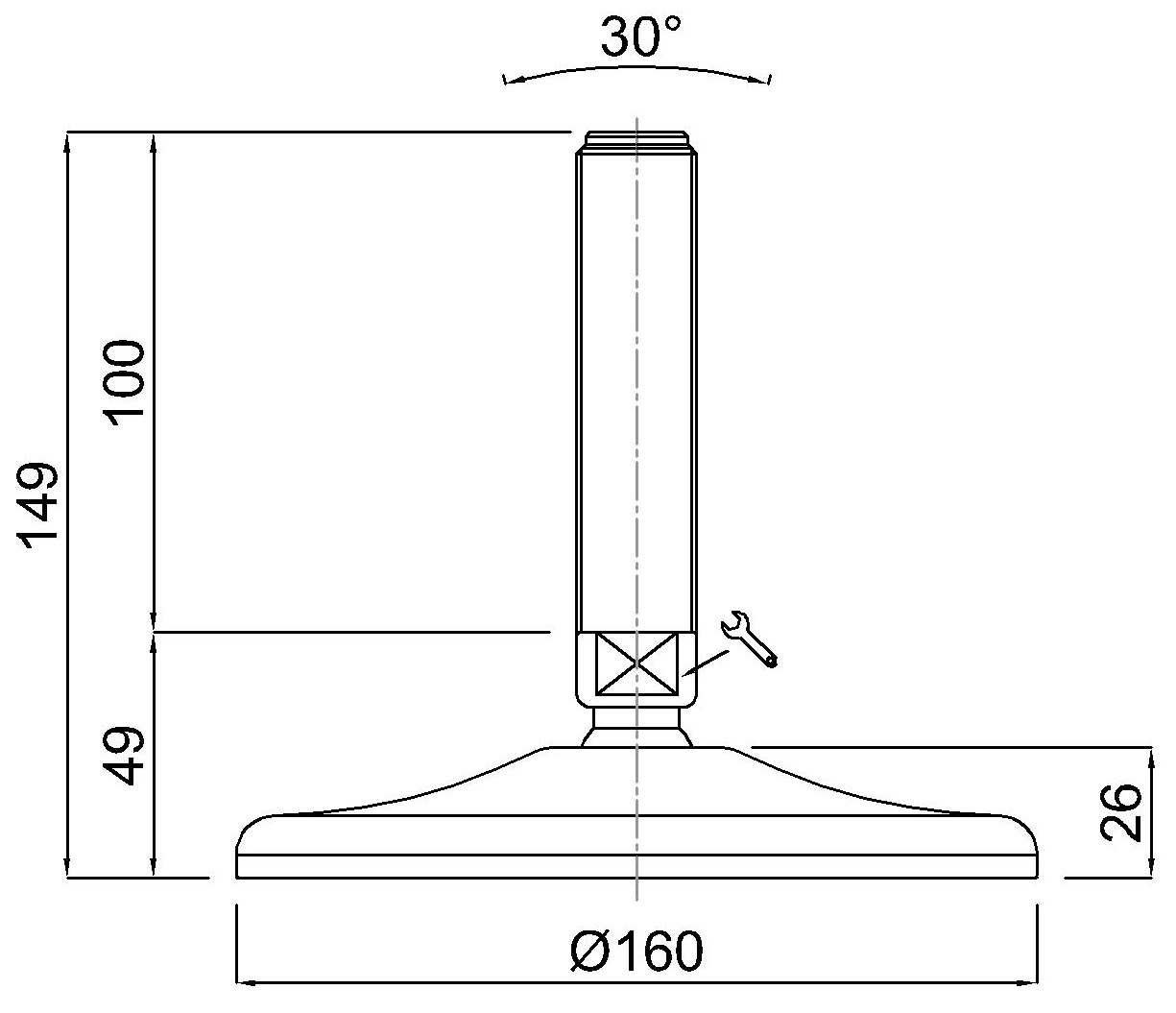

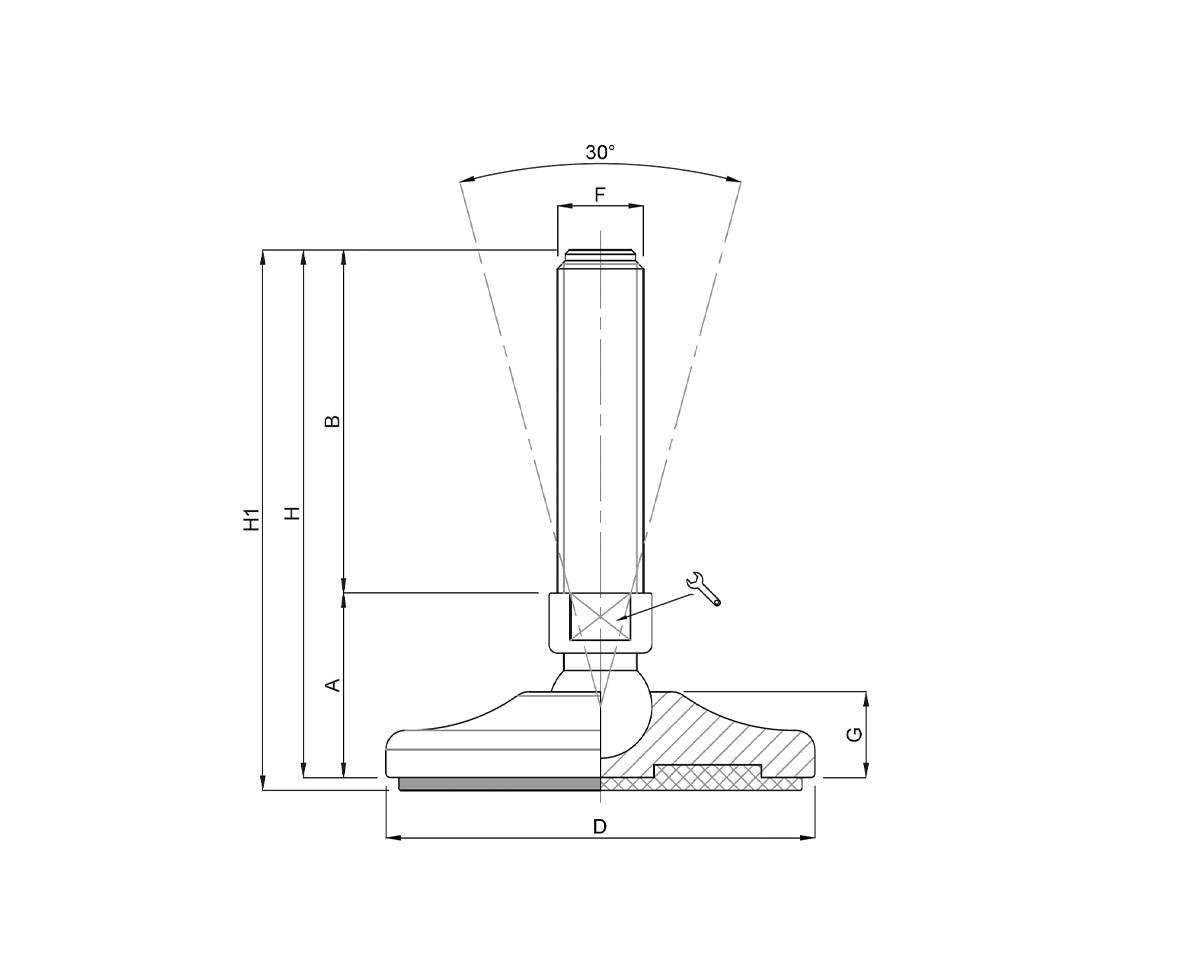

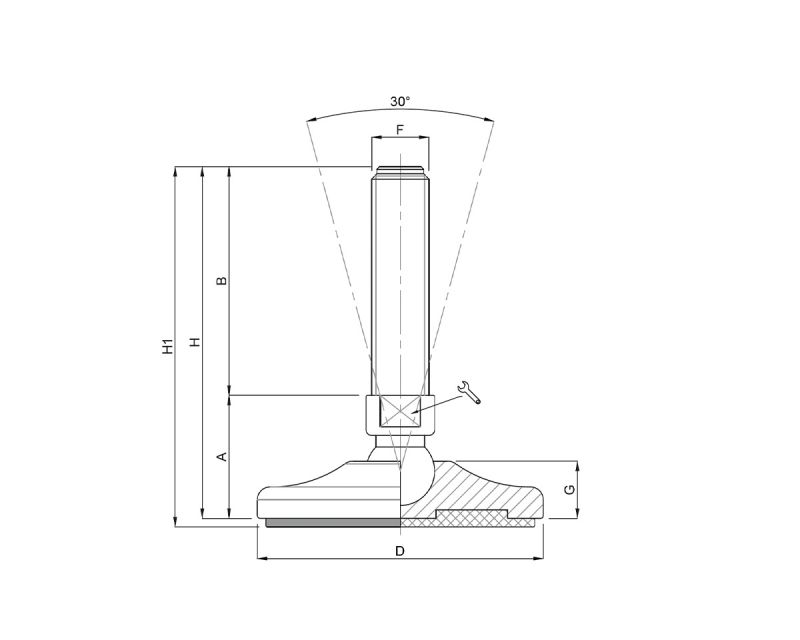

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
