Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 200 mm
EAN
4061408098545
Type
45810944
Enhance stability with the MASSIV Stainless Steel Levelling Foot, featuring a diameter of 159 mm, an M20 x 200 mm spindle, and a static load capacity of 50,000 N, perfect for industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€99.41*
|
| From 13 |
€93.39*
|
| From 25 |
€87.36*
|
| From 50 |
€83.15*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |
| Hygiene: | No |

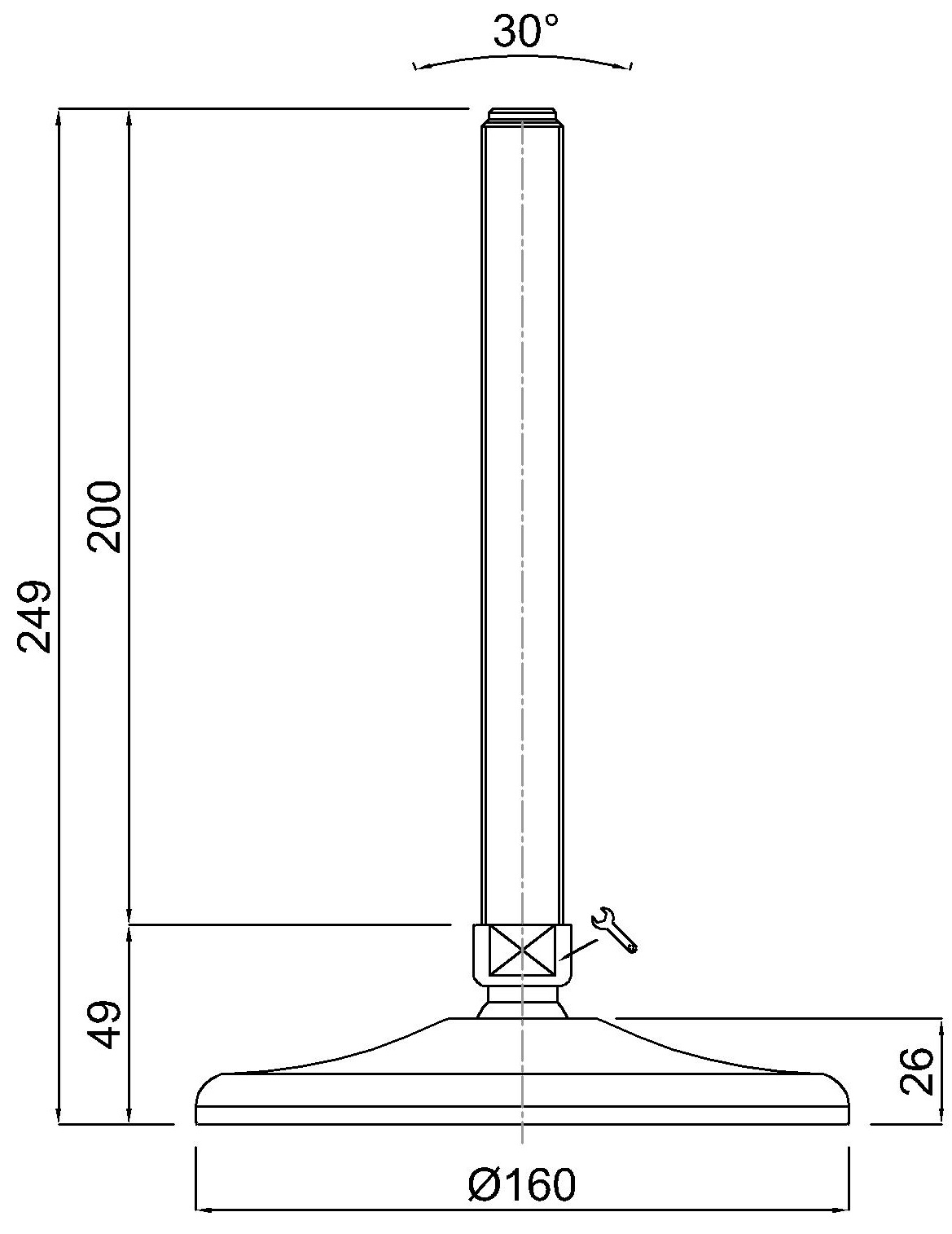

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 200 mm, Stainlees steel, Total height 249 mm, Articulated screw 30°, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
