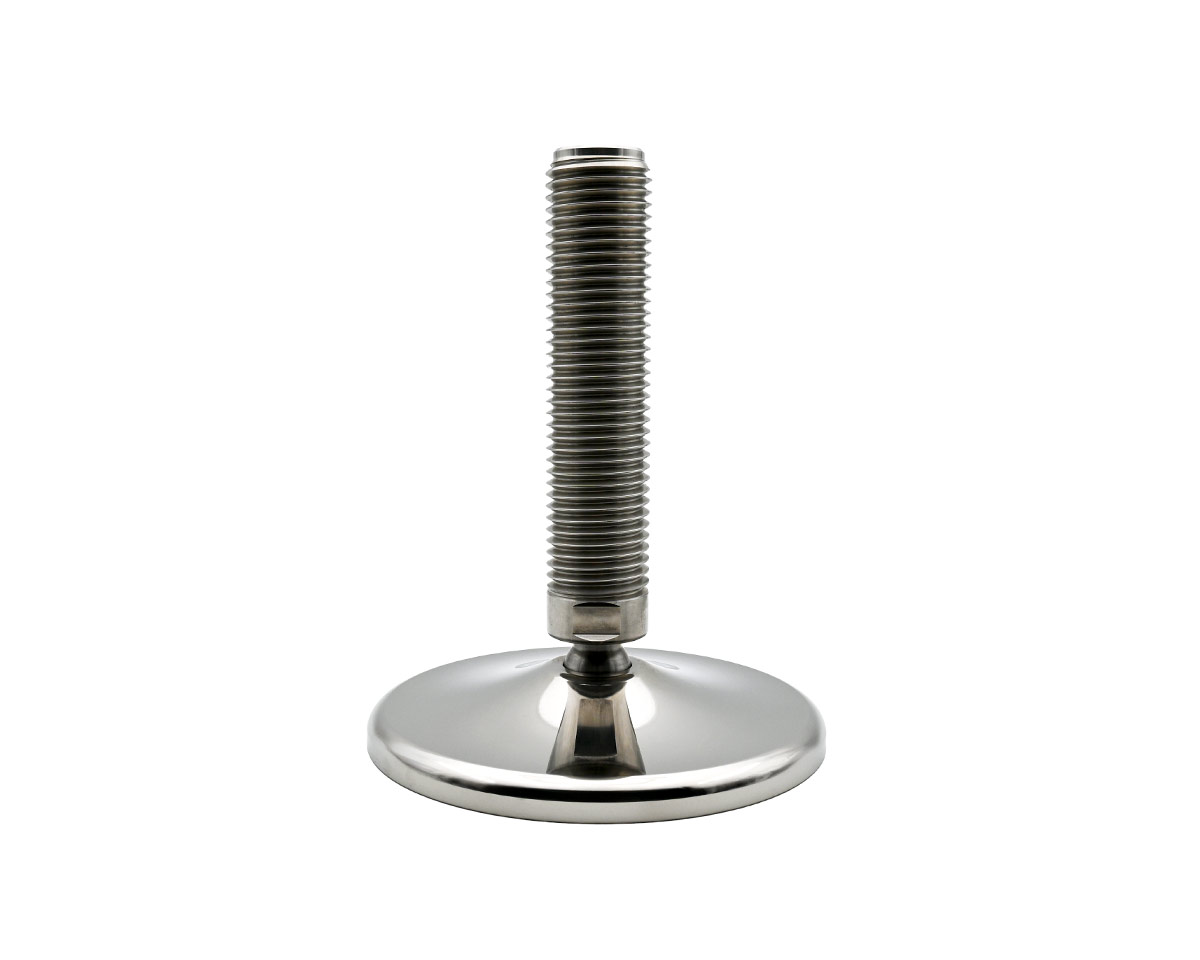

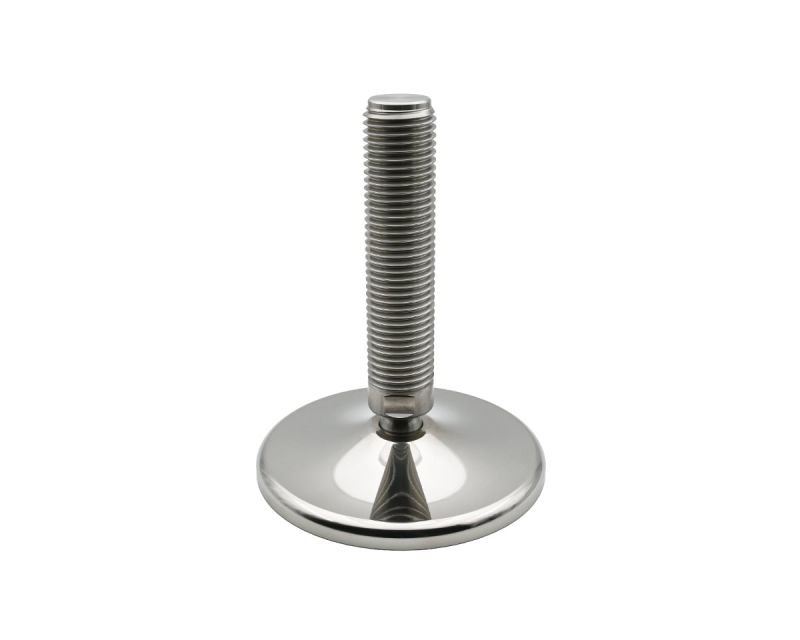

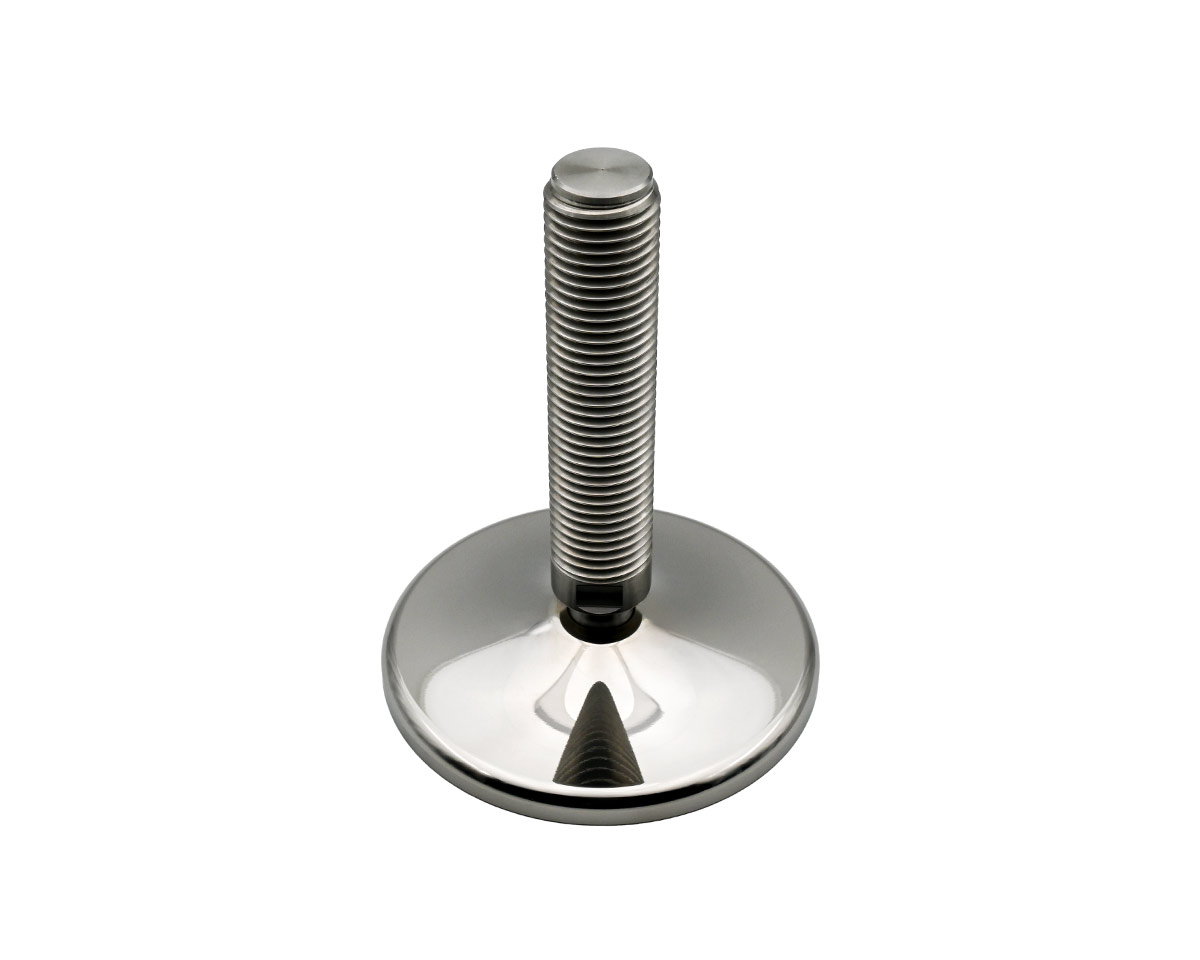

Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 175 mm
EAN
4061408098521
Type
45810942
Optimize your machinery with the MASSIV Stainless Steel Levelling Foot. Featuring a 159 mm diameter and a robust 50,000 N static load capacity, it ensures stability and precision alignment even at a 30° angle.
| Quantity | Price |
|---|---|
| From 1 |
€96.56*
|
| From 13 |
€90.71*
|
| From 25 |
€84.85*
|
| From 50 |
€80.76*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |
| Hygiene: | No |

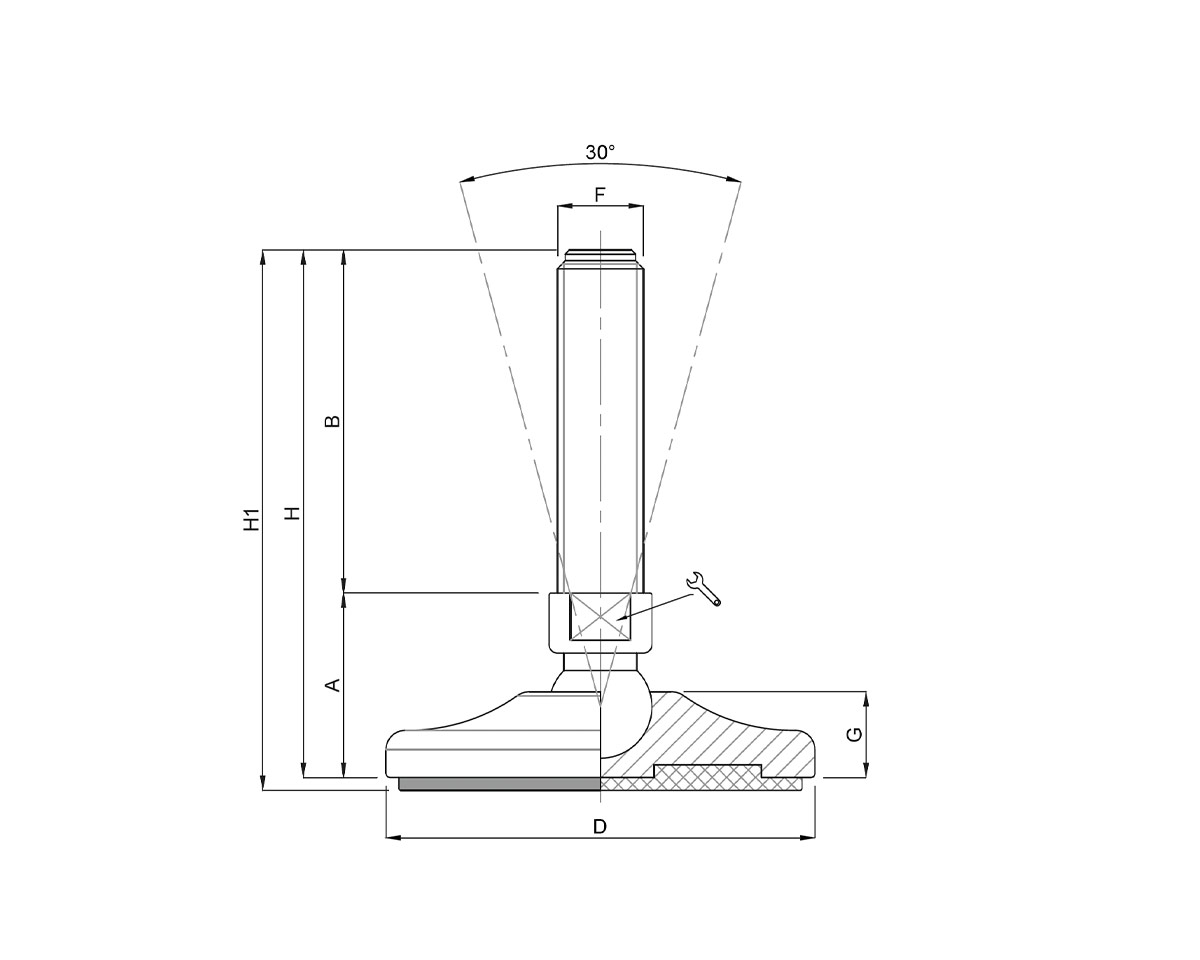

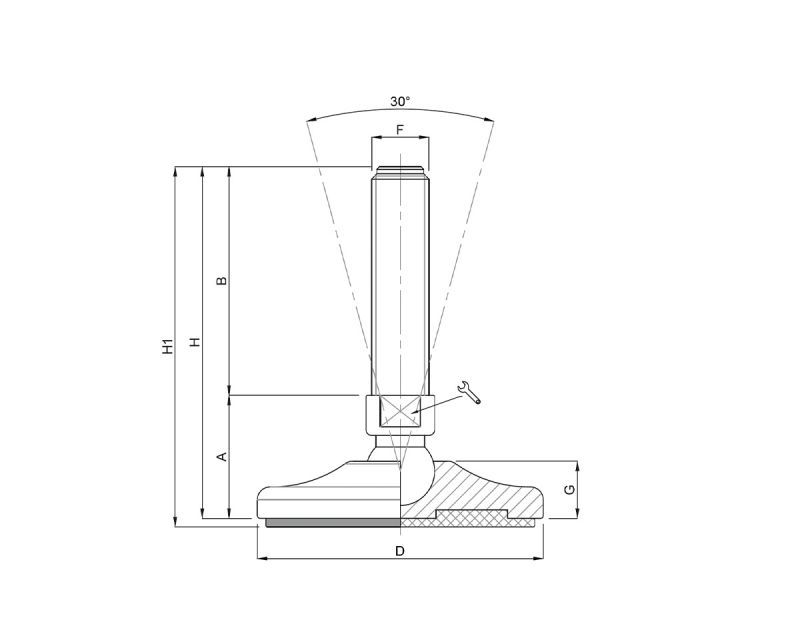

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 175 mm, Stainlees steel, Total height 224 mm, Articulated screw 30°, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
