Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 125 mm
EAN
4061408098484
Type
45810938
Discover the MASSIV Stainless Steel Levelling Foot, designed for precision support with a 159 mm diameter and a robust static load capacity of 50,000 N. Ideal for heavy-duty applications, it features an articulated screw for a 30° adjustment, ensuring optimal stability and performance.
| Quantity | Price |
|---|---|
| From 1 |
€94.13*
|
| From 13 |
€88.43*
|
| From 25 |
€82.72*
|
| From 50 |
€78.73*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

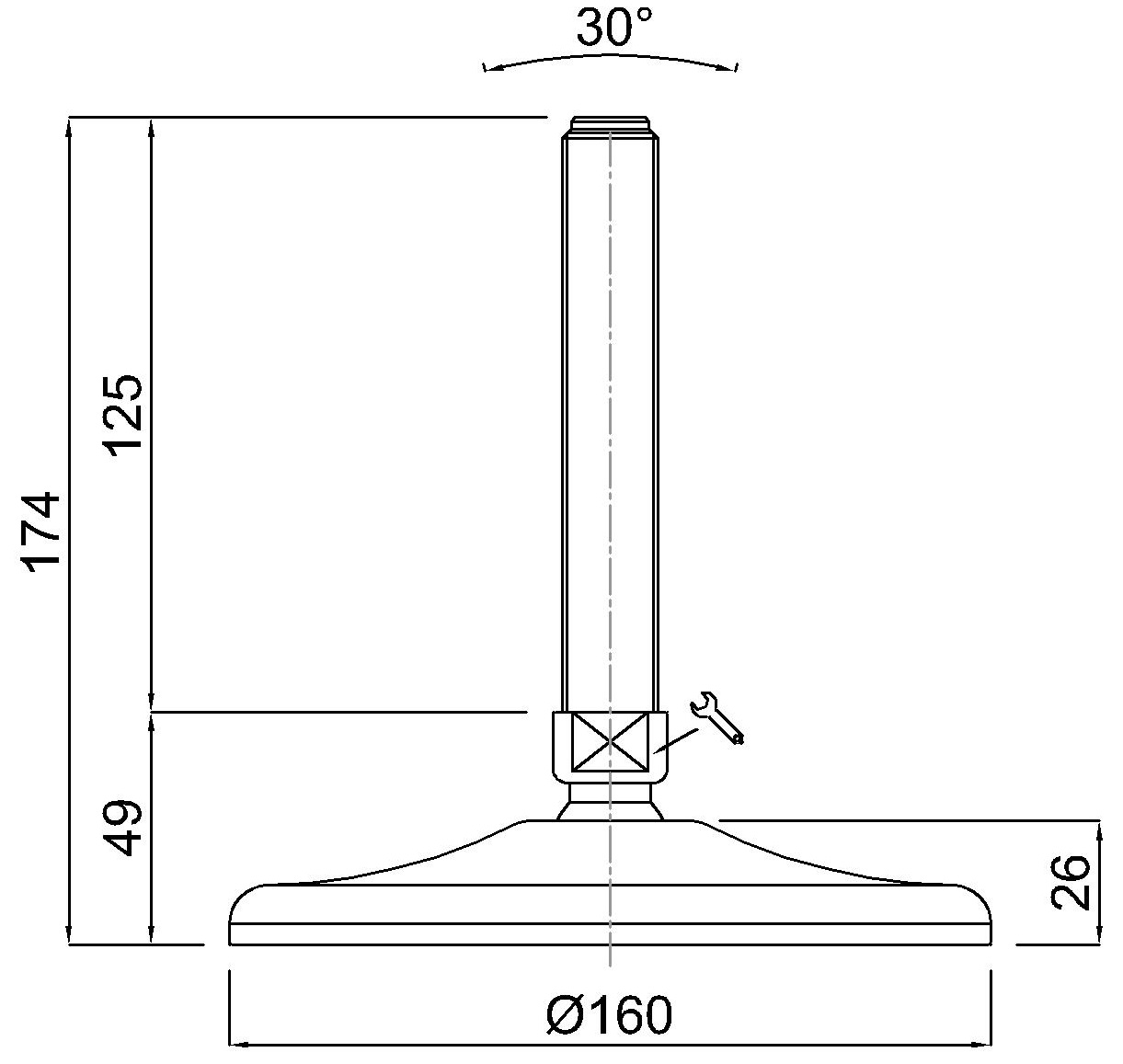

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 125 mm, Stainlees steel, Total height 174 mm, Articulated screw 30°, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
