Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 100 mm
Introducing the MASSIV Stainless Steel Levelling Foot: engineered for precision with a 159 mm diameter and a robust static load capacity of 50,000 N. Ideal for versatile applications, it features a 30° articulated screw for optimal leveling adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€93.52*
|
| From 13 |
€87.85*
|
| From 25 |
€82.19*
|
| From 50 |
€78.22*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |

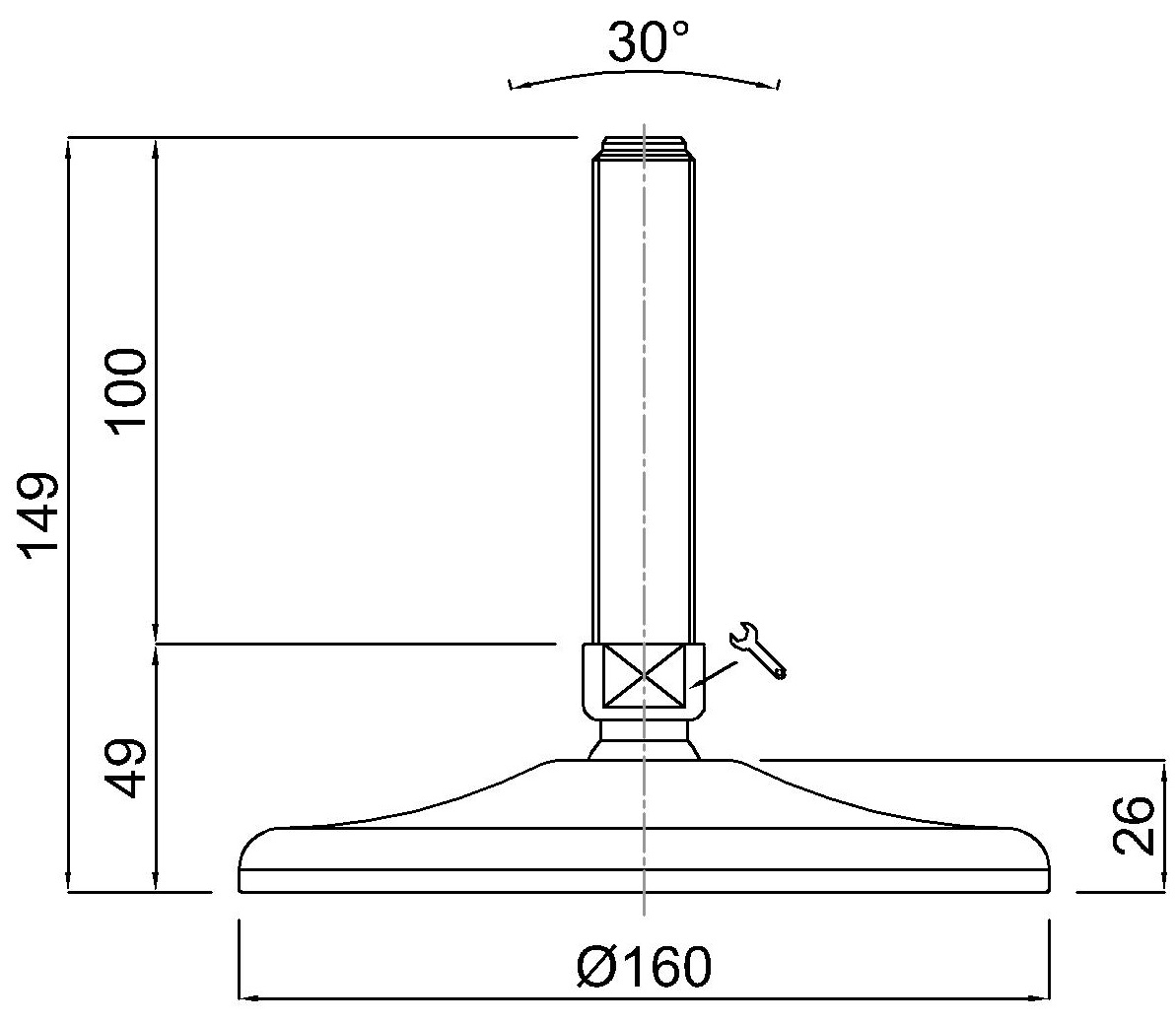

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
