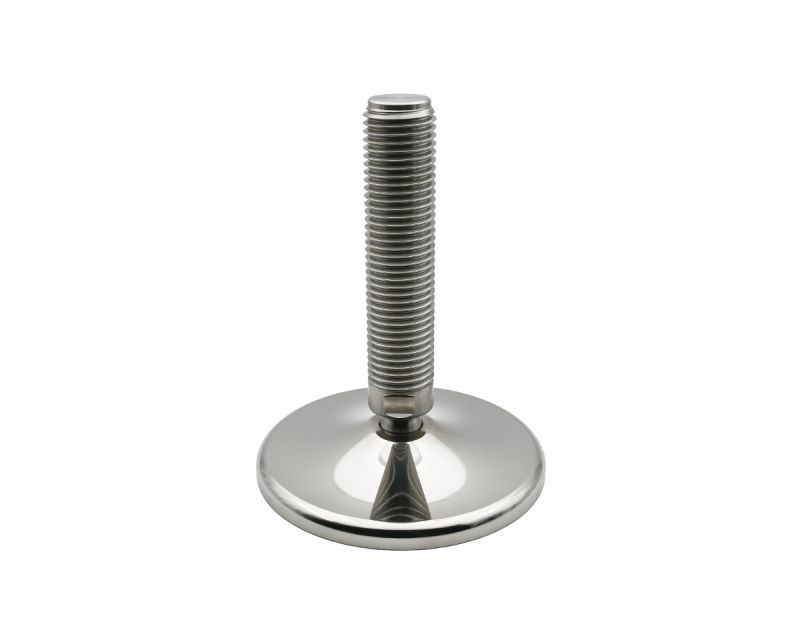

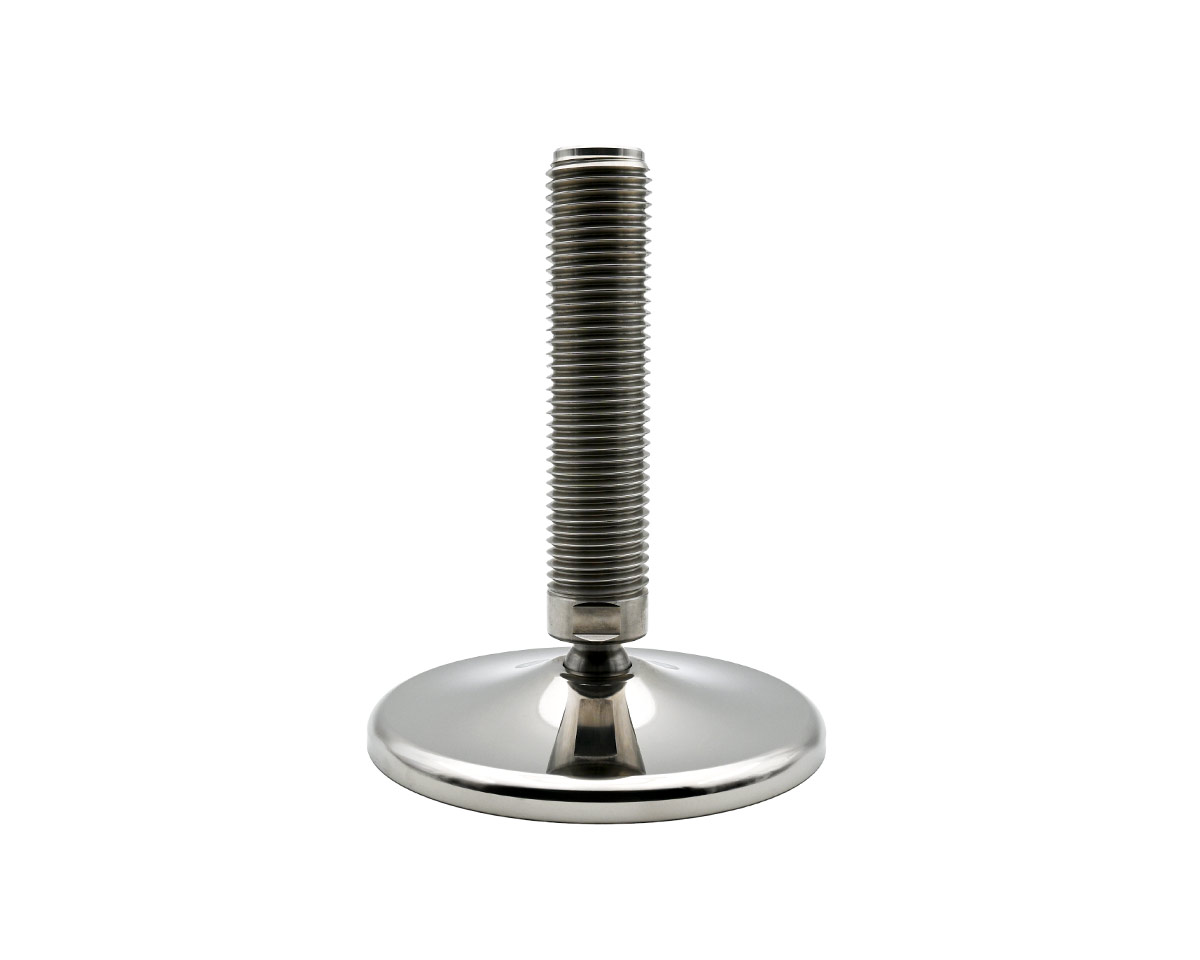

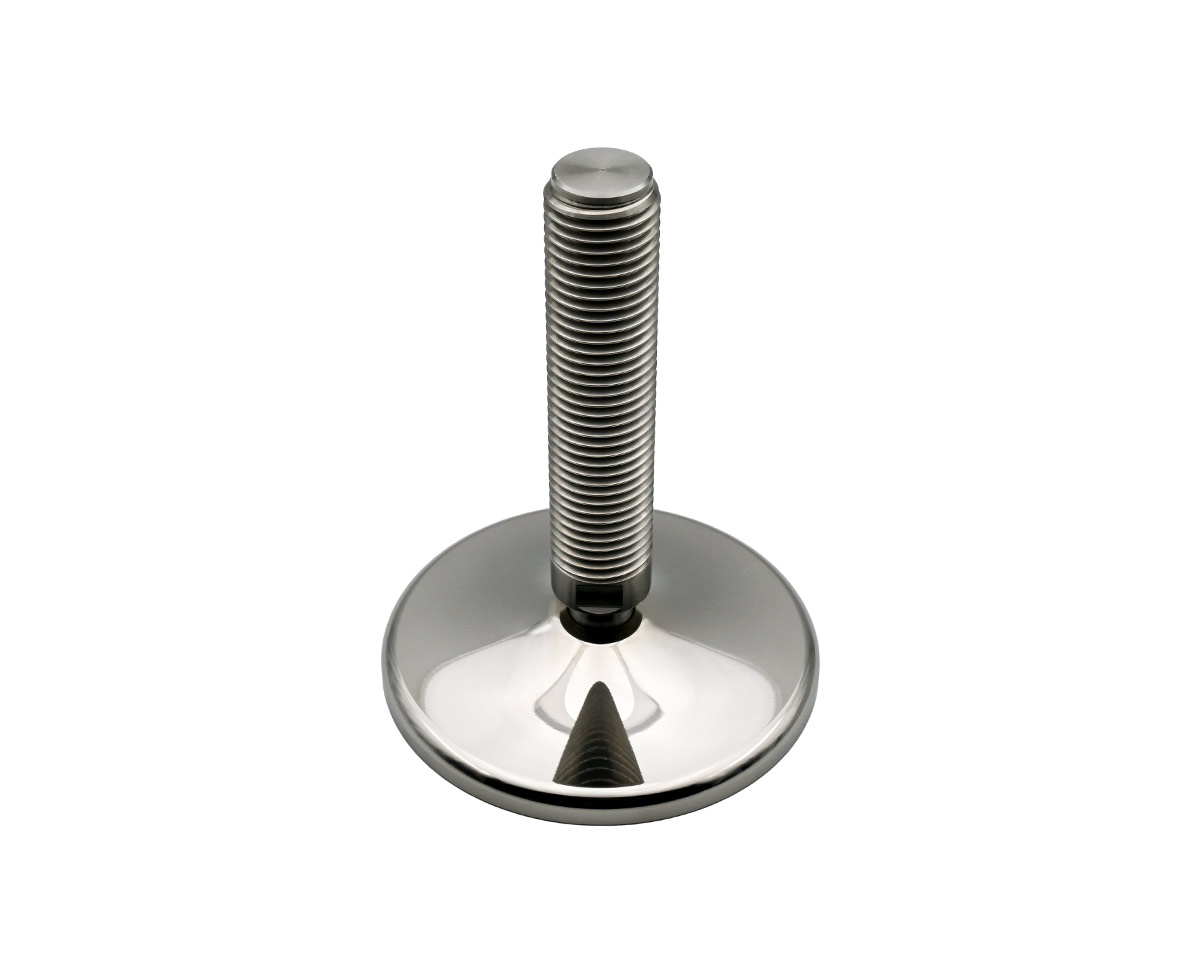

Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 75 mm
EAN
4061408098446
Type
45810934
Discover the MASSIV Stainless Steel levelling foot, featuring a robust design with a diameter of 159 mm and a static load capacity of 50,000 N. Ideal for precise adjustments, this foot offers an articulated screw angle of 30° for versatile applications.
| Quantity | Price |
|---|---|
| From 1 |
€91.10*
|
| From 13 |
€85.58*
|
| From 25 |
€80.05*
|
| From 50 |
€76.19*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

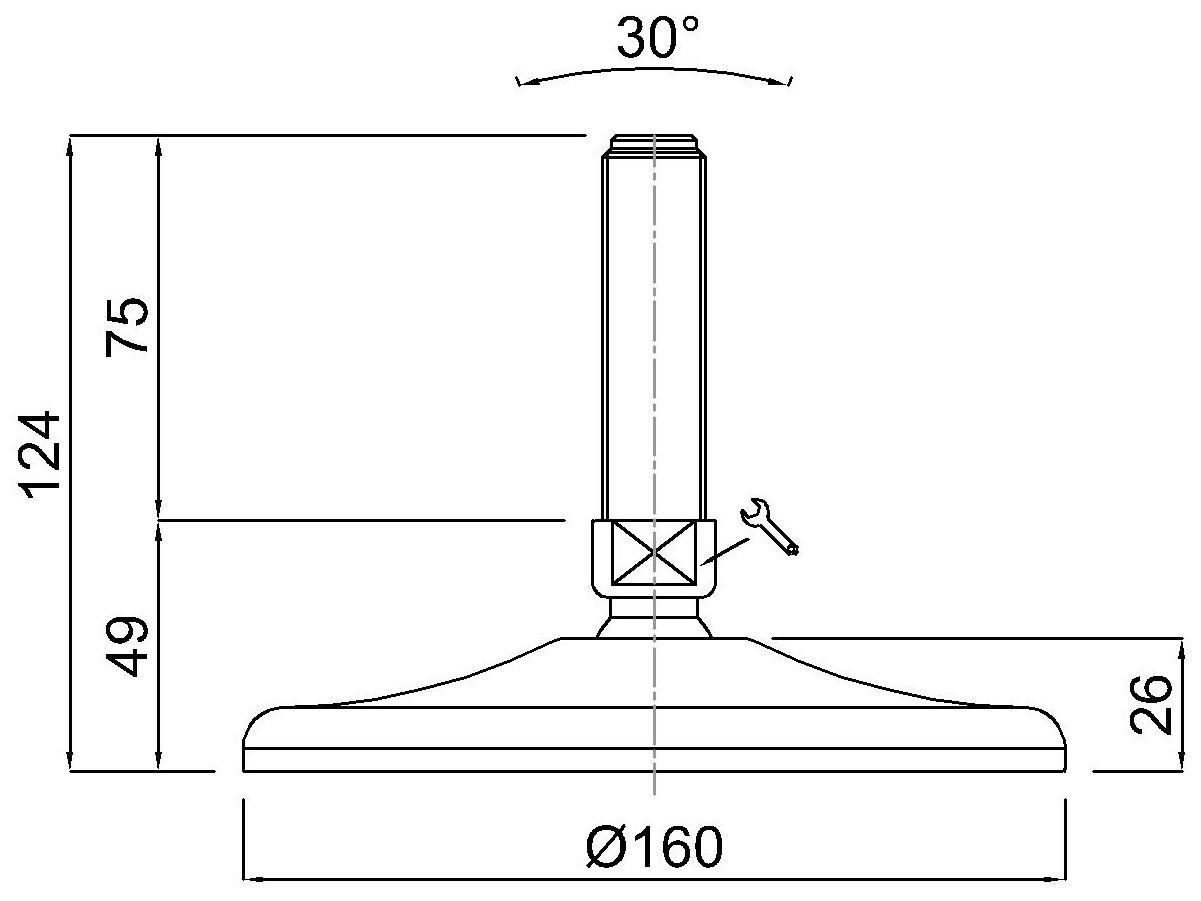

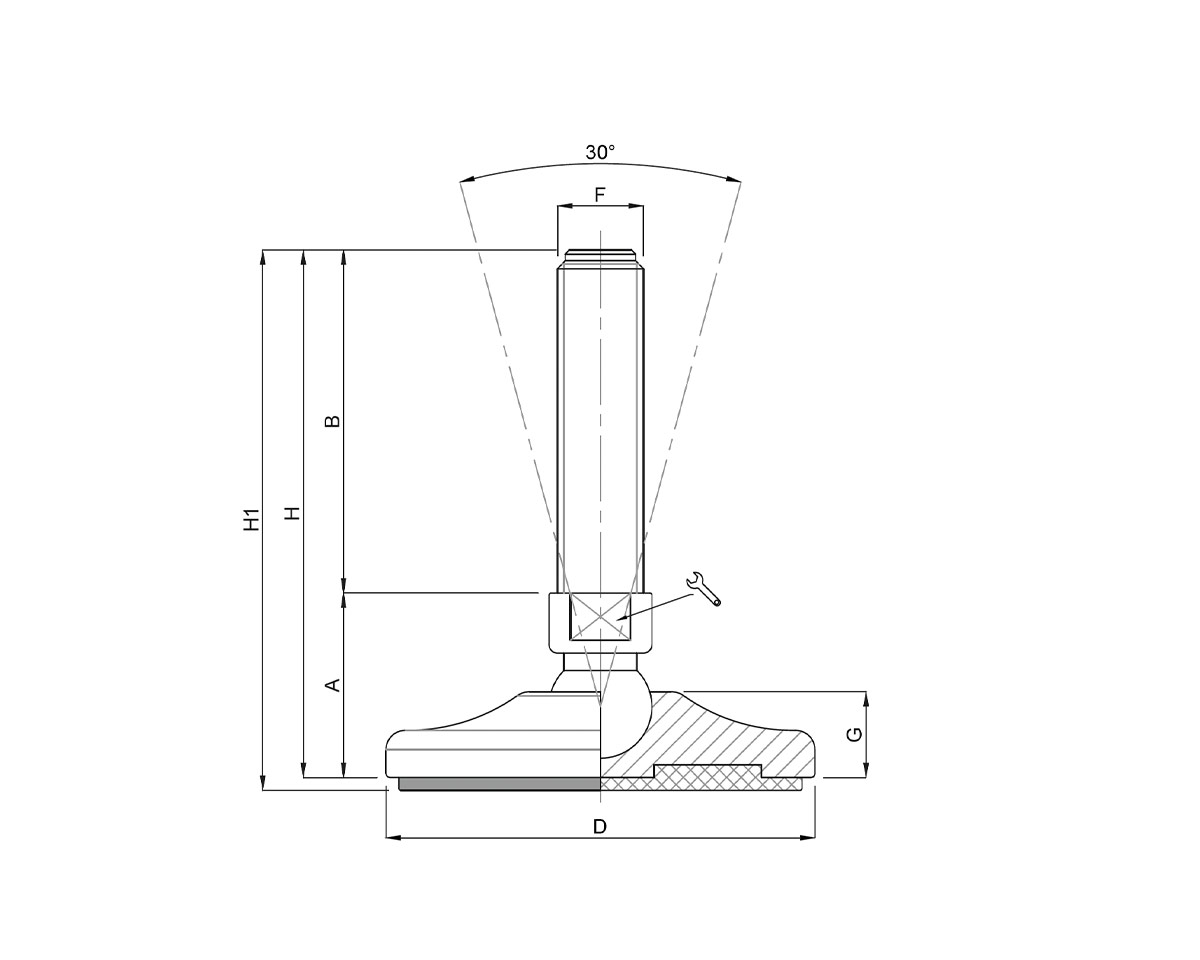

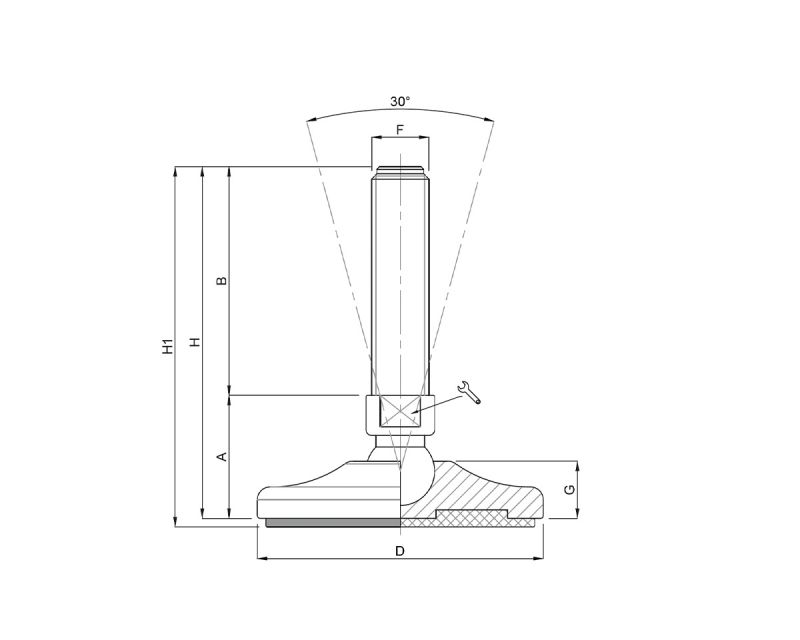

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 75 mm, Stainlees steel, Total height 124 mm, Articulated screw 30°, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
