Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 75 mm, NBR
EAN
4061408098439
Type
45810935
Optimize your equipment stability with the MASSIV Stainless Steel Levelling Foot, featuring a 159 mm diameter, 30° articulated screw, and robust NBR anti-slip base. Static load capacity of 50,000 N ensures reliable support.
| Quantity | Price |
|---|---|
| From 1 |
€95.58*
|
| From 13 |
€89.79*
|
| From 25 |
€84.00*
|
| From 50 |
€79.94*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |

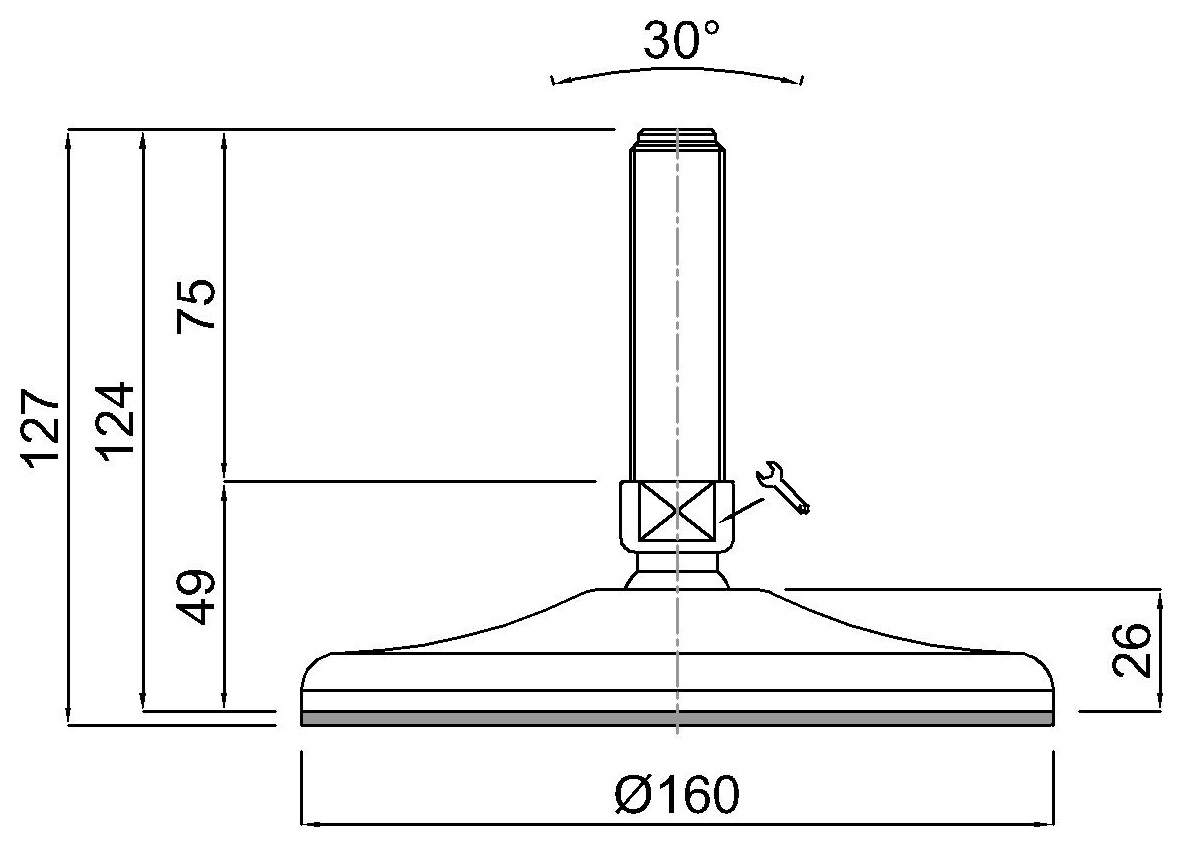

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 75 mm, Stainlees steel, Total height 127 mm, Articulated screw 30°, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
