Levelling foot MASSIV Stainless Steel, Ø 100 mm, M30 x 225 mm, Drills, NBR
EAN
4061408095711
Type
45815220/G
Enhance stability with our MASSIV Stainless Steel Levelling Foot, featuring a 100 mm diameter and adjustable height of up to 258 mm. Engineered for a static load capacity of 35,000 N, it incorporates black NBR anti-slip material and articulated screw for precise leveling. Ideal for rigorous industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€54.33*
|
| From 13 |
€51.04*
|
| From 25 |
€47.75*
|
| From 50 |
€45.44*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 225 |
| Balancing angle: | 5° |

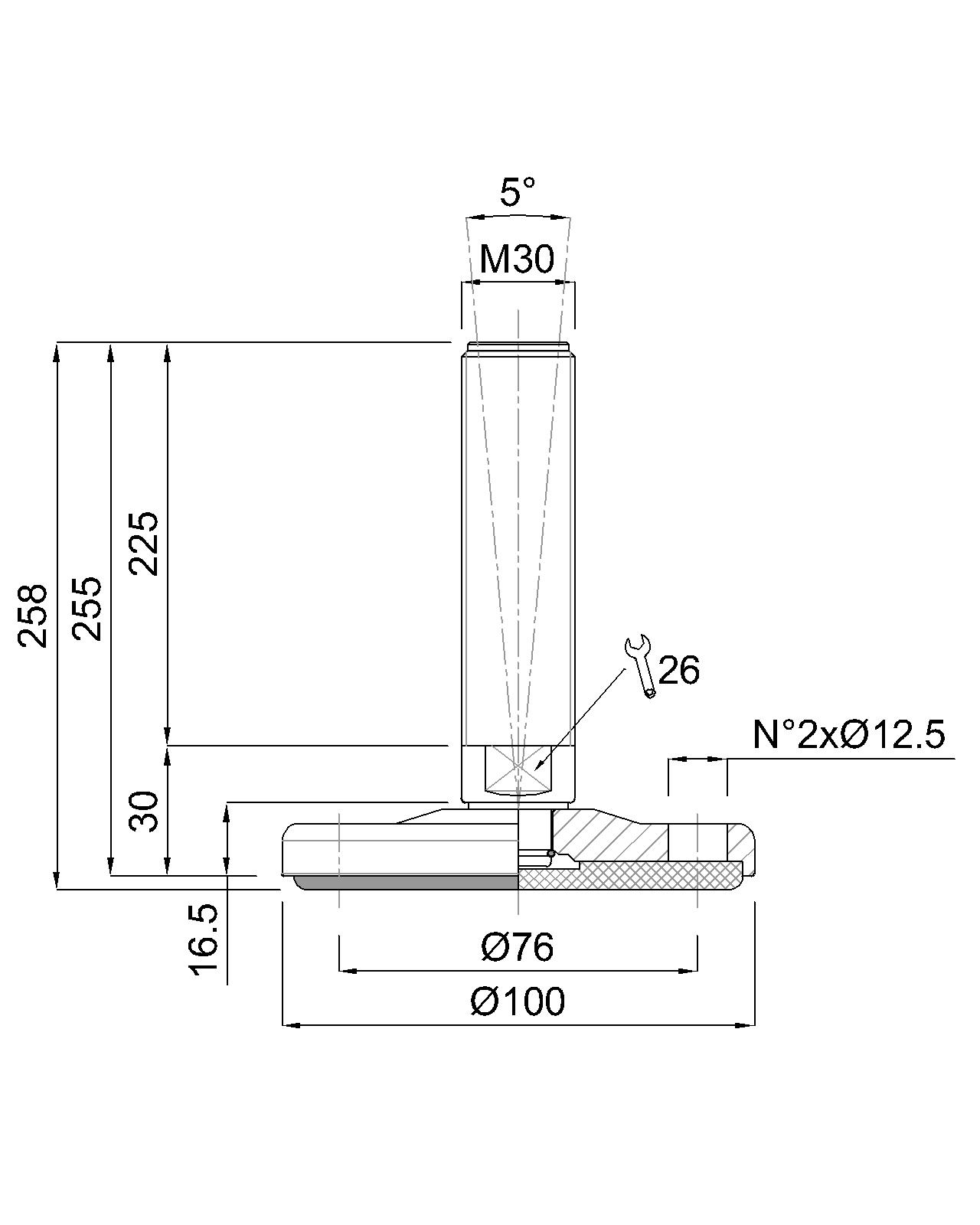

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M30 x 225 mm, Stainlees steel, Total height 258 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
