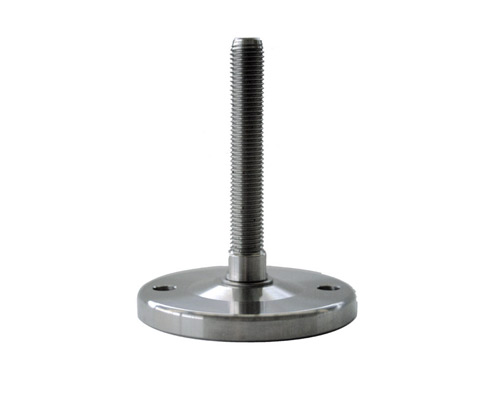

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M30 x 175 mm, Drills, NBR
Discover the MASSIV Stainless Steel Levelling Foot, designed for precision and stability. With a static load capacity of 35,000 N and a 5° articulated screw, ensure optimal support in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€50.42*
|
| From 13 |
€47.37*
|
| From 25 |
€44.31*
|
| From 50 |
€42.17*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 175 |
| Balancing angle: | 5° |

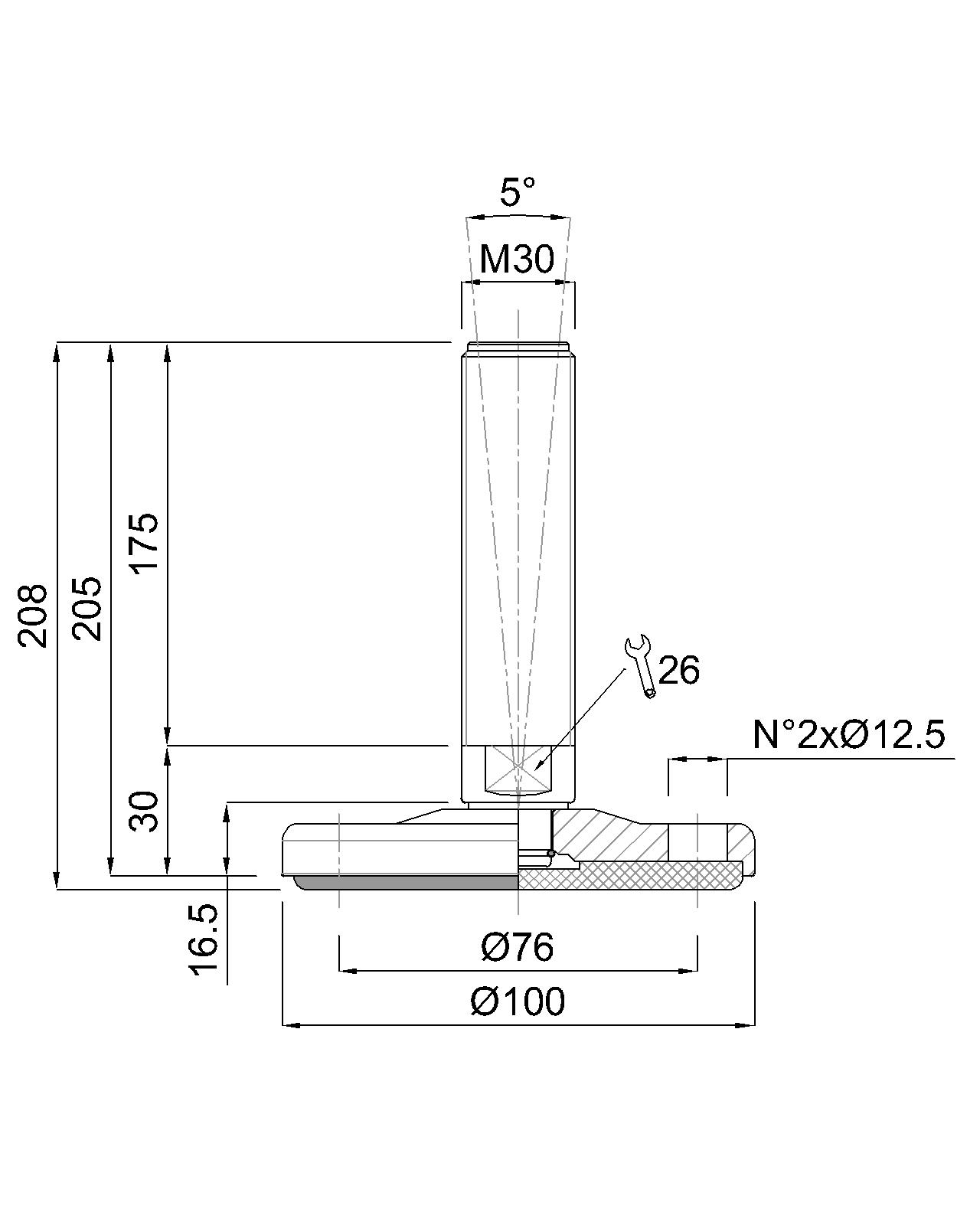

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
