Levelling foot MASSIV Stainless Steel, Ø 100 mm, M16 x 150 mm, Drills, NBR
EAN
4061408095636
Type
45815211/G
Introducing the MASSIV Stainless Steel Levelling Foot: engineered for precision with a Ø 100 mm base, M16 x 150 mm spindle, and an articulated screw angle of 5°. Designed for robust performance with a static load capacity of 30,000 N, featuring NBR anti-slip material for enhanced stability. Ideal for demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€36.37*
|
| From 13 |
€34.16*
|
| From 25 |
€31.96*
|
| From 50 |
€30.42*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |

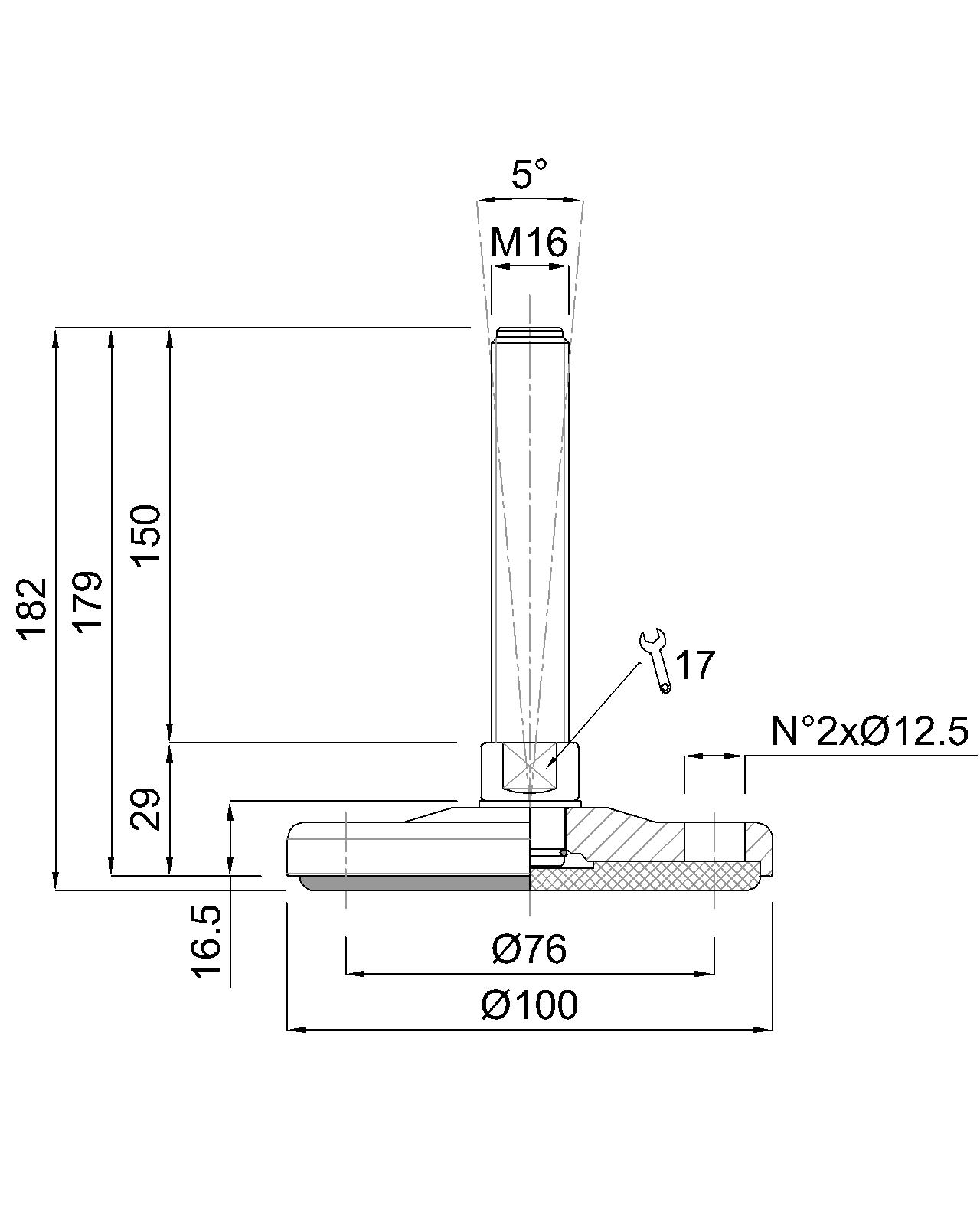

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M16 x 150 mm, Stainlees steel, Total height 182 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
