Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 225 mm, NBR
EAN
4061408095537
Type
45815100
Discover the MASSIV Stainless Steel leveling foot designed for stability and precision. With a 150 mm diameter, M20 x 225 mm thread, and a static load capacity of 50,000 N, it ensures reliable support and anti-slip performance. Ideal for diverse applications requiring robust engineering solutions.
| Quantity | Price |
|---|---|
| From 1 |
€83.56*
|
| From 13 |
€78.49*
|
| From 25 |
€73.43*
|
| From 50 |
€69.88*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 250 |
| Balancing angle: | 5° |

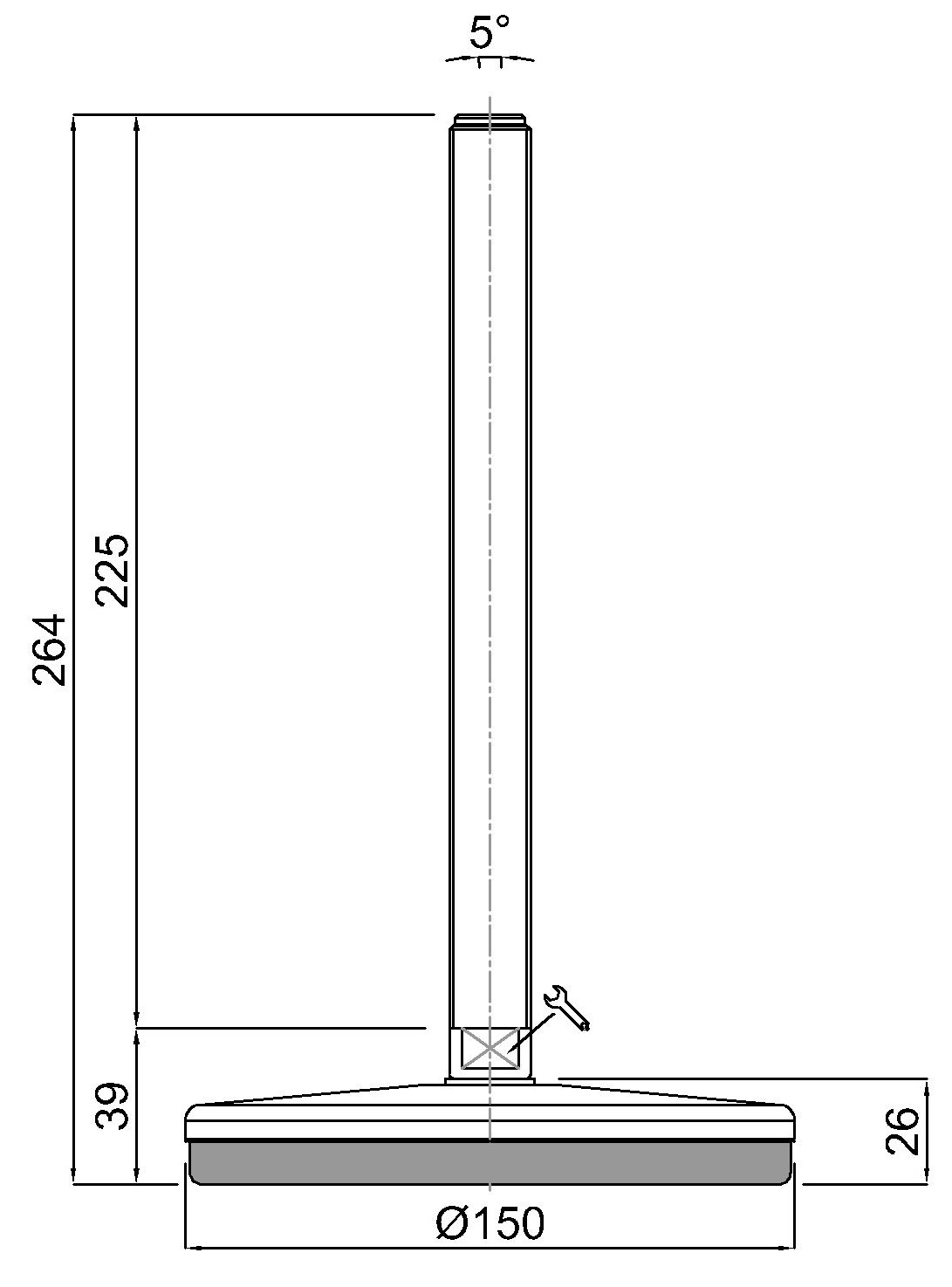

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 225 mm, Stainlees steel, Total height 264 mm, Articulated screw 5°, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
